Jetset with five medium-high main jets suitable for Mikuni VM, TM and TMX carburetors.
The following jet sizes are included in the set: 65, 70, 75, 80, 85
With this selection, the fuel-air mixture of your carburetor can be perfectly tuned.
Note: These carburetor jets for Mikuni carburetors are not only described by the physical size (the diameter of the jet hole) like many other carburetor jets, but by the actual flow rate. This means that the Mikuni size specification refers to the amount of fuel that can flow through the nozzle per unit of time.
So if you are using carburettor jets from different manufacturers, you need to be careful, as other manufacturers may describe the diameter of the jet hole.
| Material | Brass |
| Component group Carburetor | Spraying |
| Quantity | 5 pcs |
| Total length | 11.6 mm |
| Carburetor type | Mikuni (VM, TM, TMX) |
| Nozzle type | Main nozzle |
| Drive | External hexagon |
| Nozzle size | 65, 70, 75, 80, 85 |
| Thread length | 4.7 mm |
| Width across flats | 6 mm |
| Nozzle thread | M5.3x0.9 (standard thread) |
Accessories & related products
MIKUNI 24 mm flat slide carburetor TM24-9 hand choke
Manufacturer: MIKUNI · Component group Carburetor: Carburetor complete · Carburetor type: Flat slide valve · Nominal diameter: 24 mm · Height: 130 mm · Ø Air filter connection: 44 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 130 · Size of secondary nozzle: 51 · Mounting type: Plug connection · Width: 75 mm · Area of application: Tuning
EUR 231.30
NC-Motorparts M5 Jet Set (48–66) Mikuni Replica
Manufacturer: NCMotorparts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 54 · Nozzle size: 56 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Drive: External hexagon · Width across flats: 6 mm
EUR 29.50
NC-Motorparts Jet Set M5 (108–126) Mikuni Replica
Manufacturer: NCMotorparts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 108 · Nozzle size: 110 · Nozzle size: 112 · Nozzle size: 114 · Nozzle size: 116 · Nozzle size: 118 · Nozzle size: 120 · Nozzle size: 122 · Nozzle size: 124 · Nozzle size: 126 · Drive: External hexagon · Width across flats: 6 mm
EUR 29.50
NC-Motorparts Jet Set M5 (130–148) Mikuni Replica
Manufacturer: NCMotorparts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 130 · Nozzle size: 132 · Nozzle size: 134 · Nozzle size: 136 · Nozzle size: 138 · Nozzle size: 140 · Nozzle size: 142 · Nozzle size: 144 · Nozzle size: 146 · Nozzle size: 148 · Drive: External hexagon · Width across flats: 6 mm
EUR 29.50
Nozzle set M5.3 (190 - 210) "half-height" | Mikuni VM, TM, TMX
Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Main nozzle · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 190 · Nozzle size: 195 · Nozzle size: 200 · Nozzle size: 205 · Nozzle size: 210 · Total length: 11.6 mm · Thread length: 4.7 mm · Drive: External hexagon · Width across flats: 6 mm
EUR 27.20
Nozzle set M5.3 (165 - 185) "half-height" | Mikuni VM, TM, TMX
Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Main nozzle · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 165 · Nozzle size: 170 · Nozzle size: 175 · Nozzle size: 180 · Nozzle size: 185 · Total length: 11.6 mm · Thread length: 4.7 mm · Drive: External hexagon · Width across flats: 6 mm
EUR 27.20
Nozzle set M5.3 (140 - 160) "half-height" | Mikuni VM, TM, TMX
Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Main nozzle · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 140 · Nozzle size: 145 · Nozzle size: 150 · Nozzle size: 155 · Nozzle size: 160 · Total length: 11.6 mm · Thread length: 4.7 mm · Drive: External hexagon · Width across flats: 6 mm
EUR 27.20
Nozzle set M5.3 (115 - 135) "half-height" | Mikuni VM, TM, TMX
Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Main nozzle · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 115 · Nozzle size: 120 · Nozzle size: 125 · Nozzle size: 130 · Nozzle size: 135 · Total length: 11.6 mm · Thread length: 4.7 mm · Drive: External hexagon · Width across flats: 6 mm
EUR 27.20
Nozzle set M5.3 (90 - 110) "half-height" | Mikuni VM, TM, TMX
Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Main nozzle · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 90 · Nozzle size: 95 · Nozzle size: 100 · Nozzle size: 105 · Nozzle size: 110 · Total length: 11.6 mm · Thread length: 4.7 mm · Drive: External hexagon · Width across flats: 6 mm
EUR 27.20
Moped fans also bought
Magura cable clamp Ø 8 x 15 mm
Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Screw head: Hexagon · Total length: 15 mm · Thread type: M6x1 (standard thread) · Thread length: 7 mm · Drive: External hexagon · Drive: Slot · Width across flats: 7 mm · Ø outside: 8 mm · Area of application: Standard
EUR 2.95
Hot
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Surface: galvanized (blue) · Nipple shape: Cylinder · Nipple length: 5 mm · Cable length: 2200 mm
EUR 2.85
Starter cable Ø 1.5 mm x 140 cm | Puch X30 NG, 2AH, Maxi S-2A, L, Supermaxi LG2
Ø Stranded wire: 1.5 mm · Nipple shape: Barrel (transverse) · Ø nipple: 5.2 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 1400 mm · Area of application: Standard · Nipple length: 6.8 mm
EUR 3.10
GPO pedal crank right chrome 153 mm strong cranked
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 153 mm · Crank length (center-center): 123 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 40 mm · Thread type: FG14.3 (9/16" 20G)
EUR 35.50
Not in stock
GPO pedal cranks chrome 153 mm strong cranked
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Crank length (center-center): 123 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 40 mm · Thread type: FG14.3 (9/16" 20G) · Total length: 153 mm
EUR 59.20
Not in stock

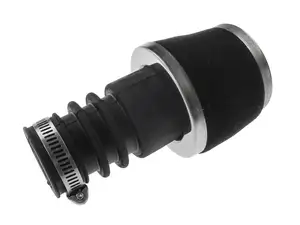

Mushroom air filter foam black, Dell'Orto PHBG (Ø=32 mm)
