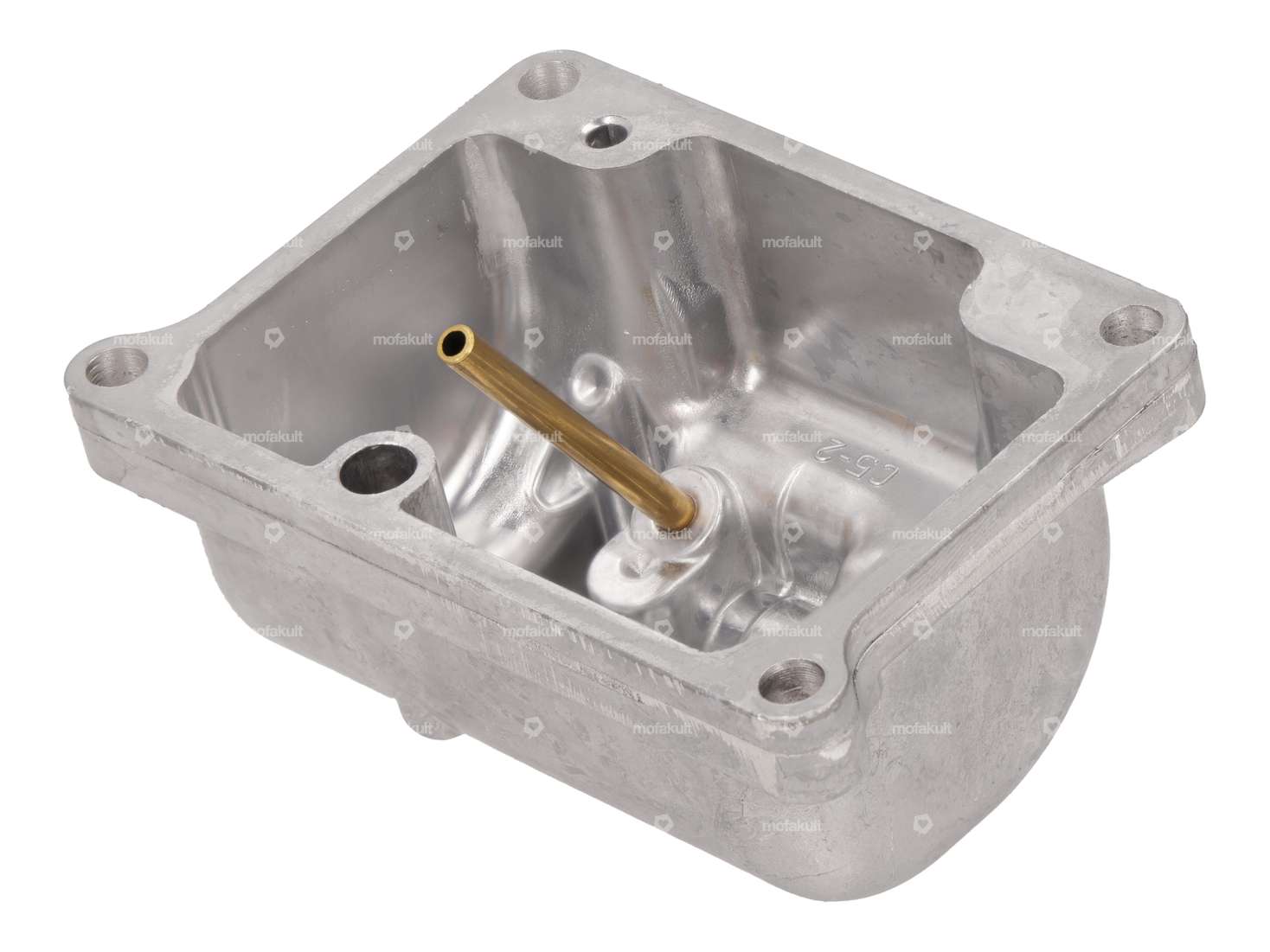

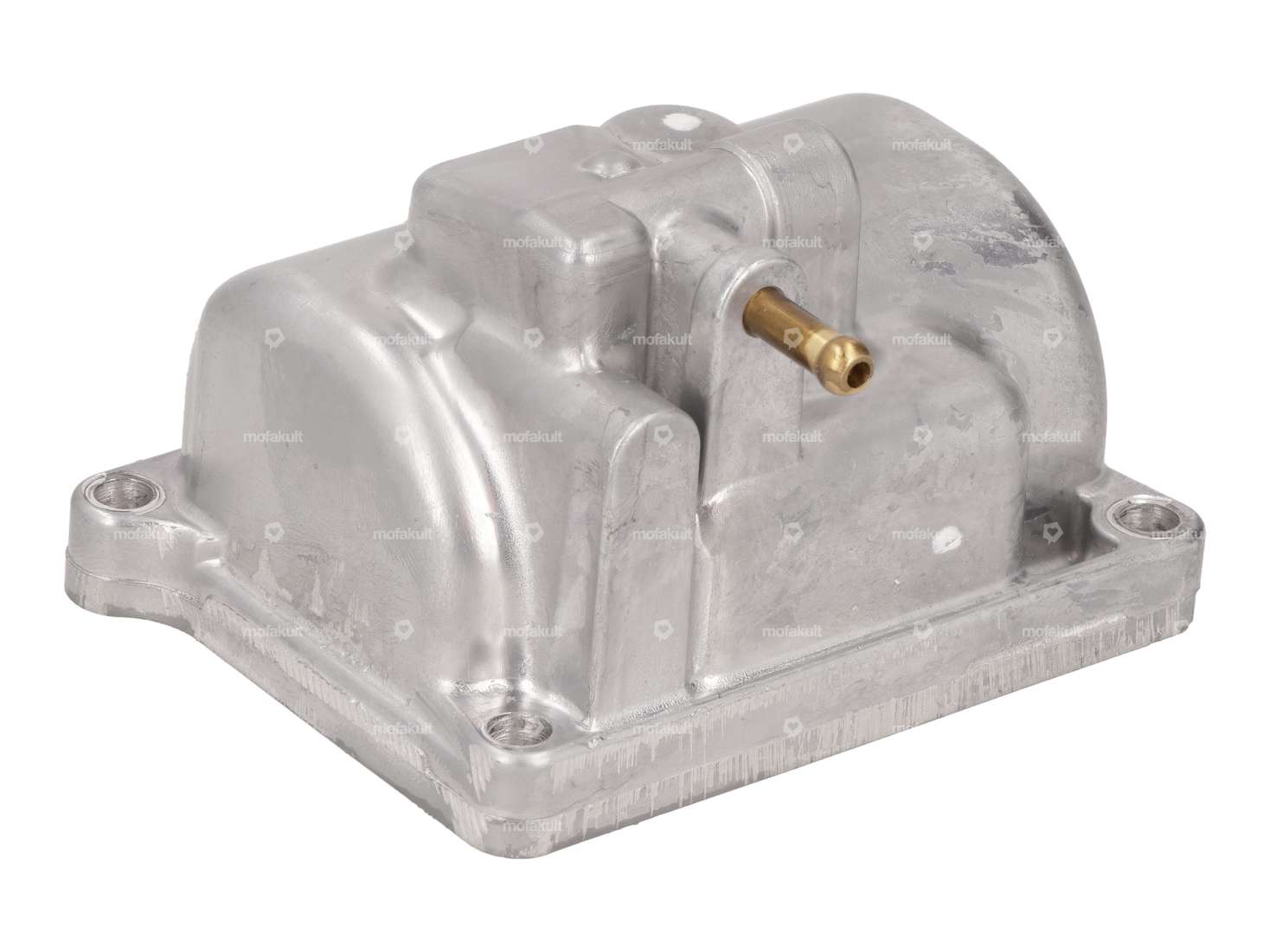

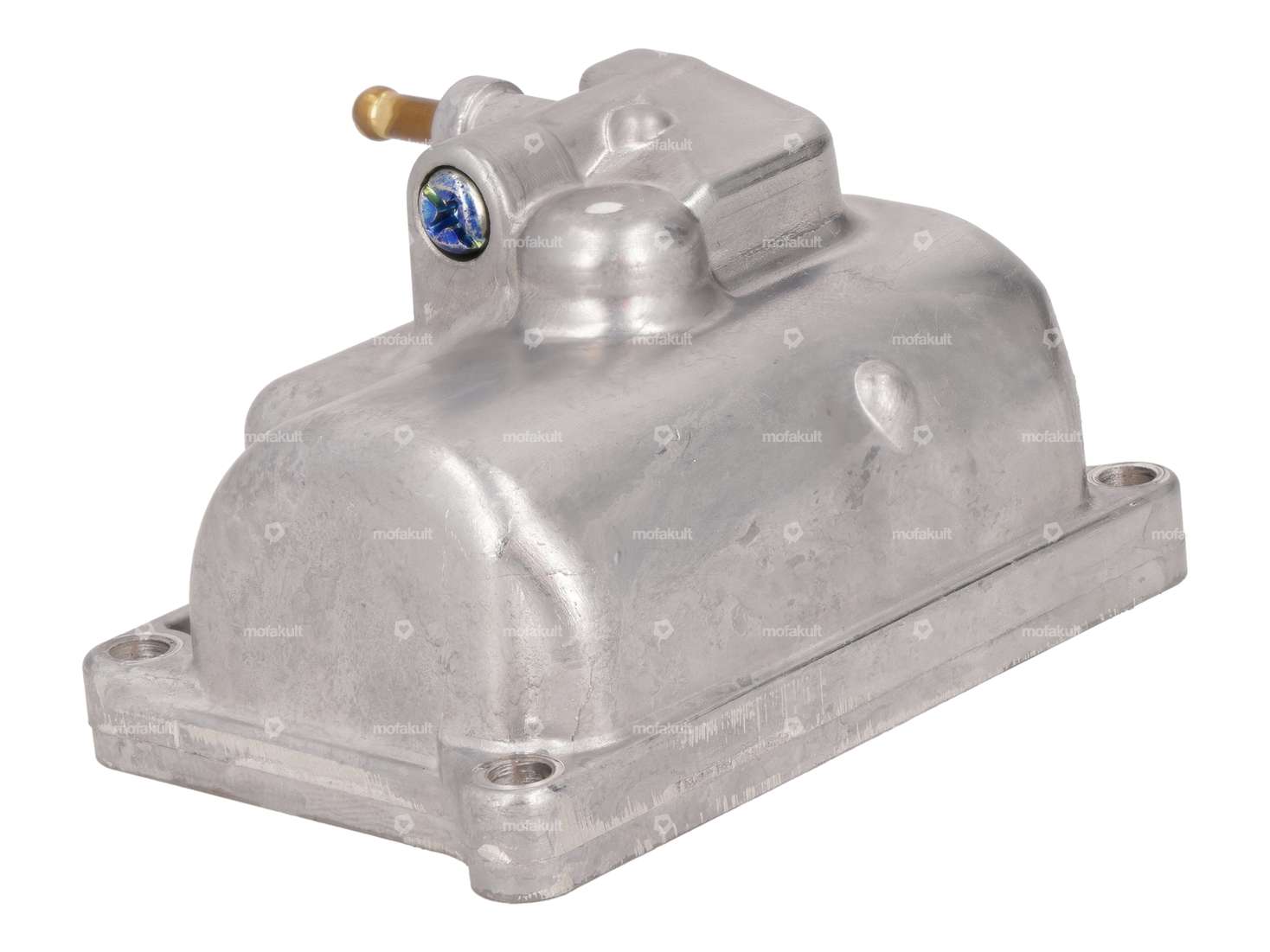

MIKUNI float chamber carburetor TM24-9

MIKUNI 24 mm flat slide carburetor TM24-9 hand choke

Width: 75 mm · Manufacturer: MIKUNI · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: Flat slide valve · Choke control: Hand choke · Nominal diameter: 24 mm · Nozzle thread: M5.3x0.9 (standard thread) · Ø fuel hose connection: 6 mm · Ø Air filter connection: 44 mm · Height: 130 mm · Mounting type: Plug connection · Nozzle size: 130 · Size of secondary nozzle: 51

MIKUNI float chamber with adjusting nozzle

Manufacturer: MIKUNI · Material: Aluminum · Component group Carburetor: Adjusting screws, float, etc. · Thread type: M4x0.7 (standard thread) · Carburetor type: Mikuni (VM, TM, TMX) · Number of fixing points: 4 pcs

MIKUNI gasket float carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Thickness: 0.9 mm · Total length: 73 mm · Width: 48 mm

MIKUNI sealing ring screw float chamber carburetor TM24-9

Manufacturer: MIKUNI · Material: Fiber · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Thickness: 0.4 mm · Ø inside: 6 mm · Ø outside: 8 mm

MIKUNI gasket cover carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Ø inside: 15 mm · Total length: 49.5 mm · Cord thickness: 1 mm · Width: 25 mm

MIKUNI gasket carburetor halves carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Ø inside: 0.6 mm · Total length: 68.3 mm · Width: 59.5 mm
