logo_meteor-piston-mk

For: Sachs

11669

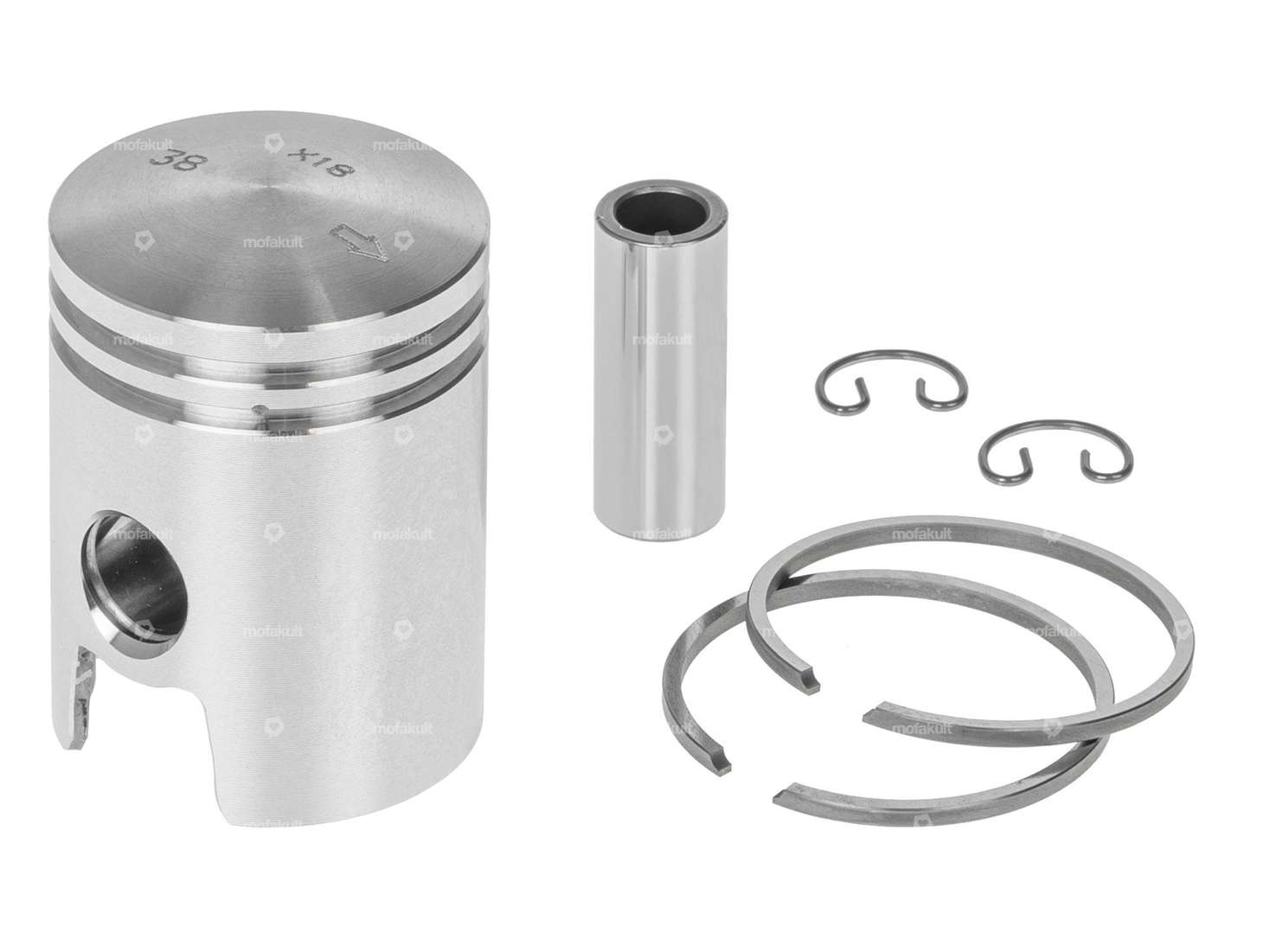

Meteor piston 38.6 mm oversize | Sachs 50/2 & 503

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 59.20

Incl. 21% VAT.

Description

38.6 mm ¨bermass piston with 2 pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)38.55 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)53 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit84 g
Pony OEM numberA2774, A4359
Sachs OEM no.0286 377 012, 0286 378 006
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

503 - AAL , ABL , 2AL / 2BL
