37.97 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 504/2 ACH and 504/1 ACH mopeds / mopeds.

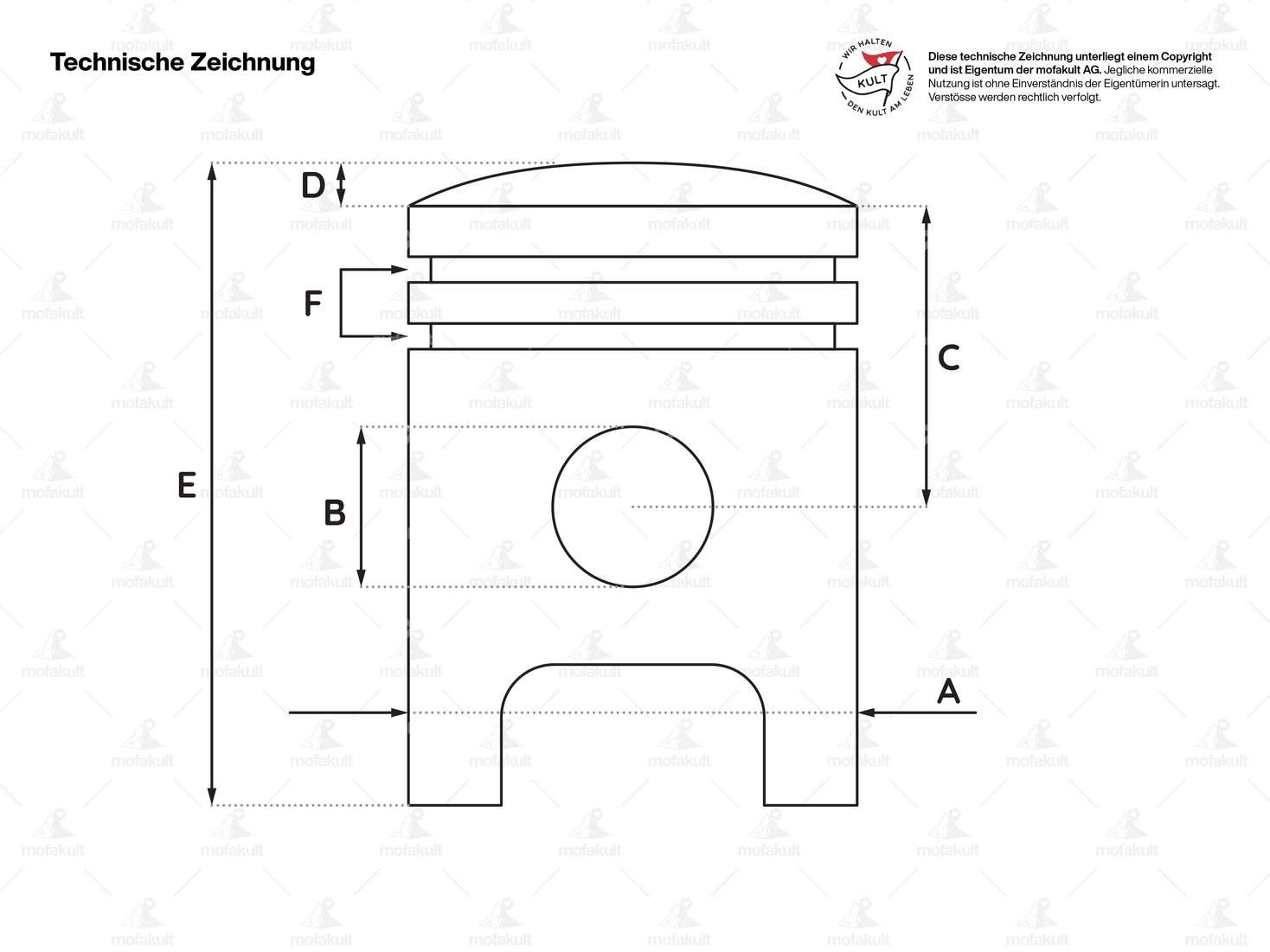

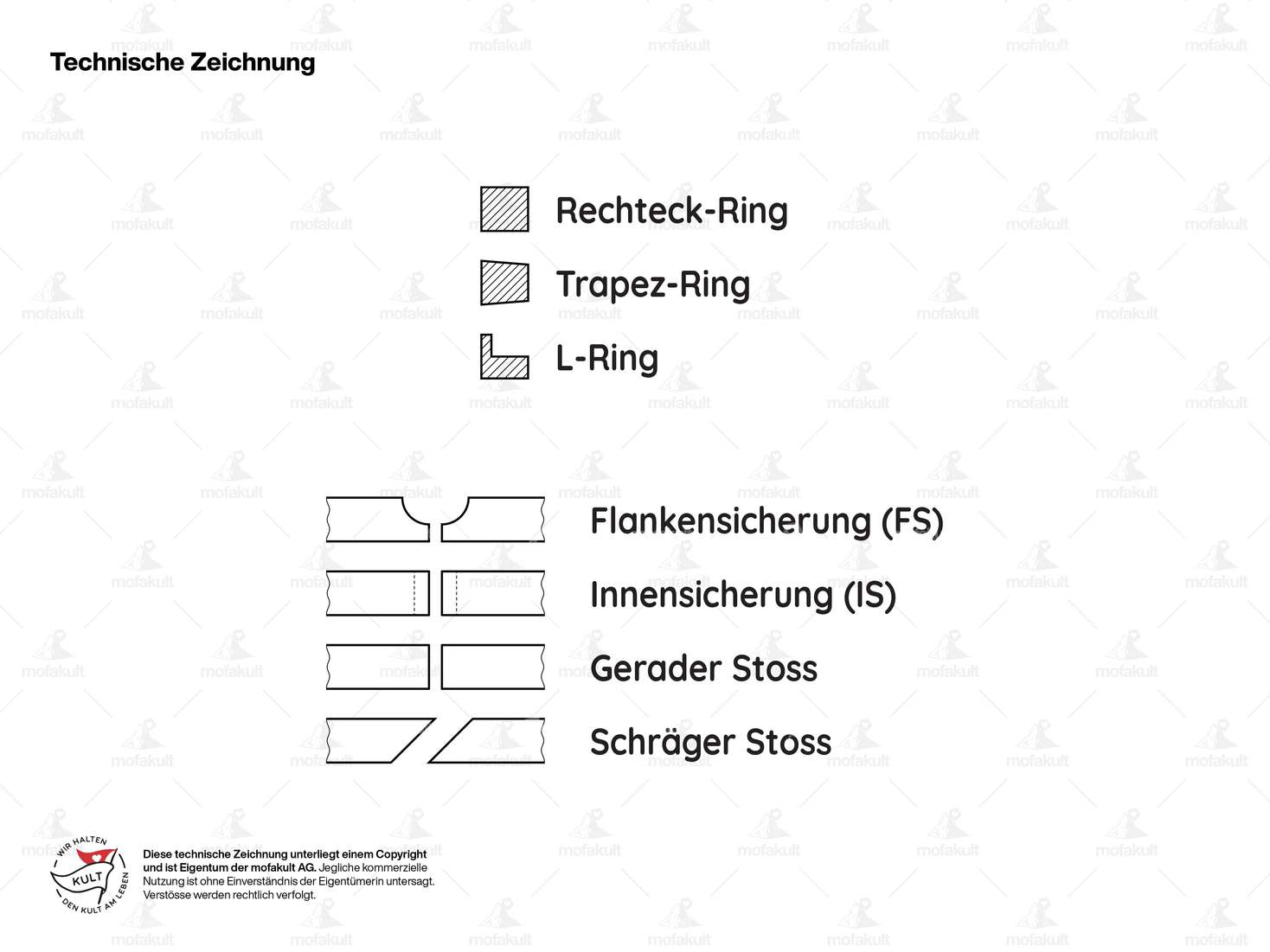

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
Tolerance type: A

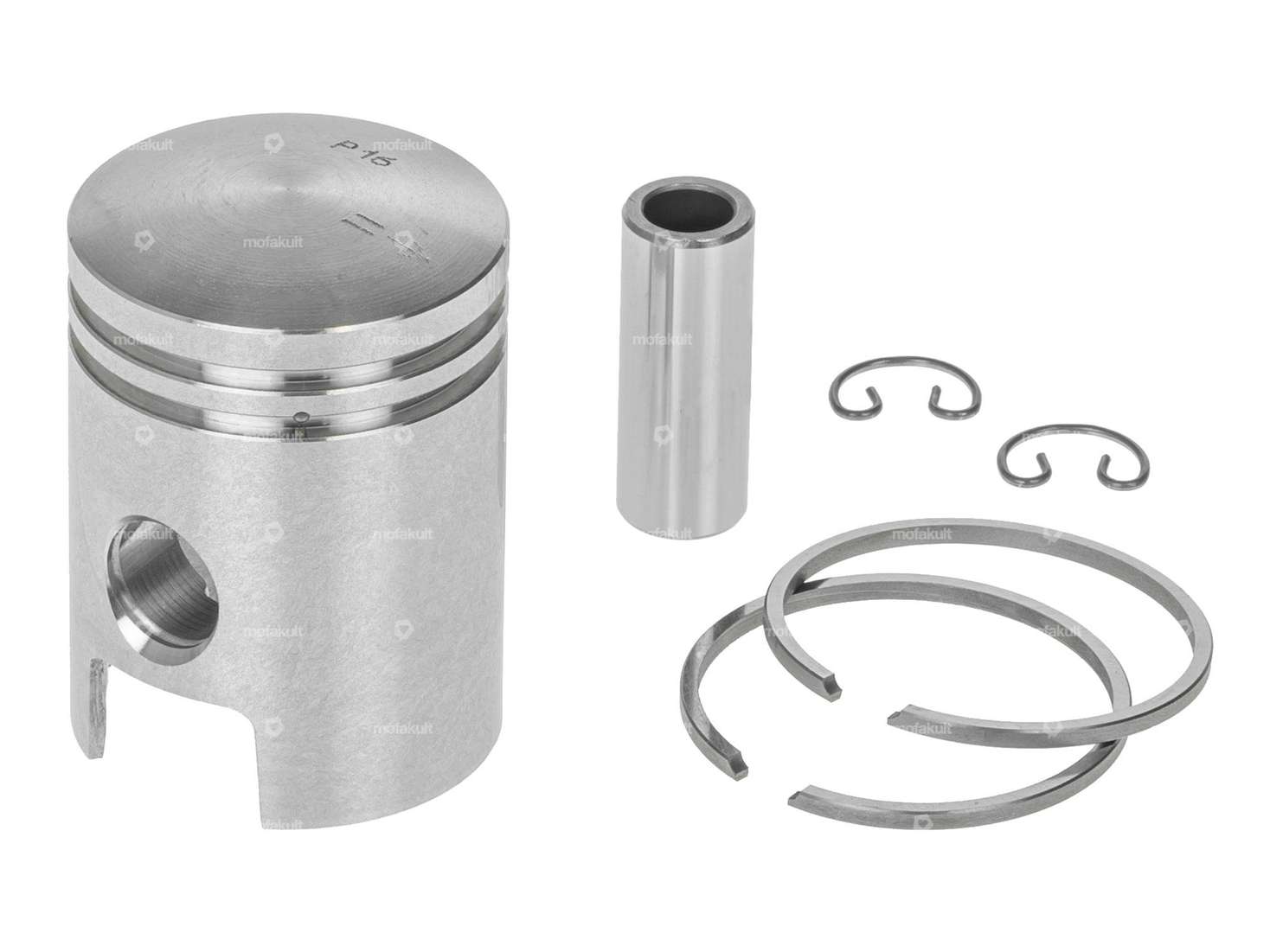

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Original Sachs spare part number: A4358
Quality product from the Italian manufacturer Meteor.
Nominal diameter | 38 mm |
Manufacturer | Meteor |
Ø outside piston (A) | 37.97 mm |
Compression height (C) | 28 mm |
Curvature (D) | 3 mm |
Total piston height (E) | 53 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | Rectangular ring |
Ø piston pin (B) | 12 mm |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Piston weight | 78 g |
Sachs | 504 (without pedal shaft) |
