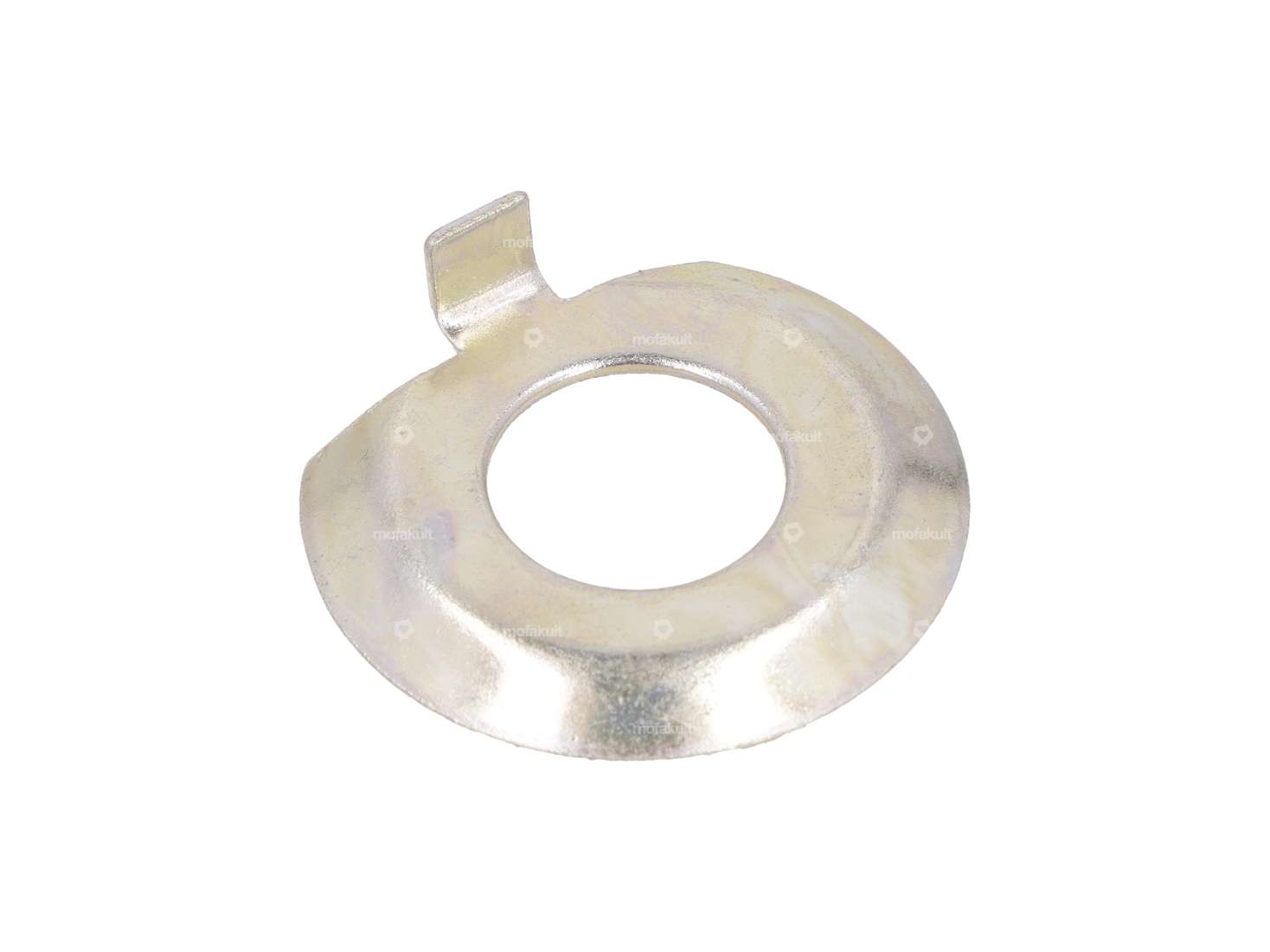

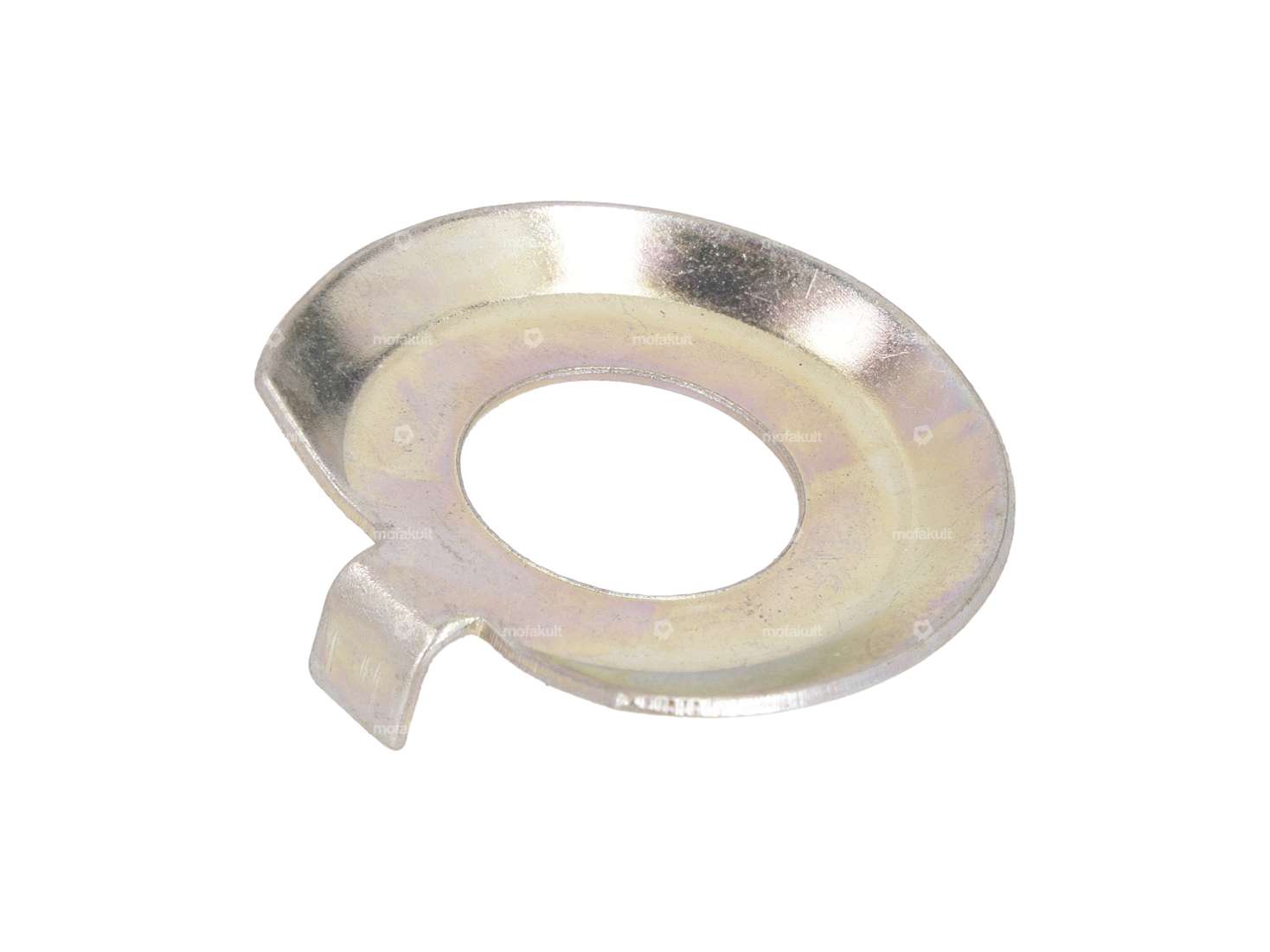

Security plate for securing the nut on the drive shaft of the splined gearbox to fit your Piaggio Ciao C9 or Boxer moped / moped of the first series.
The lock washer is used to reliably secure the nut on the axle shaft.
The matching hexagon nut, freewheel hub and drive shaft can be found in the accessories section.
Original Piaggio spare part number: S.3060
| Ø inside | 12.6 mm |
| Manufacturer | Made in Italy |
| Material | Steel |
| Surface | galvanized (blue) |
| Nominal diameter (thread) | 12 mm |
| Number of lobes | 1 pcs |
| Ø outside | 28.6 mm |
| Thickness | 0.85 mm |
| Piaggio OEM number | S.3060 |
| Piaggio | Ciao - P Boxer |
Accessories & related products
swiing® revival nut left-hand thread M12x1.25 splined gearbox | Piaggio Ciao C9, P
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Height: 7.8 mm · Nominal diameter (thread): 12 mm · Drive: External hexagon · Width across flats: 21 mm · Thread depth: 7.8 mm · Thread type: MF12x1.25 (fine pitch thread) · Piaggio OEM number: 5.20110
EUR 14.10
