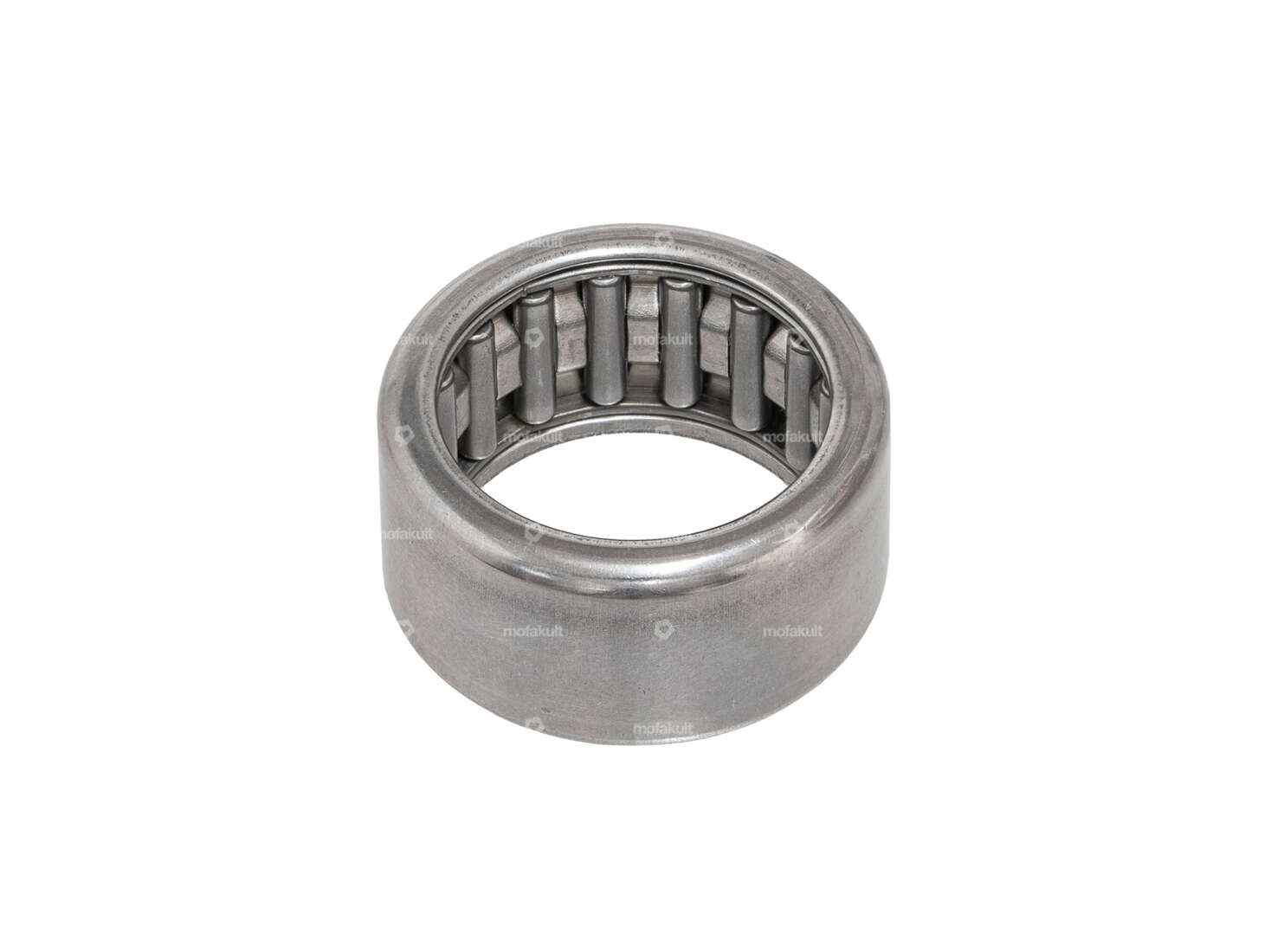

Needle bearing for the pully input shaft of the mono gearbox suitable for your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The needle roller and cage assembly is installed in the gearbox cover. The bearing is open on both sides.
Quality product from the Japanese manufacturer Koyo.
Original Piaggio spare part number: 103696
| Bearing type | Needle sleeve |
| Stock number | HK1712 |
| Ø outside | 23 mm |
| Manufacturer | Koyo |
| Ø inside | 17 mm |
| Bearing cage | Sheet steel cage |
| Dimension needle bearing | 17/23 x 12 |
| Width | 12 mm |
| Piaggio OEM number | 103696 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
