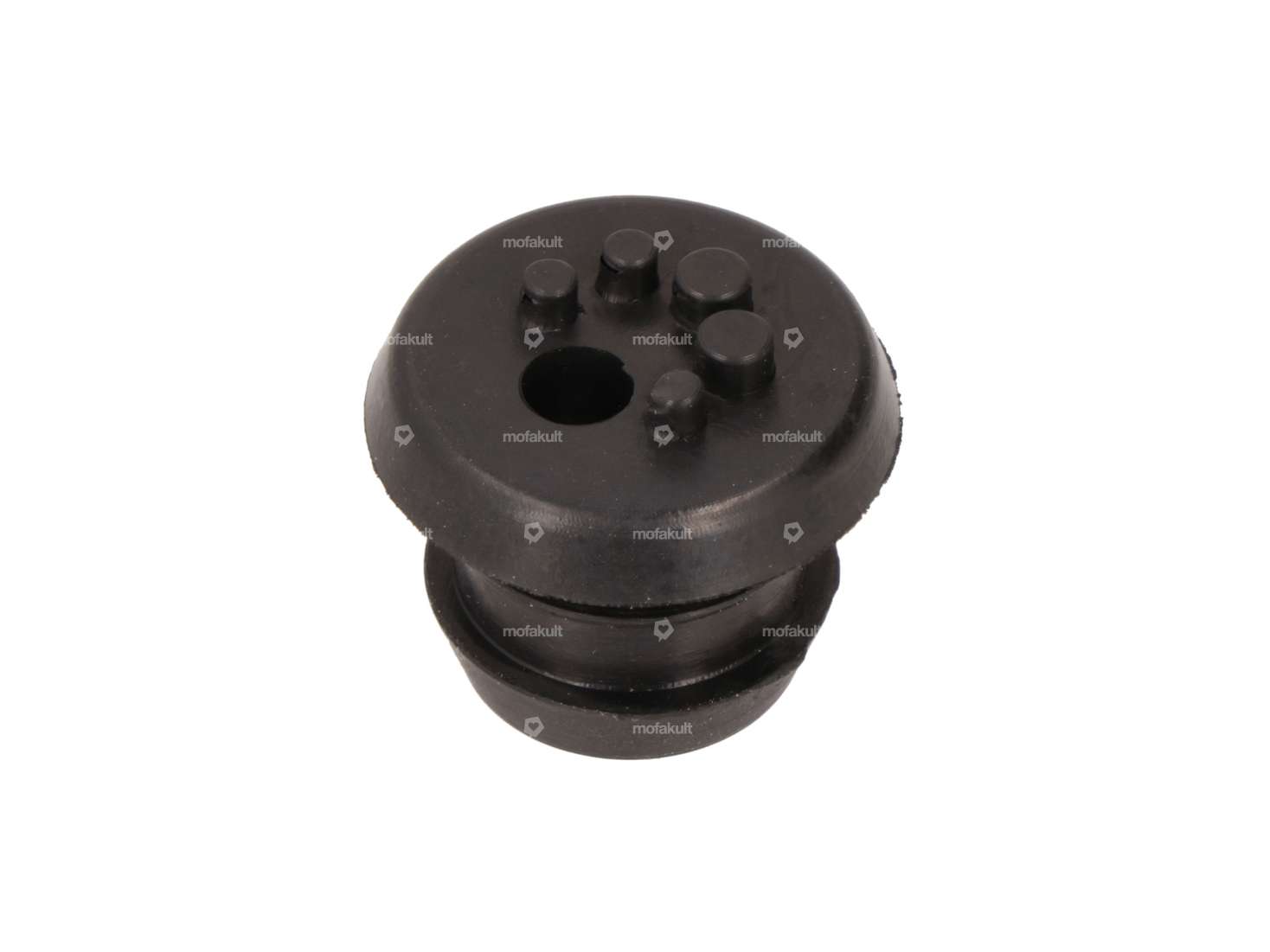

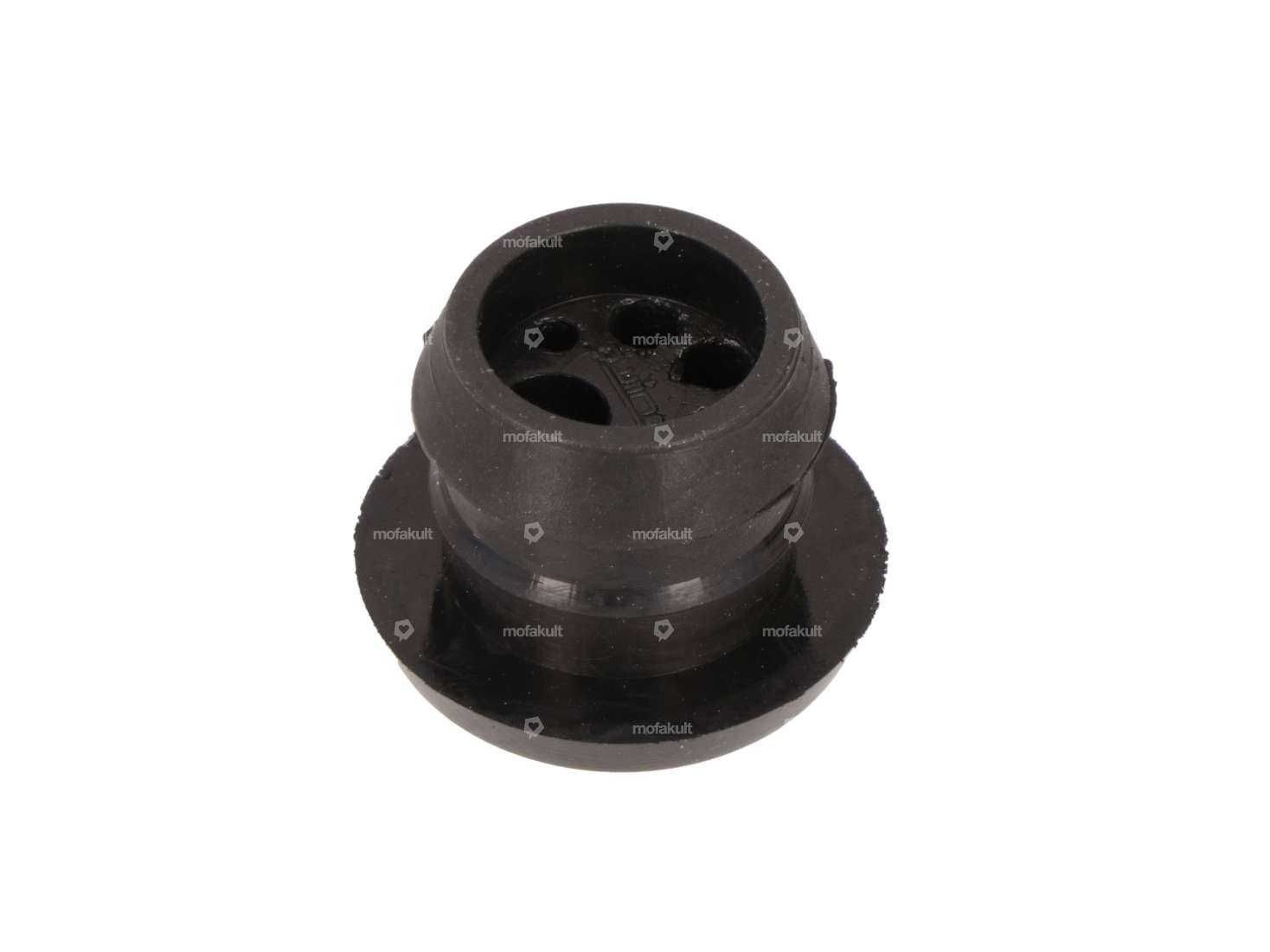

Ignition rubber | Puch ZA50

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Color: black · Ø outside: 16.4 mm · Total length: 25 mm · Ø mounting hole: 11 mm · Clamping diameter: 13 mm · Puch OEM number: 364.2.10.660.1

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Number of fixing points: 2 pcs · Mounting type: Plug connection · Hole spacing: 63 mm · Total length: 74 mm · Height: 12.5 mm · Color: black

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Reserve level: 70 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO ignition plate 90 mm Bosch / DUCATI

Manufacturer: GPO · Material: Aluminum · Area of application: Original · Area of application: Standard · Tension: 6 V · Ø inside: 18.5 mm · Ø outside: 90 mm · Cable length: 400 mm · Cable length: 500 mm · Number of cables: 3 pcs · Ø bolt circle: 80 mm · Number of fixing points: 4 pcs

GPO light switch with wiring harness base chrome version

Total length: 50 mm · Color: Chrome · Manufacturer: GPO · Material: Plastic · Housing material: Steel · Surface: chrome-plated · Substructure material: Steel · Width: 30 mm · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Height: 25 mm · Cable length: 970 mm · Number of positions: 3 pcs · Cable bifurcation to motor: 970 mm · Cable bifurcation to lamp: 180 mm · Cable bifurcation to switch: 420 mm · Number of cables: 5 pcs · Ø Handlebars: 22 mm

16 mm circlip

Fuse type: Outside · Material: Spring steel · Place of use: Universal · Nominal diameter: 16 mm

16 mm circlip pinion attachment Puch

Nominal diameter: 16 mm · Fuse type: Outside · Manufacturer: Puch

M10 sealing ring 10.2/16/1.5 oil drain plug | Puch Supermaxi LG2 (Cat)

Manufacturer: Puch · Material: Fiber · Ø inside: 10.2 mm · Ø outside: 16 mm · Thickness: 1.5 mm
