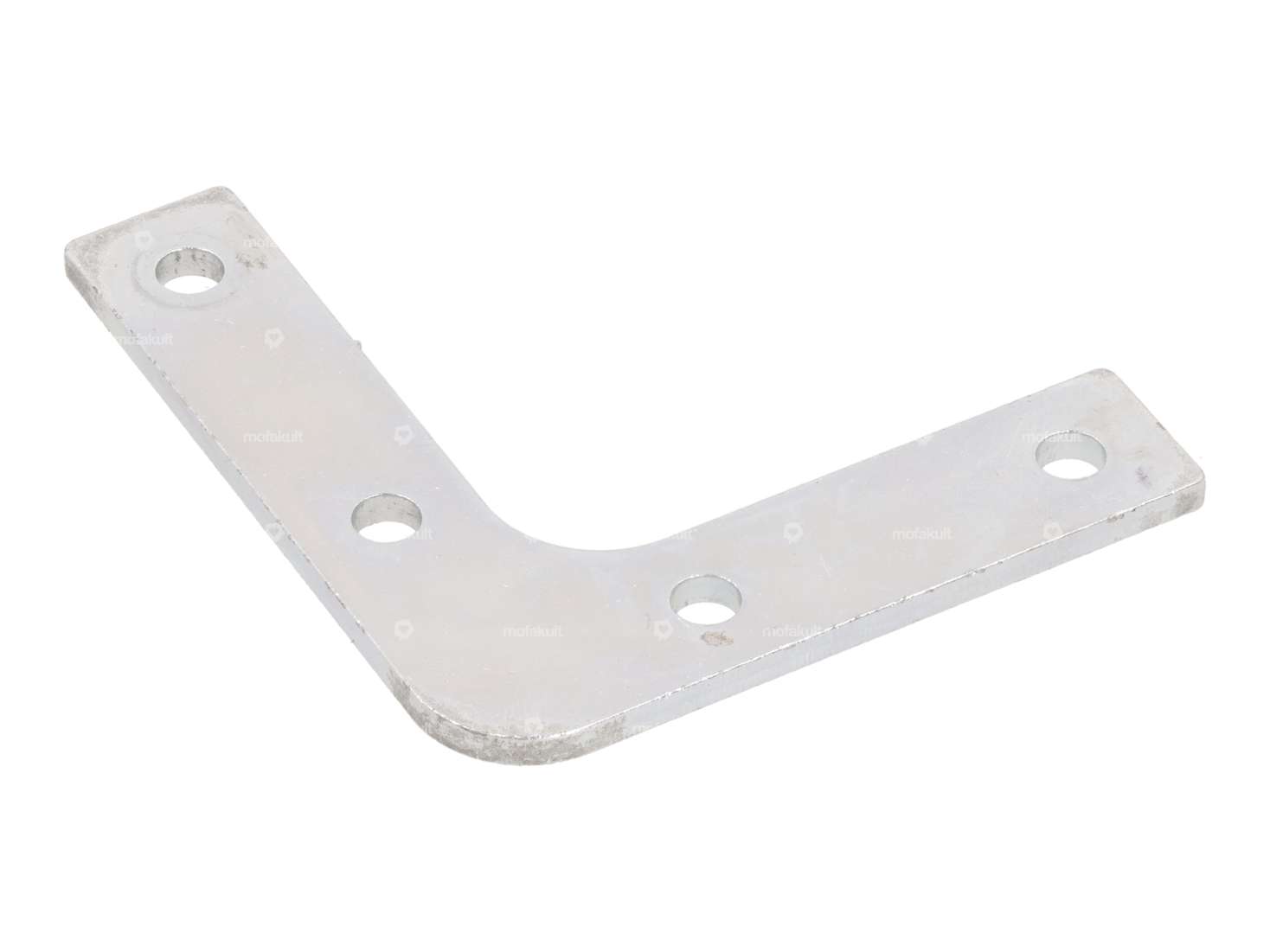

Coil holder for CDI mounting plate (item 32105) for your Piaggio Ciao C9 and P moped / moped.
In early years, the external ignition coil was placed inconveniently under the carburetor. This led to problems in the rain, as it was not sufficiently protected against splash water.
With this additional coil holder, the ignition coil can be placed under the right-hand side guard in combination with the CDI holder.
Dimension: 68x65x3 mm
Hole spacing: 33 mm
Ø mounting hole: 5.3 mm
Material: Steel, galvanized

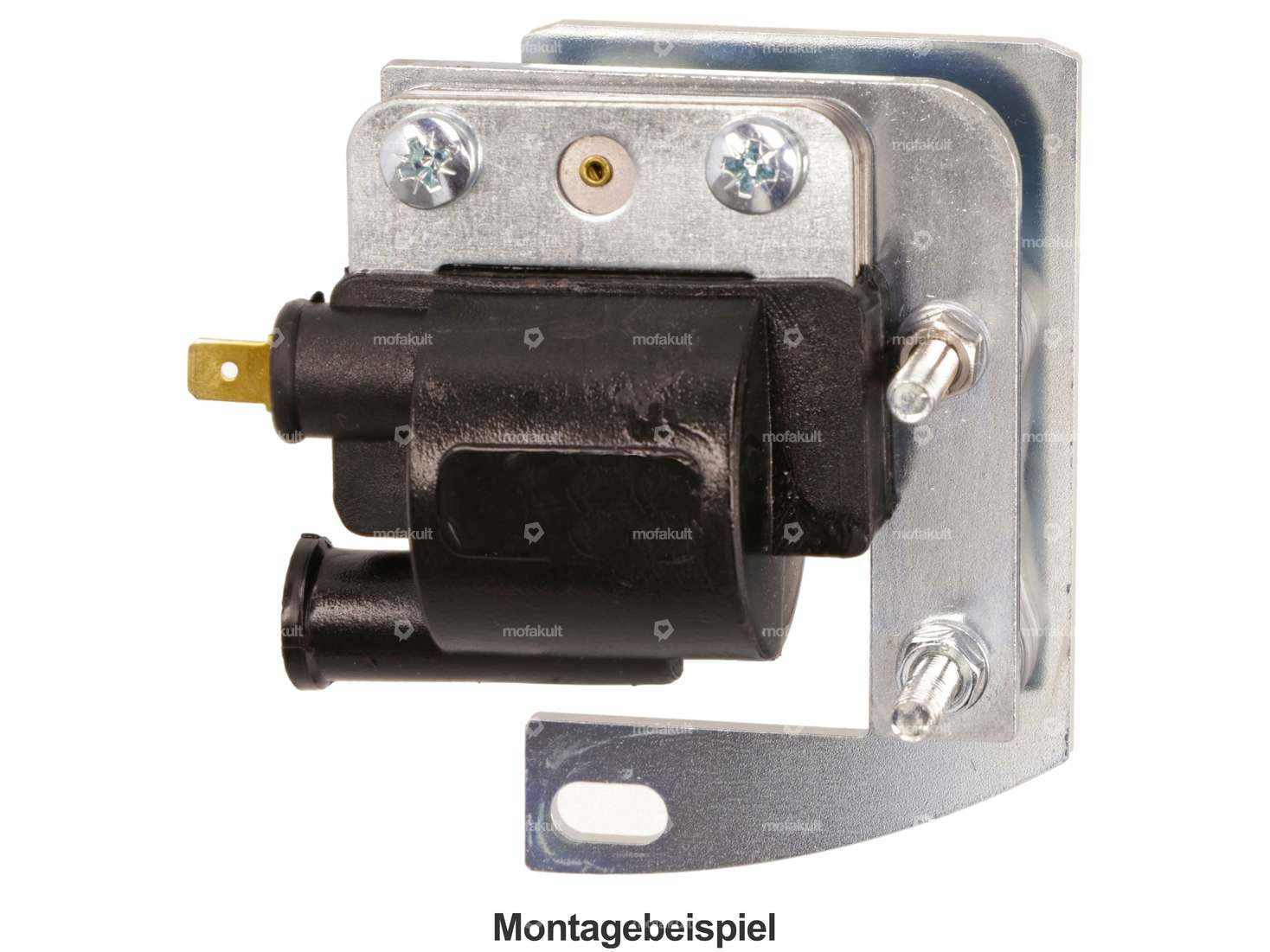

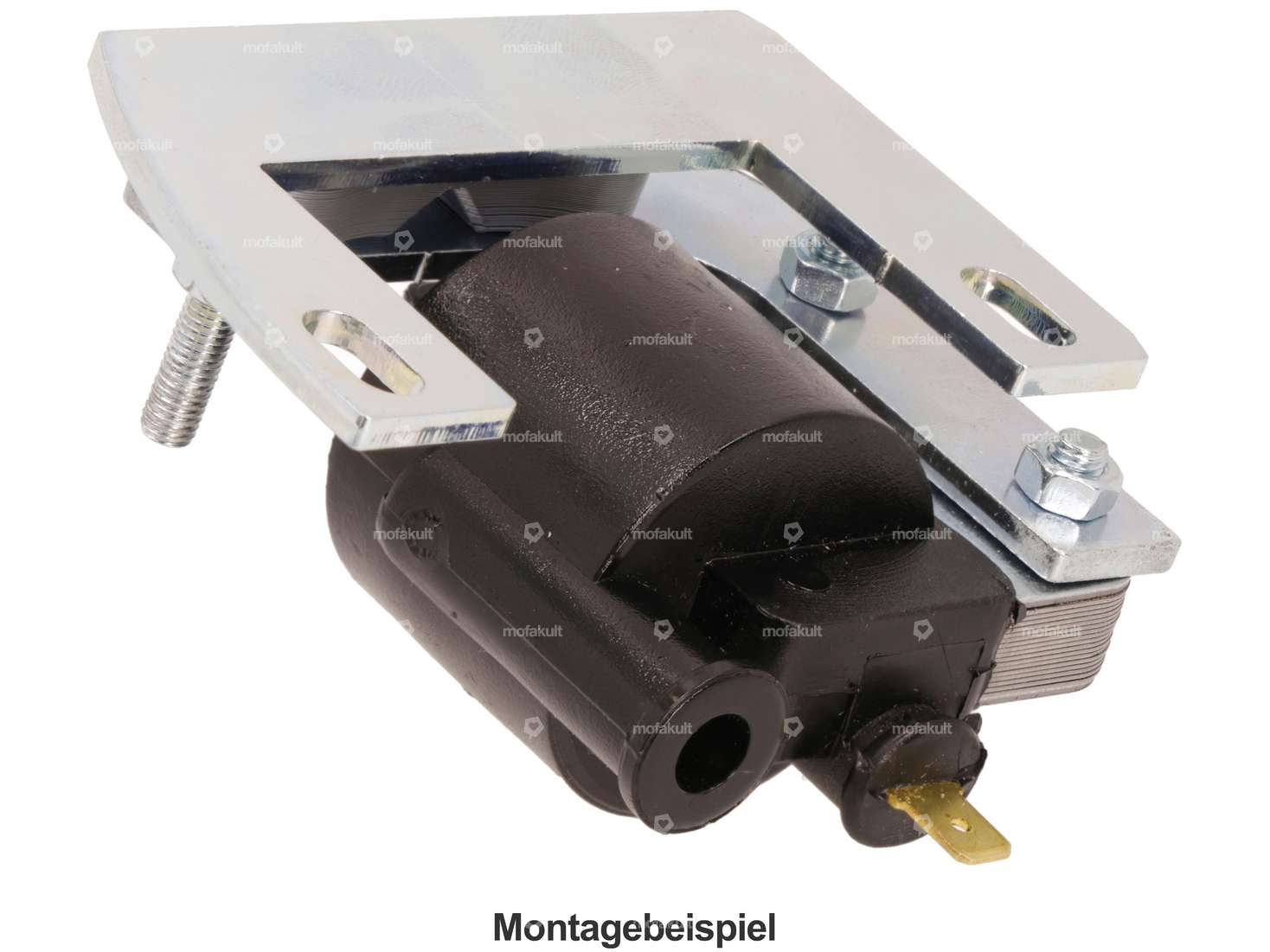

Figures 2 and 3 serve as an application example.
You can find the CDI holder plate in the accessories section.
| Ø mounting hole | 5.3 mm |
| Place of use | External (outside the ignition) |
| Area of application | Standard |
| Height | 65 mm |
| Hole spacing | 33 mm |
| Total length | 68 mm |
| Number of fixing points | 4 pcs |
| Mounting type | Nuts & bolts |
| Piaggio | Ciao - P |
