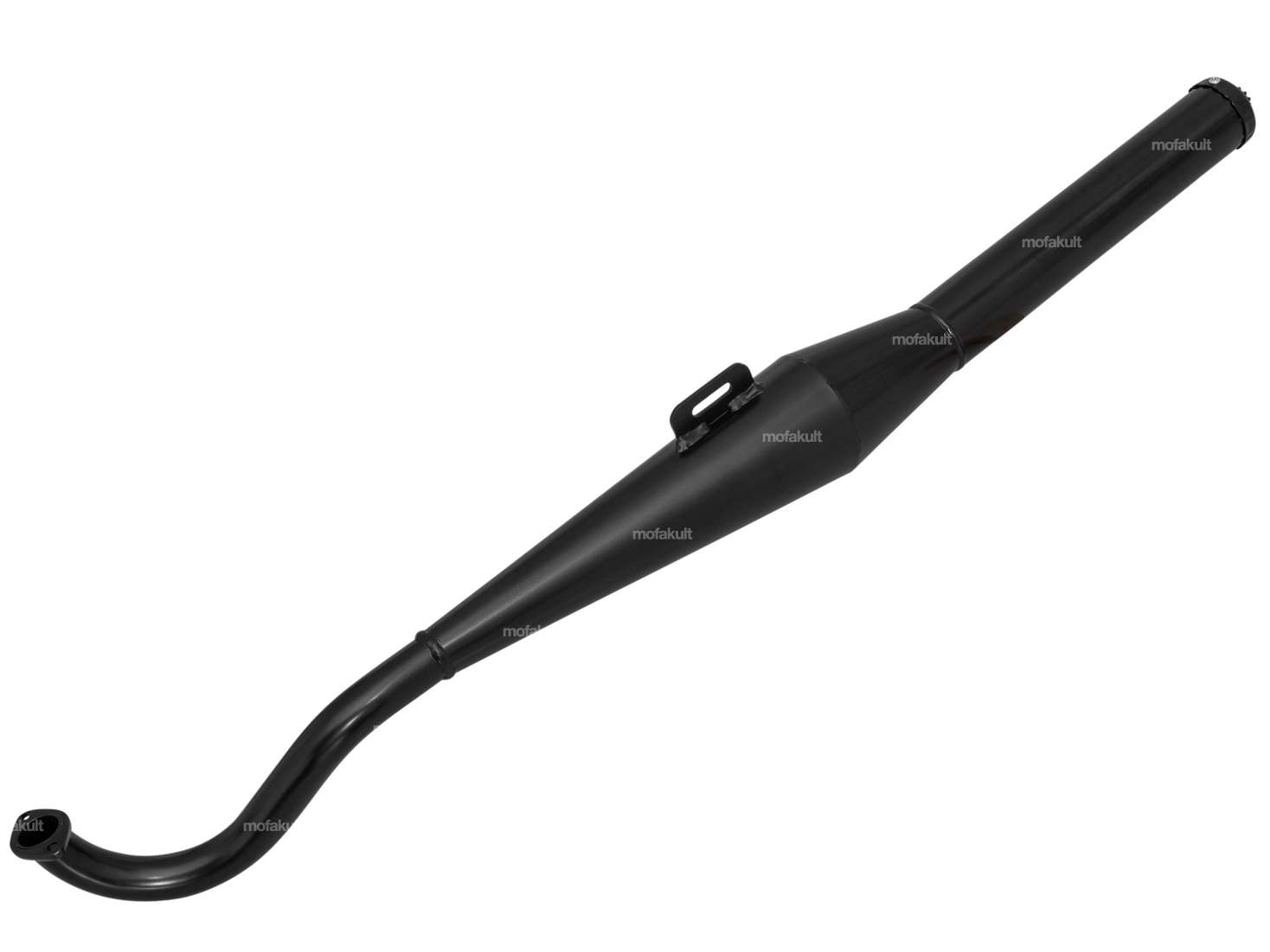

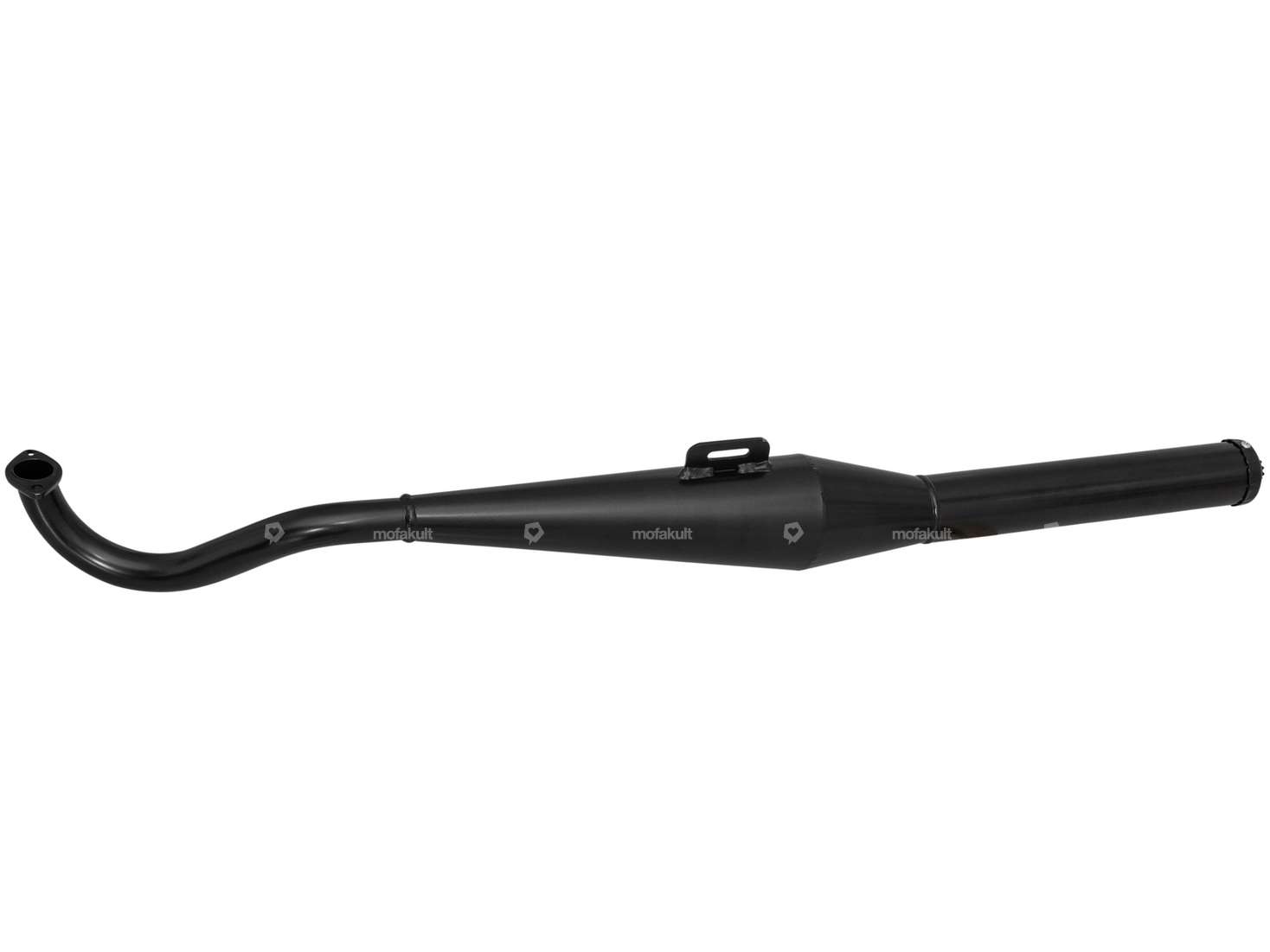

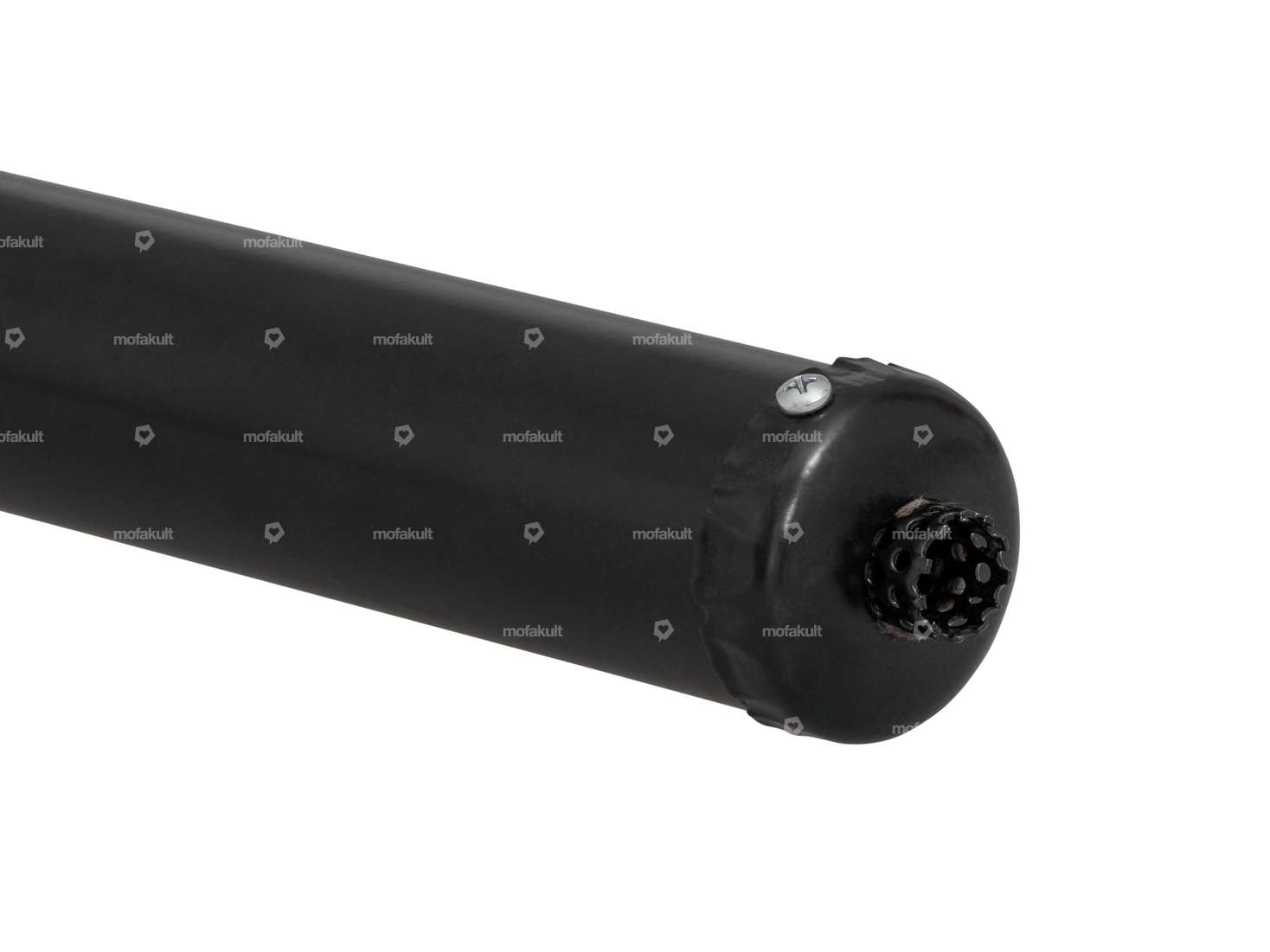

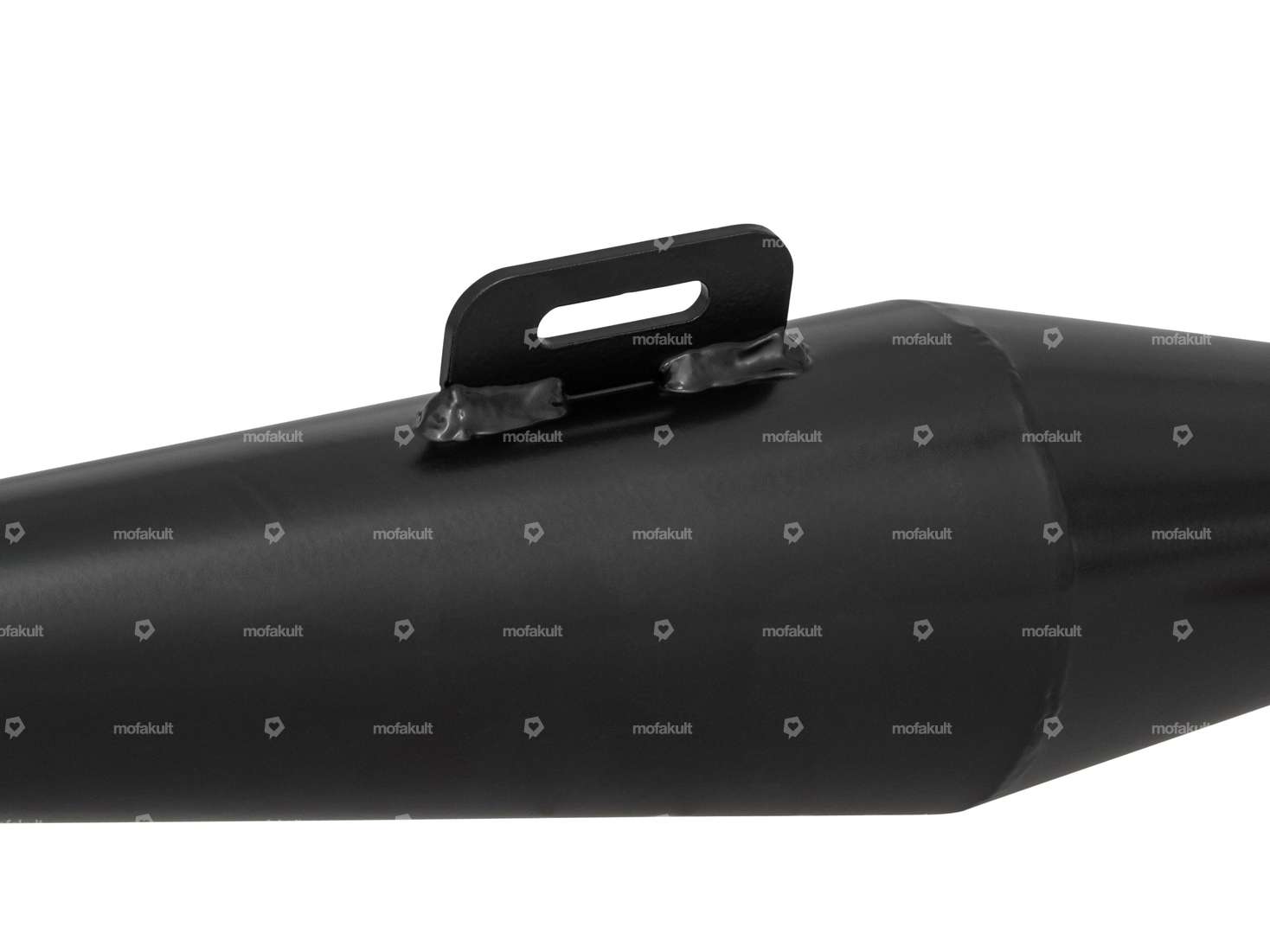

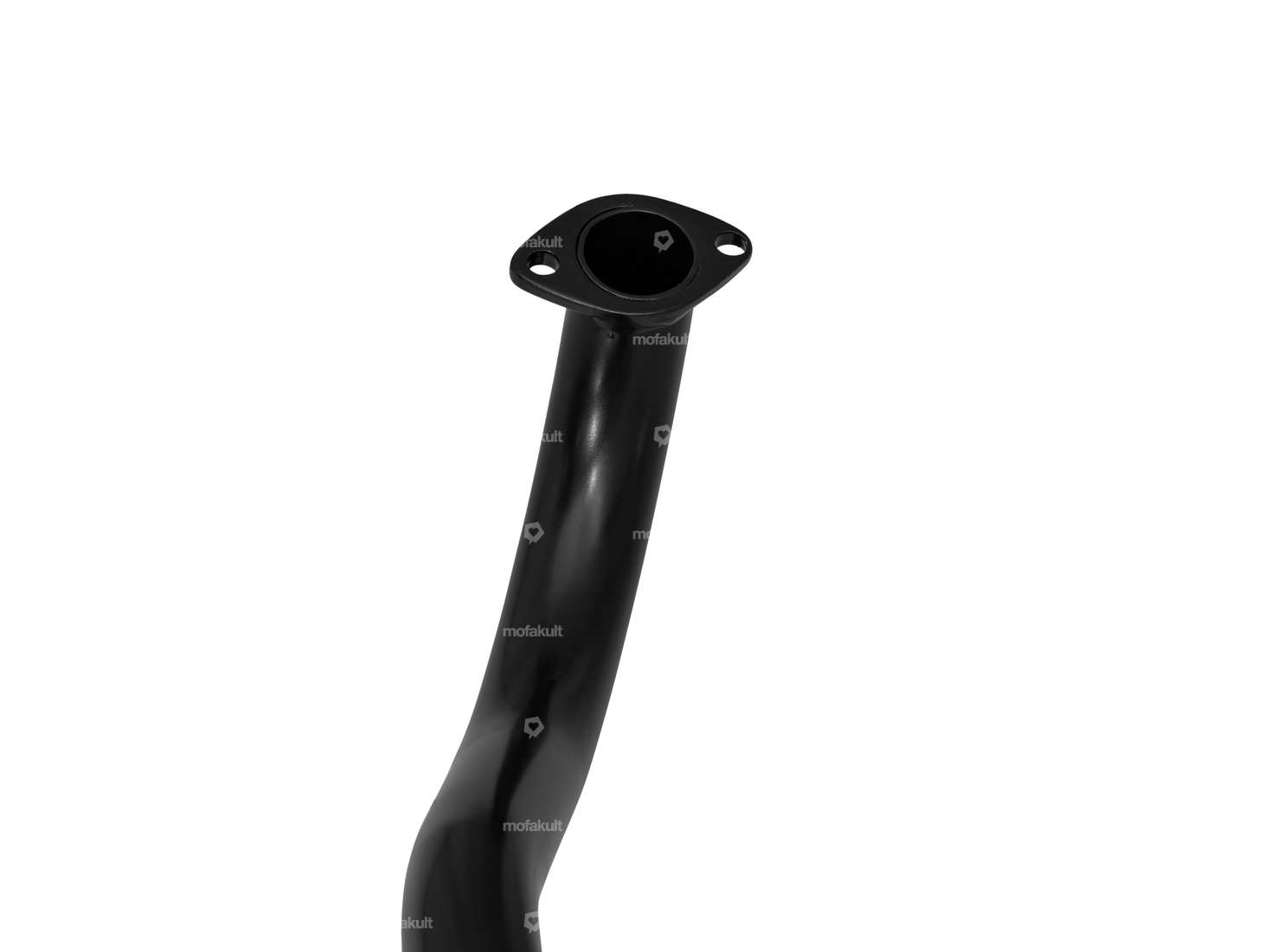

HOMOET Exhaust P4 | Puch

Outlet seal Ø 27 Steel ring

Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Place of use: Outlet · Reinforced: Yes · Thickness: 2.1 mm · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

Insulating wool exhaust 25 x 40 cm

Width: 400 mm · Material: Ceramics · Color: white · Thickness: 10 mm · Height: 220 mm

Large outlet seal

Place of use: Outlet · Material: Sealing carton · Area of application: Tuning · Ø inside: 25.5 mm · Ø outside: 39.7 mm · Thickness: 1.8 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 7.1 mm

Brass nut M6 3D

Material: Brass · Area of application: Standard · Drive: External hexagon · Nut type: Neck nut · Nominal diameter (thread): 6 mm · Ø outside: 9 mm · Width across flats: 10 mm · Shank length: 20 mm · Height: 25 mm · Thread depth: 25 mm · Thread type: M6x1 (standard thread)

Nut M6 extra high galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Drive: External hexagon · Nut type: Hexagon nut 3D · Nominal diameter (thread): 6 mm · Width across flats: 10 mm · Height: 18 mm · Thread type: M6x1 (standard thread)

M6 brass exhaust nut

Drive: External hexagon · Material: Brass · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm

Insulating wool (balls)

Manufacturer: Made in Portugal · Material: Fabric insert · Surface: raw · Color: beige · Total length: 26 mm · Ø inside: 39 mm · Ø outside: 45.5 mm

LIQUI MOLY Exhaust assembly paste (150g)

Manufacturer: LIQUI MOLY · Area of application: Chemistry · Color: gray · Contents: 150 g · Temperature resistance (min.): 0 - 700 °C

swiing® ingenious gasket outlet 28 mm graphite

Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Area of application: Tuning · Place of use: Exhaust · Ø inside: 27.4 mm · Reinforced: No · Thickness: 3 mm · Ø outlet inside: 28 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.6 mm

swiing® ingenious M6 special nut exhaust flange (hexagon socket) (10 strength)

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 10 mm · Total length: 25 mm · Thread type: M6x1 (standard thread) · Thread length: 17 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

Airsal 44 mm cylinder kit 65 ccm camouflaged | Puch

Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 24 / 20 x 15 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: Yes · Camouflaged: Yes

swiing® revival engine revision set (old model) | Puch E50

Manufacturer: NSK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 7 pcs

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Number of components: 1 pcs

Running board Puch Maxi black

Material: Plastic · Color: black · Puch OEM number: 349.1.29.550.1

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Diameter: 5.9 mm · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Total length: 106 mm · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® ingenious gasket outlet 28 mm graphite

Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Area of application: Tuning · Place of use: Exhaust · Ø inside: 27.4 mm · Reinforced: No · Thickness: 3 mm · Ø outlet inside: 28 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.6 mm

swiing® ingenious 44 mm cylinder kit CH12 camouflaged | Puch

Nominal diameter: 44 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 24 / 21 x 14 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: Yes · Camouflaged: Yes

66HEROES Mushroom air filter grille black Ø=20 mm (Bing SRE)

Manufacturer: 66HEROES · Material: Metal · Material: Rubber · Area of application: Tuning · Color: black · Ø outside: 61 mm · Filter type: Grille · Total length: 115 mm · Length rubber part: 63 mm · Length of filter section: 50 mm · Ø Internal connection: 20 mm · Mounting type: Bride · Mounting type: Plug connection clamped · Camouflaged: No
