The use of wear-free HeliCoil thread inserts not only repairs the thread but also increases the thread load-bearing capacity.
Application:
1. Drill out the defective thread with the enclosed drill
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread.
5. Remove the tang with the tang breaker.
Full instructions are included.
For thread sizes M5, M6, M8, M10 and M12.

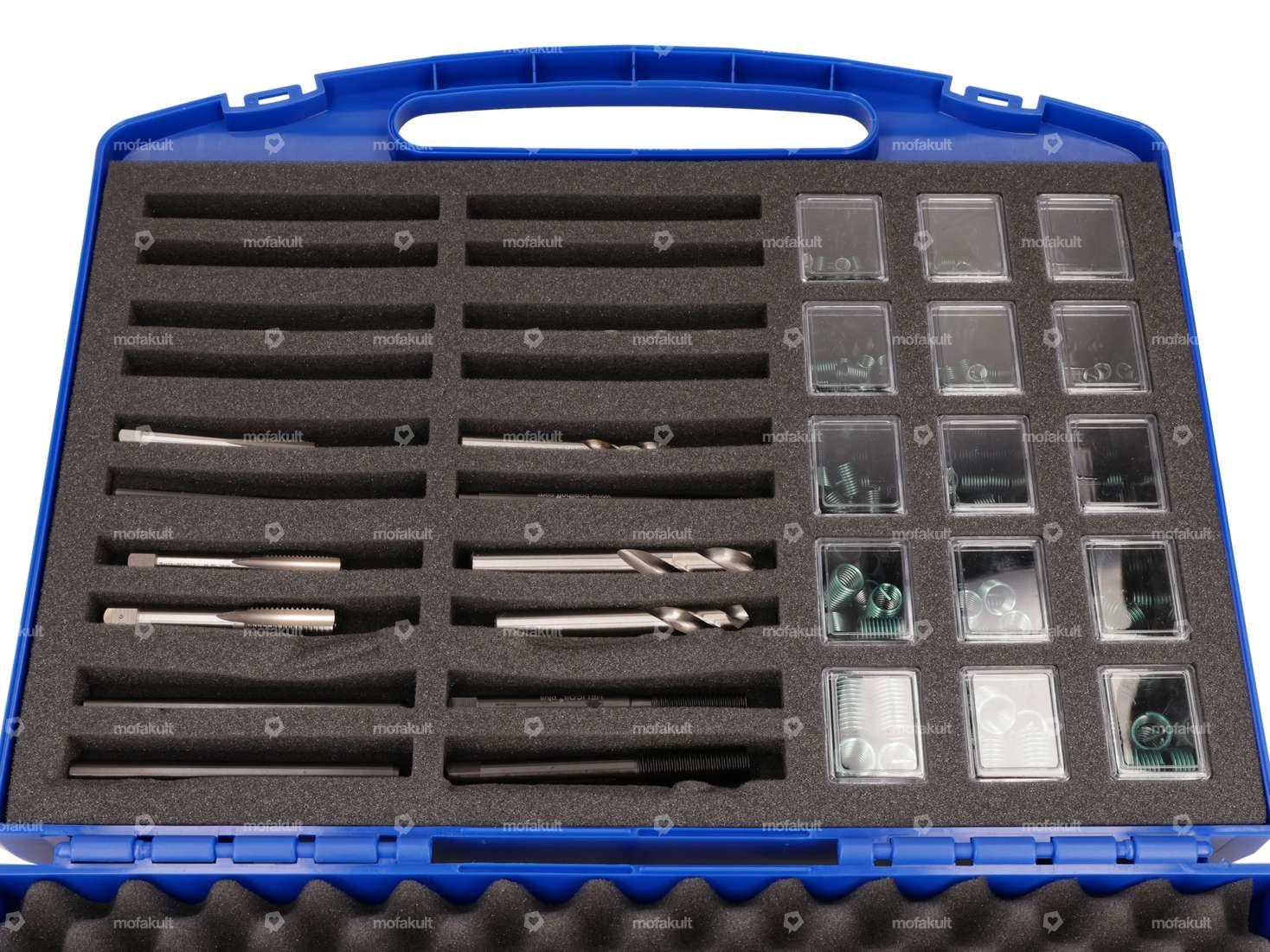

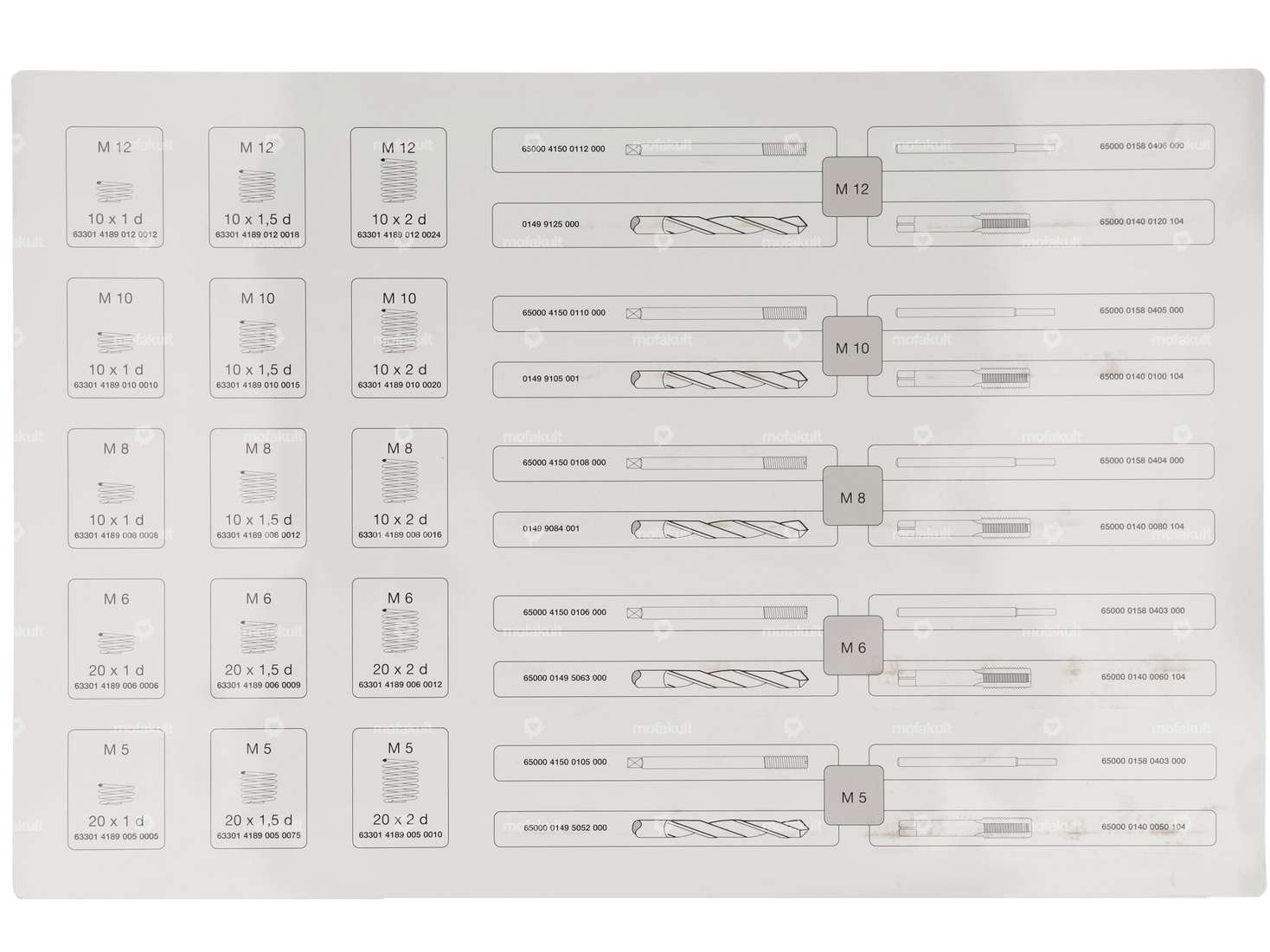

Scope of delivery for each thread size:
1 spiral drill
1 tap. Thread tap
1 pc. Installation tool
1 pc. Tang breaker
20 or 10 pcs. HeliCoil thread insert (1d)
20 or 10 pcs. HeliCoil thread insert (1.5d)
20 or 10 pcs. HeliCoil threaded insert (2d)

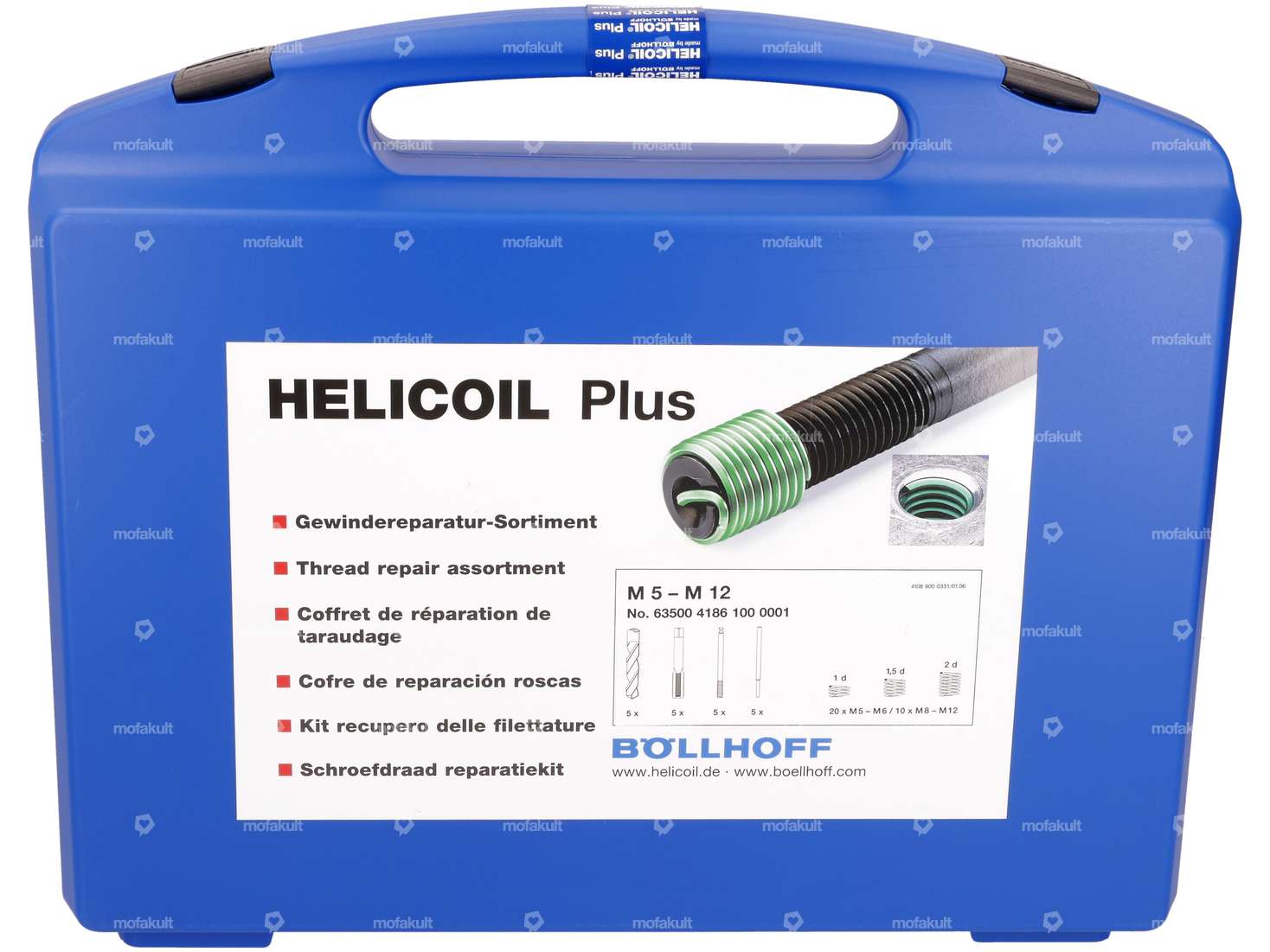

Original HeliCoil product from the German manufacturer Böllhoff.
| Manufacturer | HeliCoil |
| Number of components | 300 pcs |
| Material | Chrome steel (known as Nirosta®) |
| Nominal diameter (thread) | 5 mm, 6 mm, 8 mm, 10 mm, 12 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Storage method | Suitcase |
| Dimension storage box | 420 x 345 x 120 mm |
| Thread type | M5x0.8 (standard thread), M6x1 (standard thread), M8x1.25 (standard thread), M10x1.5 (standard thread), M12x1.75 (standard thread) |
| Area of application | Workshop accessories |
