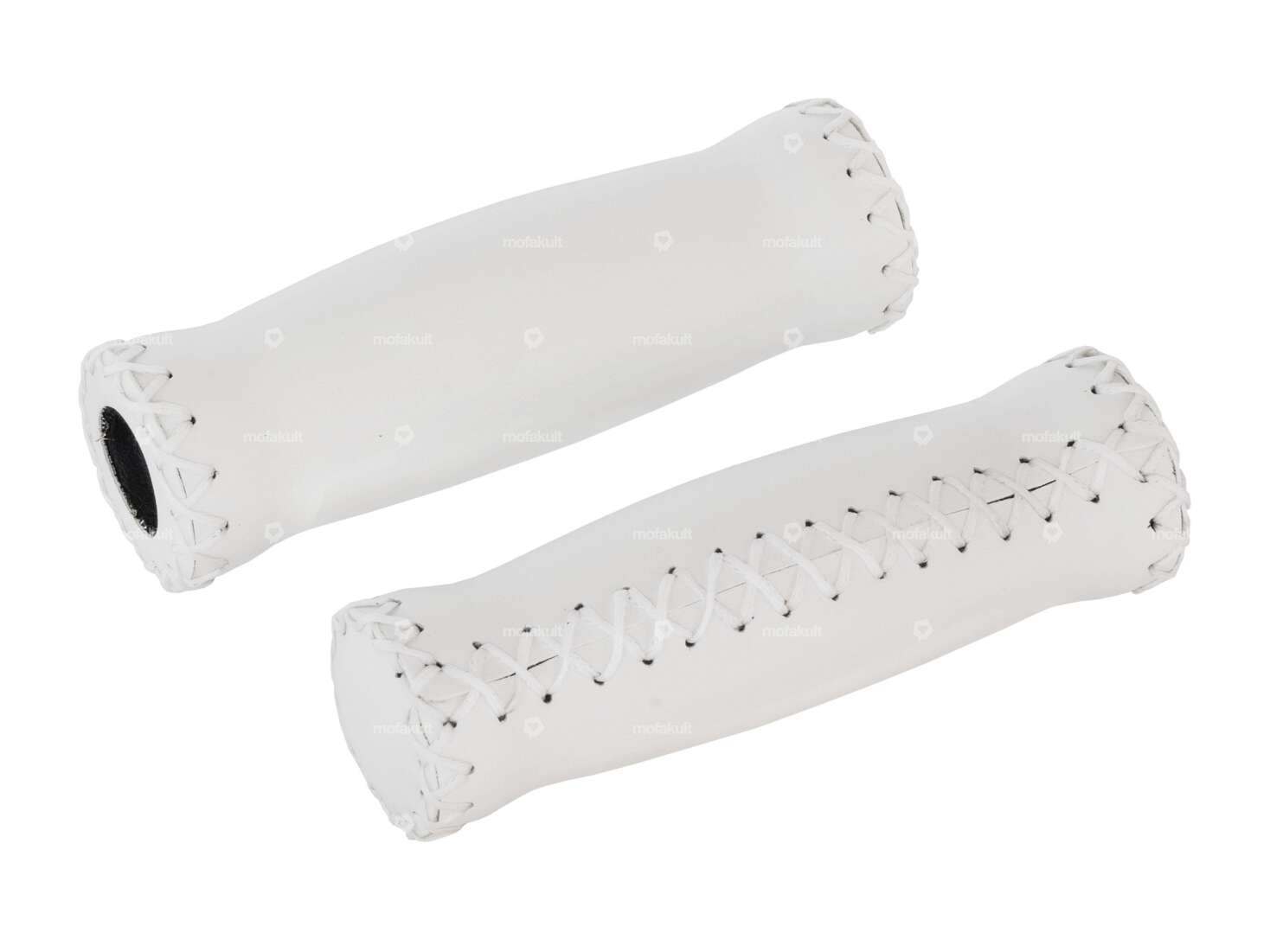

Handles imitation leather white

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Color: gray · Surface: blank / oiled · Number of chain links: 128 pcs · Chain lock type: Spring lock · Rolling circumference: 1626 mm · Ø bore: 4 mm · Ø Pin: 3.94 mm

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG CS · Width: 70 mm · Total length: 82 mm · Height: 124 mm · Nominal diameter: 19 mm · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Area of application: Racing · Area of application: Tuning · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Size of secondary nozzle: 45

Nut flywheel M10x1 SW15 serrated

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: MF10x1 (fine pitch thread) · Nominal diameter (thread): 10 mm · Height: 10.5 mm · Drive: External hexagon · Ø outside: 19.8 mm · Width across flats: 15 mm · Area of application: Standard

EBR fork reinforced & extended black | Puch

Manufacturer: EWC · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 139.5 mm · Ø outer head tube: 26.1 mm · Ø head tube inside: 21.5 mm · Head tube length: 180 mm · Total length: 690 mm · Fork bridge - center wheel axle: 477 mm · Distance brake cam to wheel axle center-center: 39 mm · Thread length: 57.8 mm

Wiring harness 510 mm

Number of cables: 5 pcs · Cable bifurcation to motor: 510 mm · Switch included: No · Luster terminal: No · Cable bifurcation to lamp: 180 mm · Cable bifurcation to switch: 470 mm

Locking plate pinion M10

Ø inside: 12 mm · Thickness: 1 mm · Material: Steel · Thread size: M10 · Nominal diameter (thread): 10 mm · Number of lobes: 1 pcs · Ø outside: 24.8 mm

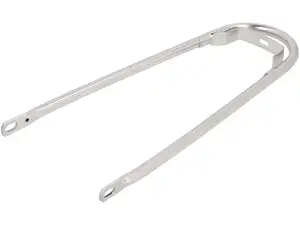

Lower front fender strut Inox | Zündapp Belmondo

Manufacturer: Made in Switzerland · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Distance mudguard - center hole: 280 mm · Mounting type: Nuts & bolts · Number of fixing points: 3 pcs · Ø mounting hole: 6.5 mm · Total length: 305 mm

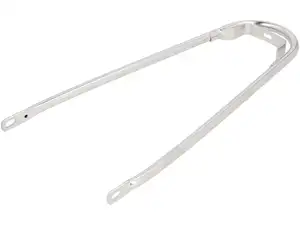

Lower rear fender strut Inox | Zündapp Belmondo

Manufacturer: Made in Switzerland · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Distance mudguard - center hole: 318 mm · Mounting type: Nuts & bolts · Number of fixing points: 3 pcs · Ø mounting hole: 6.5 mm · Total length: 345 mm

Exhaust bracket black | Tomos

Manufacturer: Made in Portugal · Material: Steel · Color: black · Width: 52 mm · Total length: 62 mm · Number of fixing points: 3 pcs · Ø mounting hole: 8.8 mm · Hole spacing: 40 mm
