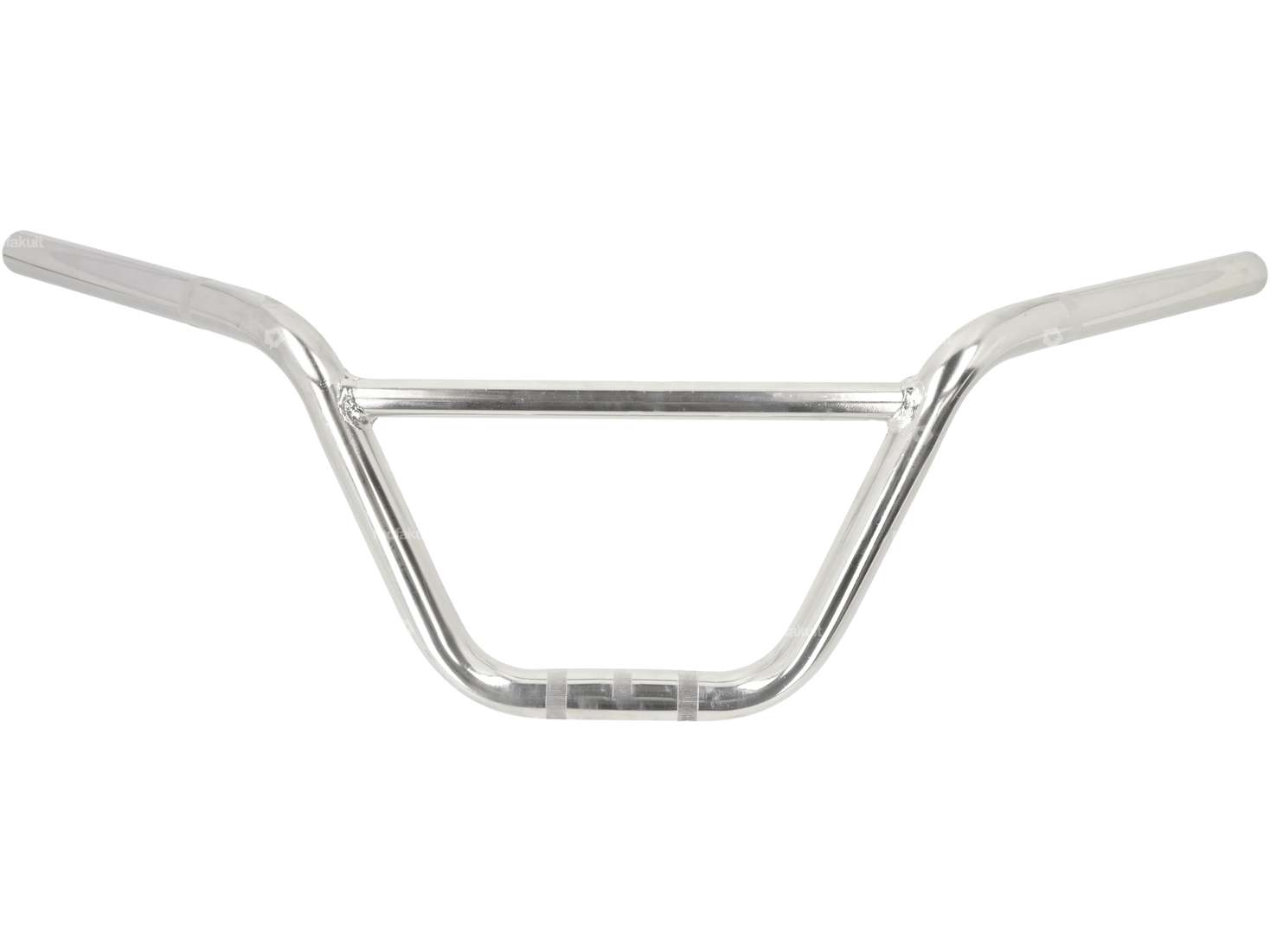

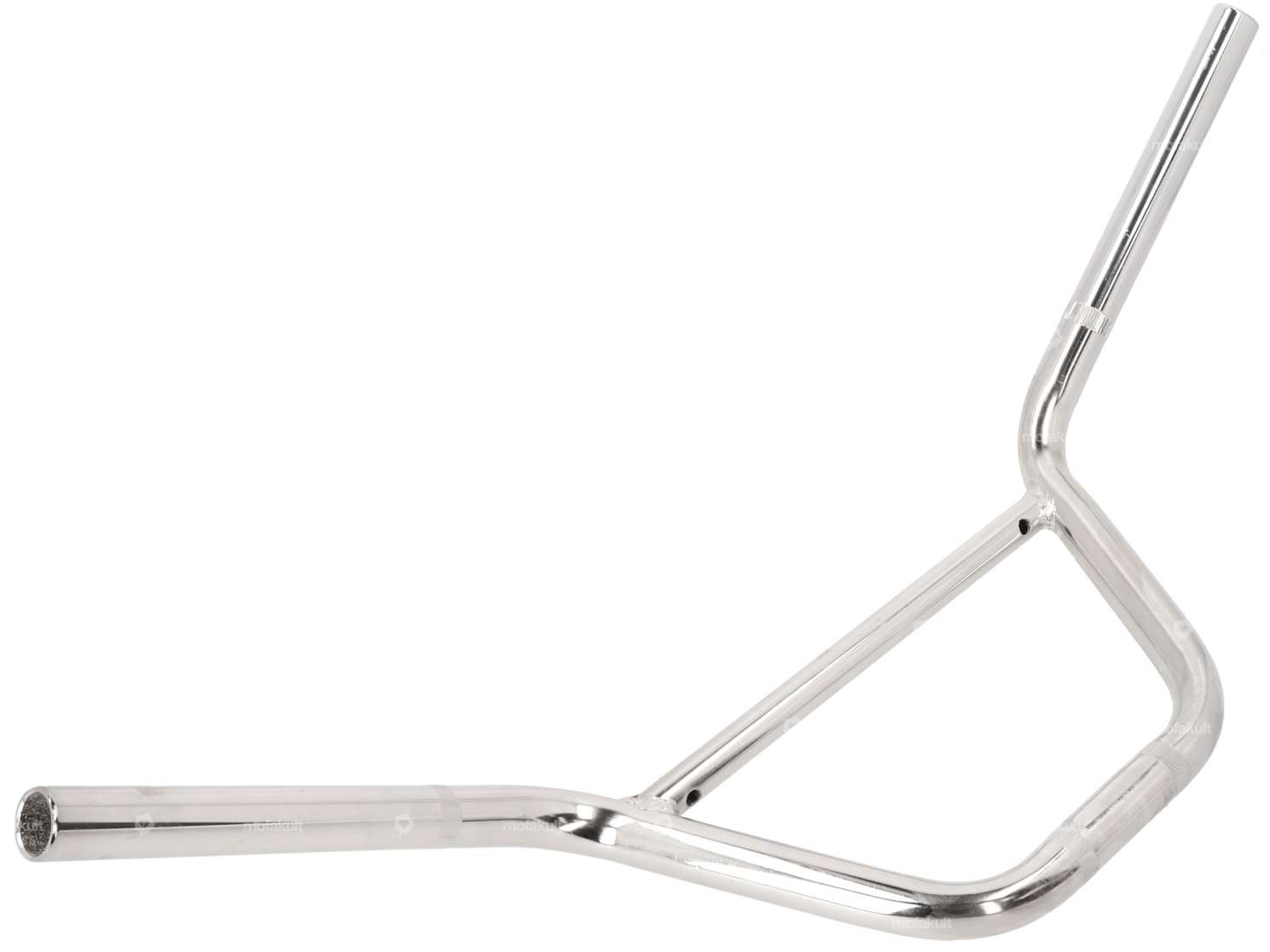

Curved handlebar with solid strut for your moped, moped and small motorcycle. The chrome-plated handlebar is mounted on the fork plate.
The handlebar is originally installed on various MBK 51 mopeds.
Both balance ends are slightly bent backwards.
Height: 180 mm
Width: 615 mm
Ø tube: 22 mm
Length handlebar ends (for handle mounting): 180 mm
Length fork plate mount: 70 mm
Matching attachments such as clamps, steerer nuts, grips etc. can be found in the accessories
.| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Width | 615 mm |
| Clamping diameter | 22 mm |
| Height | 180 mm |
| Fork plate holder length | 70 mm |
| Ø outside | 22 mm |
| Mounting type | Fork plate |
| Length handlebar ends | 180 mm |
| Crossbar | Yes |
| Ø Strut | 16 mm |
| Strut length | 200 mm |
