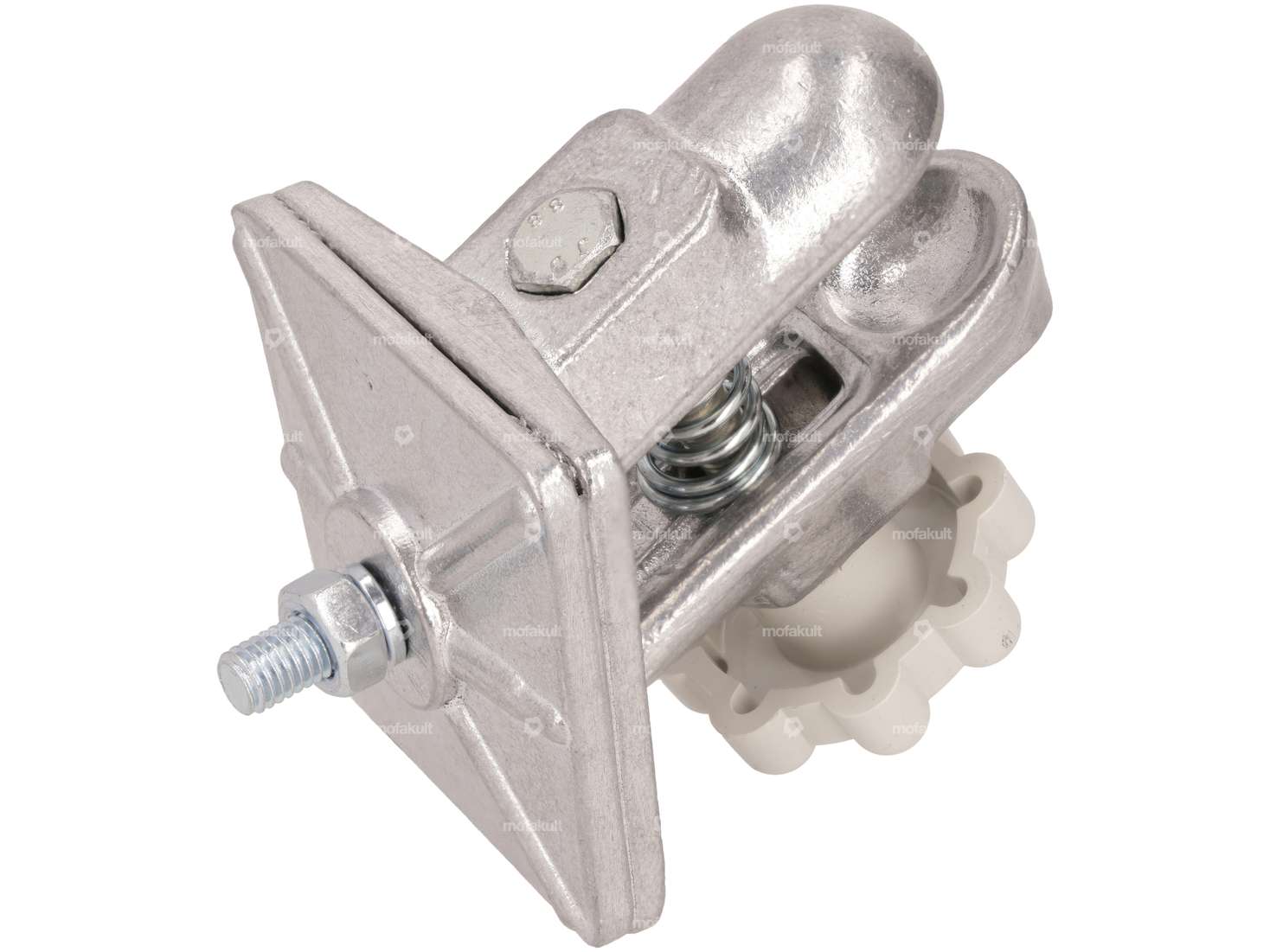

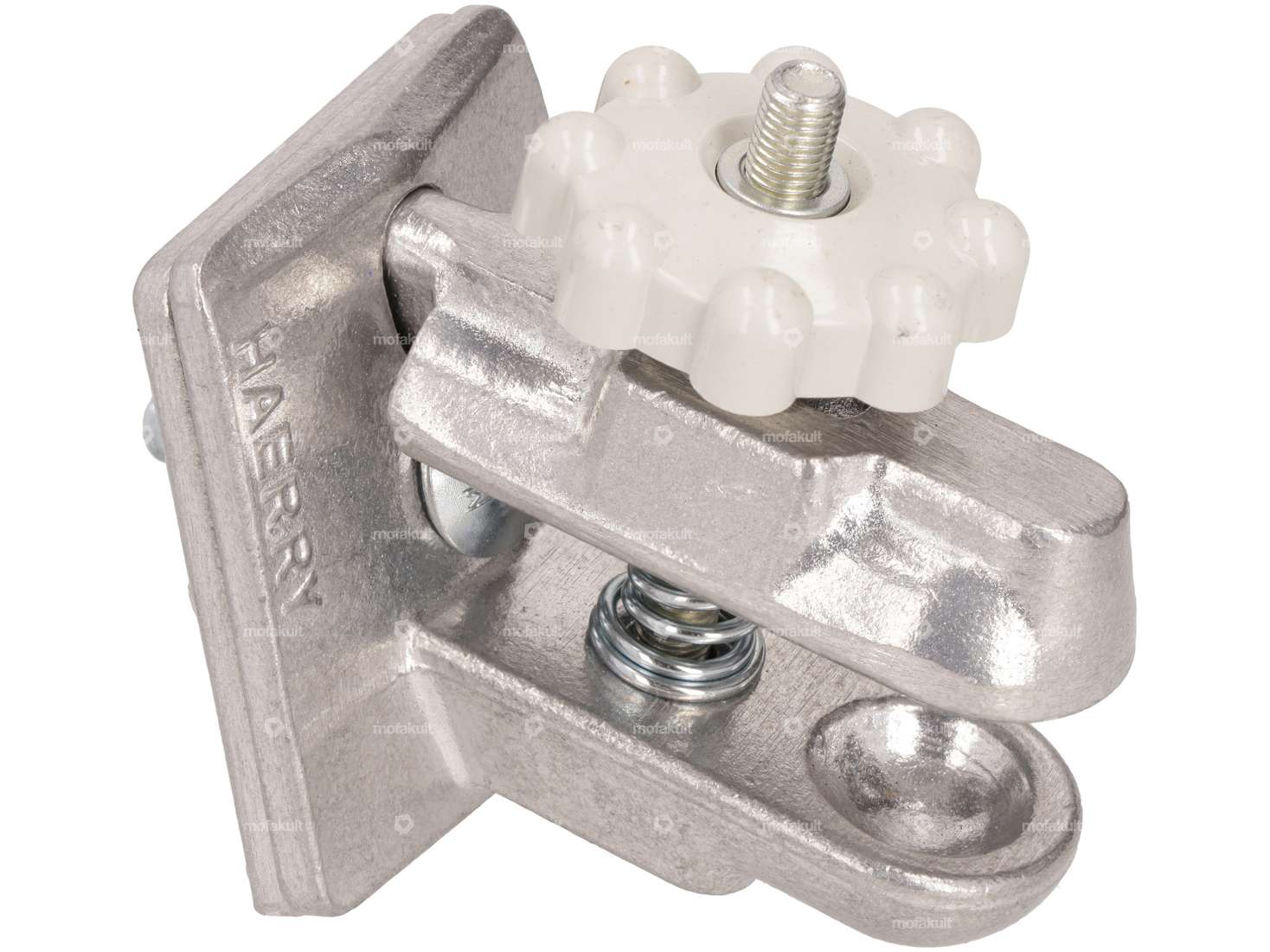

HAERRY trailer coupling attachment to the rear frame

swiing® revival nozzle set M3.5 (54 - 64) Bing SRE, SRA, SRC, SRF

Drive: Slot · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 6 pcs · Total length: 6 mm · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 54 · Nozzle size: 56 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64

Magura angle piece clutch lever

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Height: 9.7 mm · Color: silver · Total length: 21.3 mm · Width: 19.5 mm

Union pedals plastic standard

Manufacturer: Union · Material: Plastic · Material: Steel · Surface: rubberized · Thread type: FG14.3 (9/16" 20G) · Total length: 129 mm · Color: black · Width: 77 mm · Reflectors: Yes · Height: 29 mm · Drive: Hexagon socket · Drive: Outer edge · Width across flats: 15 mm

Bumm mirror round Inox

Manufacturer: Bumm · Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Surface: chrome-plated · Color: Chrome · Thread size: M8 · Thread type: M8x1.25 (standard thread) · Total length: 360 mm · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Clamping diameter: 22 mm

swiing® revival ball for trailer coupling (weld-on)

Manufacturer: swiing® revival parts · Ø ball: 30 mm · Material: Steel · Surface: raw · Total length: 63 mm · Wide intake: 16 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry

swiing® revival bulb speedometer / cockpit 6V - 1.2W (BA7s) 1-filament

Manufacturer: swiing® revival parts · Test mark: none · Tension: 6 V · Color: white · Performance: 1 W · Total length: 19 mm · Bulb holder: BA7s · Ø base: 7 mm · Ø Lamp head: 6 mm · LED: No

Exhaust clamp 60 mm chrome (1A quality)

Nominal diameter: 60 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Thickness: 2.3 mm · Clamping diameter: 56 - 60 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm · Width: 20 mm

GPO piston 38 mm | Sachs 50/2, 50/3, 50/4 fan-cooled

Manufacturer: GPO · Ø outside piston (A): 37.94 mm · Compression height (C): 27.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.7 mm · Thick piston ring: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 78 g · Alternative version of the Sachs OEM number: 0290 058 025

GPO ball for trailer coupling (screw-on) Inox

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Ø ball: 30 mm · Wide intake: 16 mm · Thread type: M10x1.5 (standard thread)
