43.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal circlip (IS) to fit the GPO «Divertimento» 41 mm racing kit on your moped / moped with Sachs 50, 502, 50/2, 50/3, 50/4 engine.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 43 mm |
| Manufacturer | GPO |
| Material | Aluminum |
| Thick piston ring | 1.7 mm |
| Ø outside piston (A) | 42.95 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Ratings
Accessories & related products
GPO Ø 43 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4
Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 61 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes
EUR 201.60
Explore categories from Piston
Moped fans also bought
Motorex engine oil (gear oil) manual 450 ml
Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch
EUR 11.40
EUR 25.33/l
swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
Screw head: Hexagon · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Number of components: 12 pcs · Color: silver · Drive: External hexagon · Total length: 34 mm · Ø shaft: 5.85 mm · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Shank: Yes · Strength class: 10.9 · Shank length: 8 mm · Thread length: 22 mm · Area of application: Standard
EUR 5.65
swiing® revival carburetor 17 mm Bing SSB 1/17/69
Nominal diameter: 17 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Ø fuel hose connection: 6 mm · Height: 100 mm · Mounting type: Flange · Total length: 132 mm · Hole spacing inlet: 31 mm · Mixed oil connection: No · Width: 85 mm · Vacuum connection: No · Choke control: without choke · Camouflaged: No · Nozzle size: 76 · Area of application: Standard · Area of application: Tuning
EUR 146.30
swiing® revival stud bolt set M5x26 inlet (10.9 strength) | Sachs 50/2, 50/2, 50/3
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 26 mm · Width across flats: 8 mm · Thread type: M5x0.8 (standard thread) · Strength class: 8 · Strength class: 10.9 · Thread length: 7 mm · Thread length: 14 mm
EUR 6.55
BAD ASS cylinder head L Ø 41-43 mm | Sachs 502, 50/2, 50/3, 50/4
Ø outside: 108 mm · Manufacturer: BAD ASS · Material: Aluminum · Area of application: Tuning · Ø cylinder: 41 - 43 mm · Ø screw holder: 19.3 mm · Number of fixing points: 1 pcs · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5
EUR 172.80
GPO Ø 43 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4
Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 61 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes
EUR 201.60

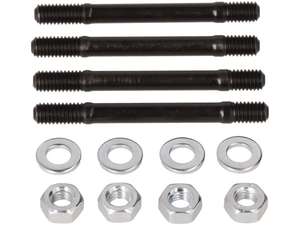

GPO stud bolt set "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4
