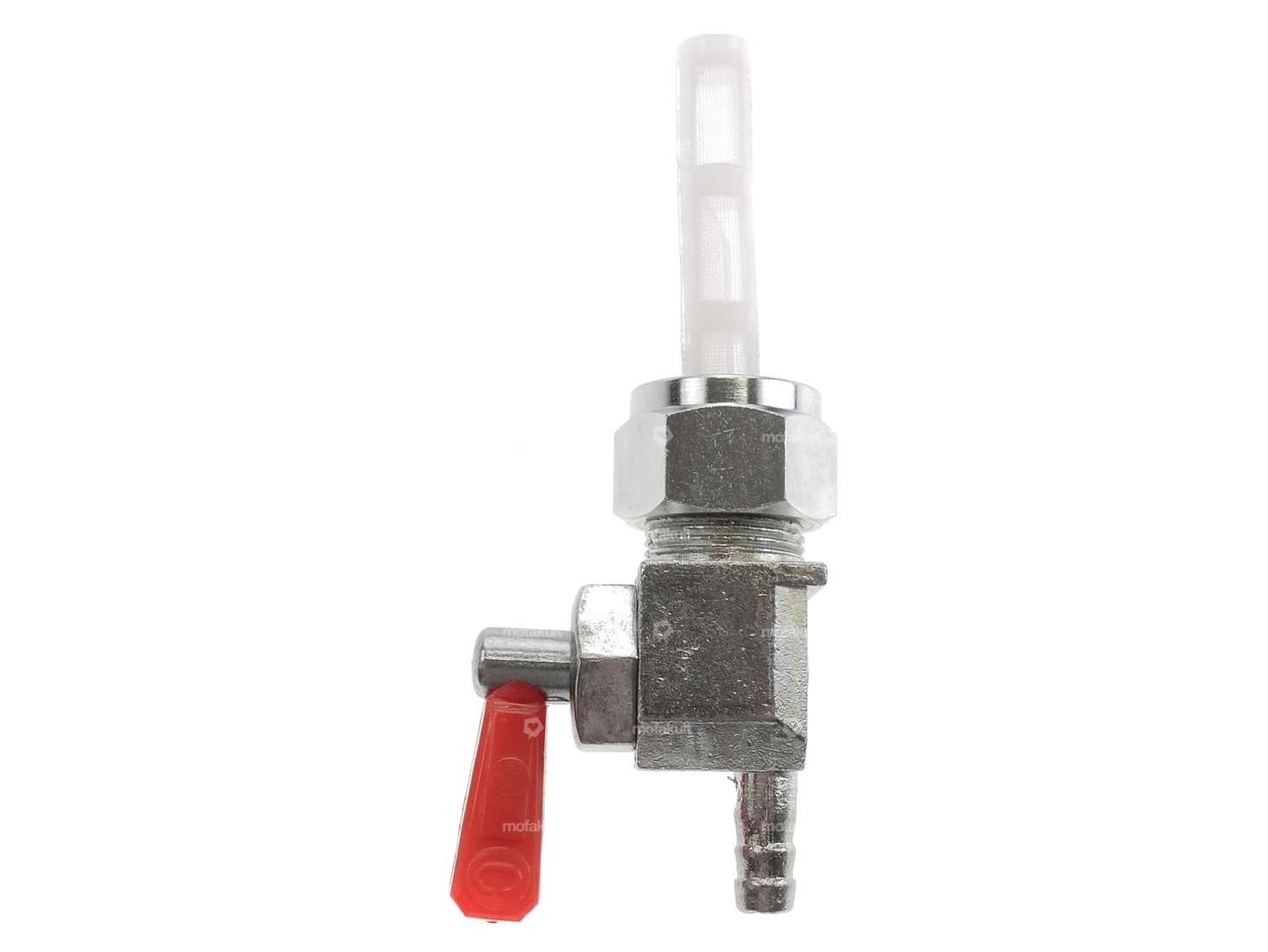

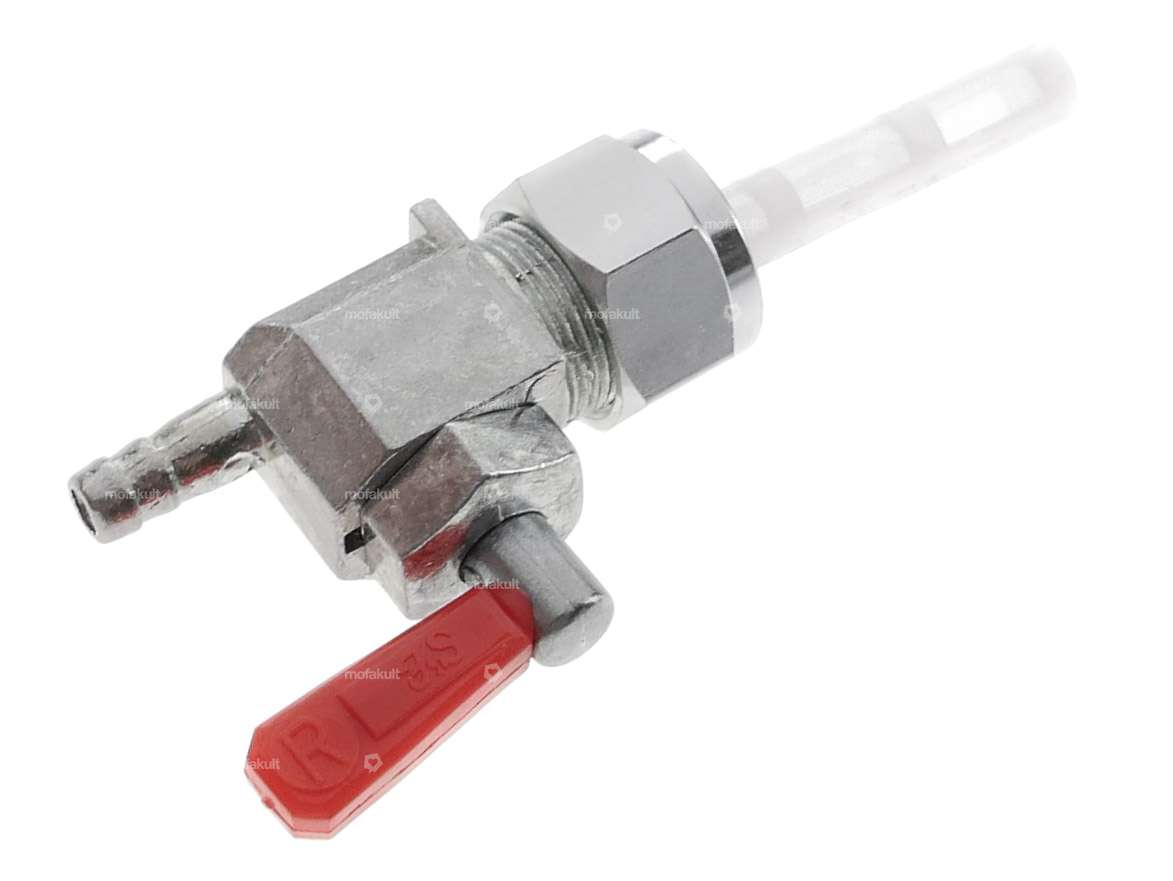

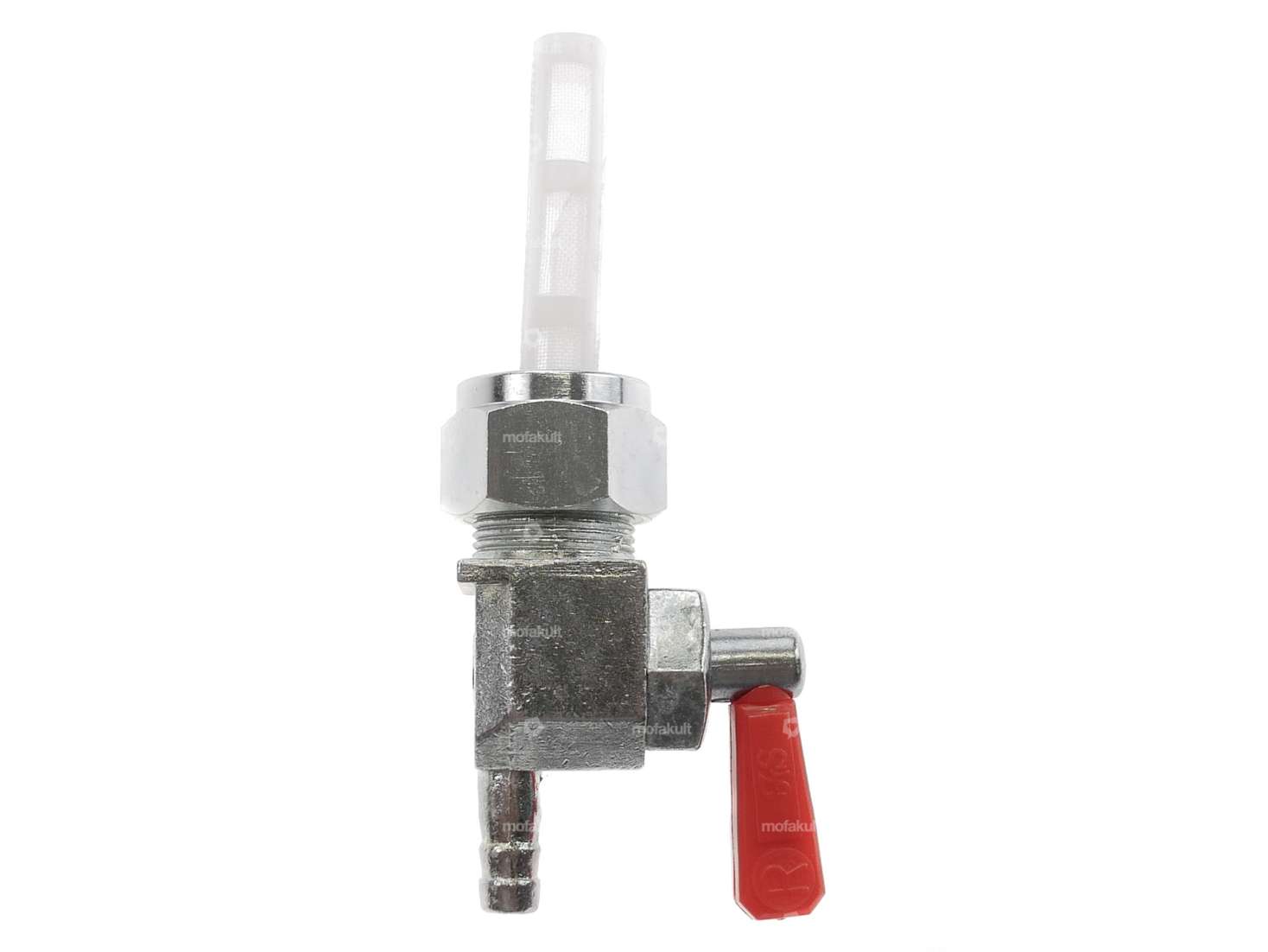

Universally usable fuel tap with M16x1 mm threaded connection and downward-opening nozzle for your moped, moped and small motorcycle.
The fuel connection has the following features:
Connection thread: MF16 x 1 mm (fine pitch thread)
Connection type: union nut
Positions: closed / open / reserve (labeled on red lever R / C)
Ø fuel hose connection: 6 mm
Height reserve (filter length): 45 mm
Possible lever positions | open / closed / reserve |
Material lever | Plastic |
Mounting type | Union nut |
Filter type | Plastic net |
Installation direction | vertical / vertical |
Outlet direction | below |
Spare tube shape | straight |
Thread type | MF16x1 (fine pitch thread) |
Reserve level | 45 mm |
Ø fuel hose connection | 6 mm |
