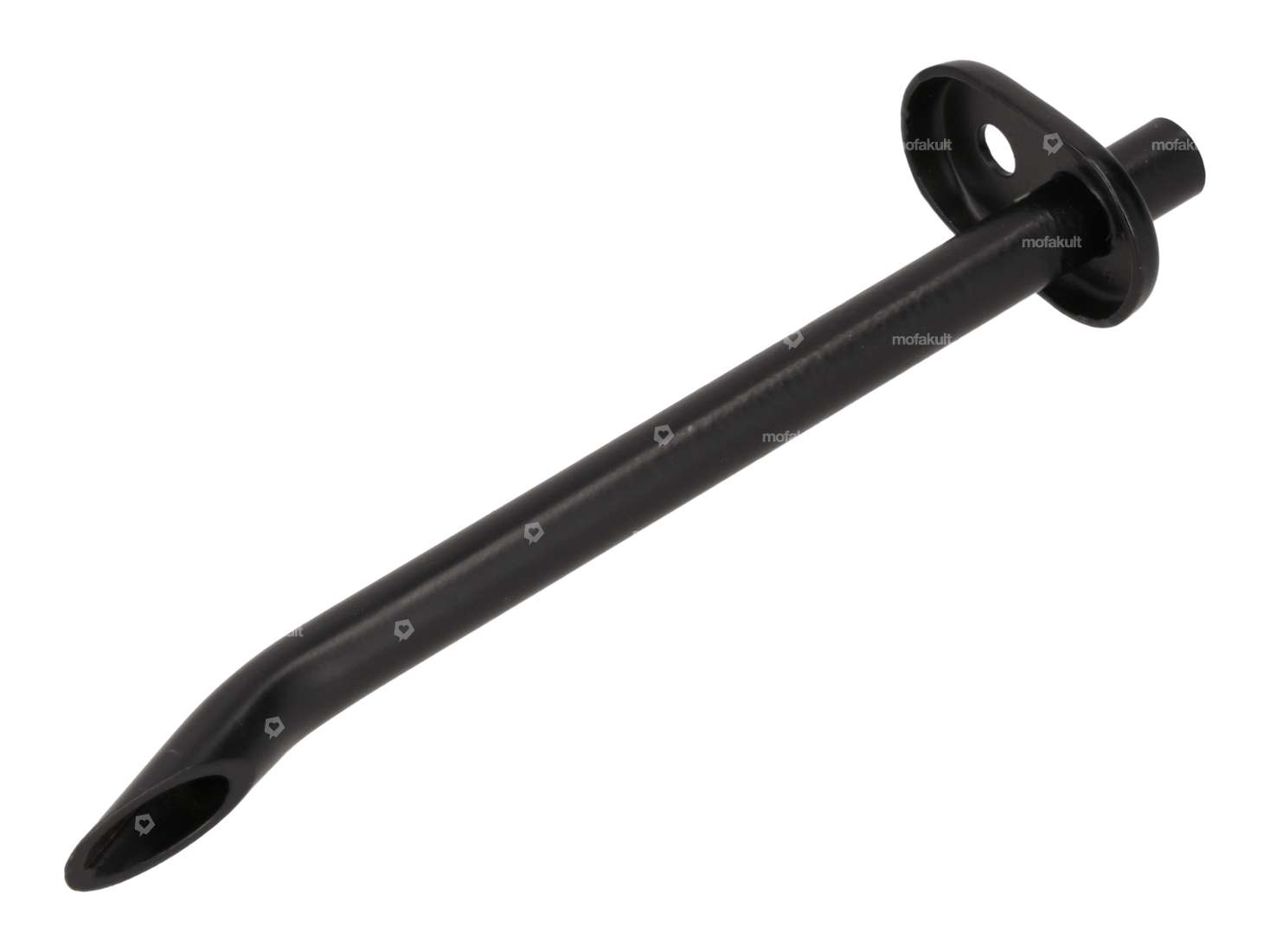

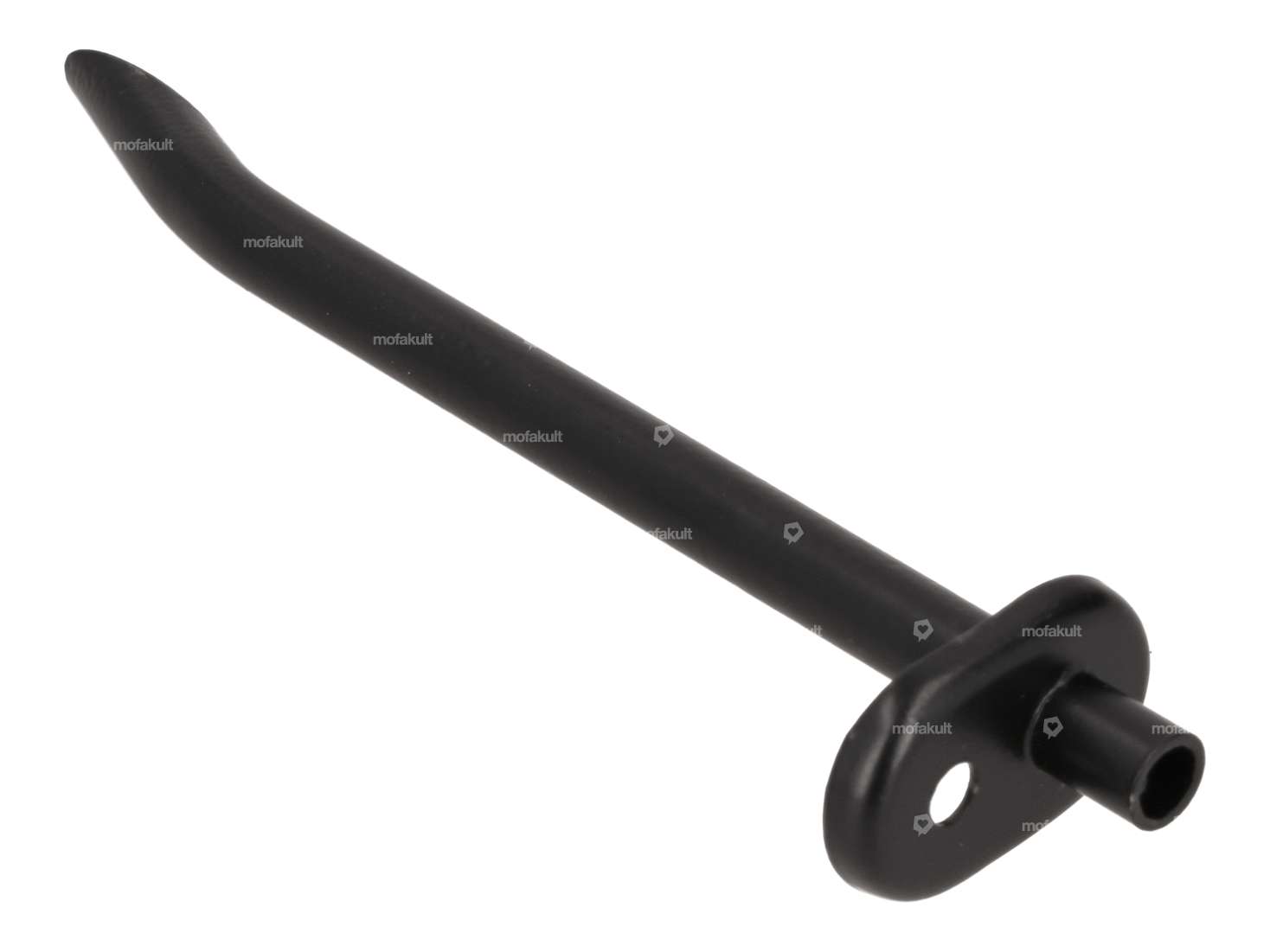

Exhaust tailpipe | Puch X30 Ur-Velux

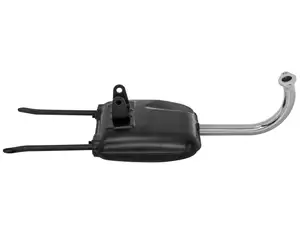

Exhaust Special | Puch X30 Ur-Velux

Material: Steel · Surface: chrome-plated · Color: Chrome · Color: black · Mounting type: Welded lug · Number of fixing points: 2 pcs · Flame tube attachment: Flange

Flame tube 20 mm | Ur-Velux

Material: Steel · Surface: chrome-plated · Ø inside: 17.5 mm · Ø outside: 20 mm · Total length: 200 mm · Number of fixing points: 2 pcs · Mounting type: Stud bolts & nuts · Hole spacing outlet: 42 - 41.5 mm · Color: Chrome · Flame tube attachment: Stud bolts & nuts

GPO fork lock | Puch

Ø rotating part: 12 mm · Manufacturer: GPO · Wide locking block: 4.1 mm · Locking block length: 15.3 mm · Material: Brass · Material: Spring steel · Material: Steel · Surface: blank · Ø outside: 12 mm · Ø Pin: 8 mm · Length of turned part: 25.6 mm · Width: 17 mm · Total length: 40.8 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

swiing® revival nozzle set M3.5 (54 - 64) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 6 pcs · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 54 · Nozzle size: 56 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Drive: Slot · Total length: 6 mm

swiing® revival bellows Ø 23/30 x 100 mm | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Ø inside: 23 mm · Ø inside 2: 30 mm · Ø outside: 35 mm · Ø outside: 45 mm · Total length: 103 mm

EBR standard fork chrome | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Adjustable: No · Color: Chrome · Ø spars: 23 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

swiing® revival sliding block (for screwing) Magura throttle twist grip

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Color: black · Drive: Hexagon socket · Width: 7.7 mm · Height: 8.8 mm · Total length: 12 mm · Thread length: 8.8 mm · Thread type: M4x0.7 (standard thread)

Magura adjusting screw brake short

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Drive: Knurled screw · Total length: 31 mm · Total length: 40 mm · Thread type: MF6x0.75 (fine pitch thread) · Ø shaft: 6.1 mm · Ø External head: 9.15 mm · Thread length: 15 mm · Shank length: 6.9 mm

Continental 2.00 - 2.50 x 17" tube

Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [inch]: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Valve type: TR6 car valve · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Wheel size [inch]: 17 "

Silicone seal Ø 45 x 2 silencer | Puch

Place of use: Exhaust · Manufacturer: Puch · Material: Silicone · Nominal diameter: 45 mm · Thickness: 2.9 mm · Ø inside: 45 mm · Ø outside: 52 mm · Area of application: Standard

BING O-ring Bing SRE & 85, Ø 20 mm

Place of use: Carburetor · Manufacturer: BING · Material: Rubber · Color: black · Surface: raw · Ø inside: 17.2 mm · Ø outside: 20 mm · Cord thickness: 1.4 mm · Number of components: 1 pcs · Area of application: Standard · Pony OEM number: A4281 · Sachs OEM no.: 0250 160 101
