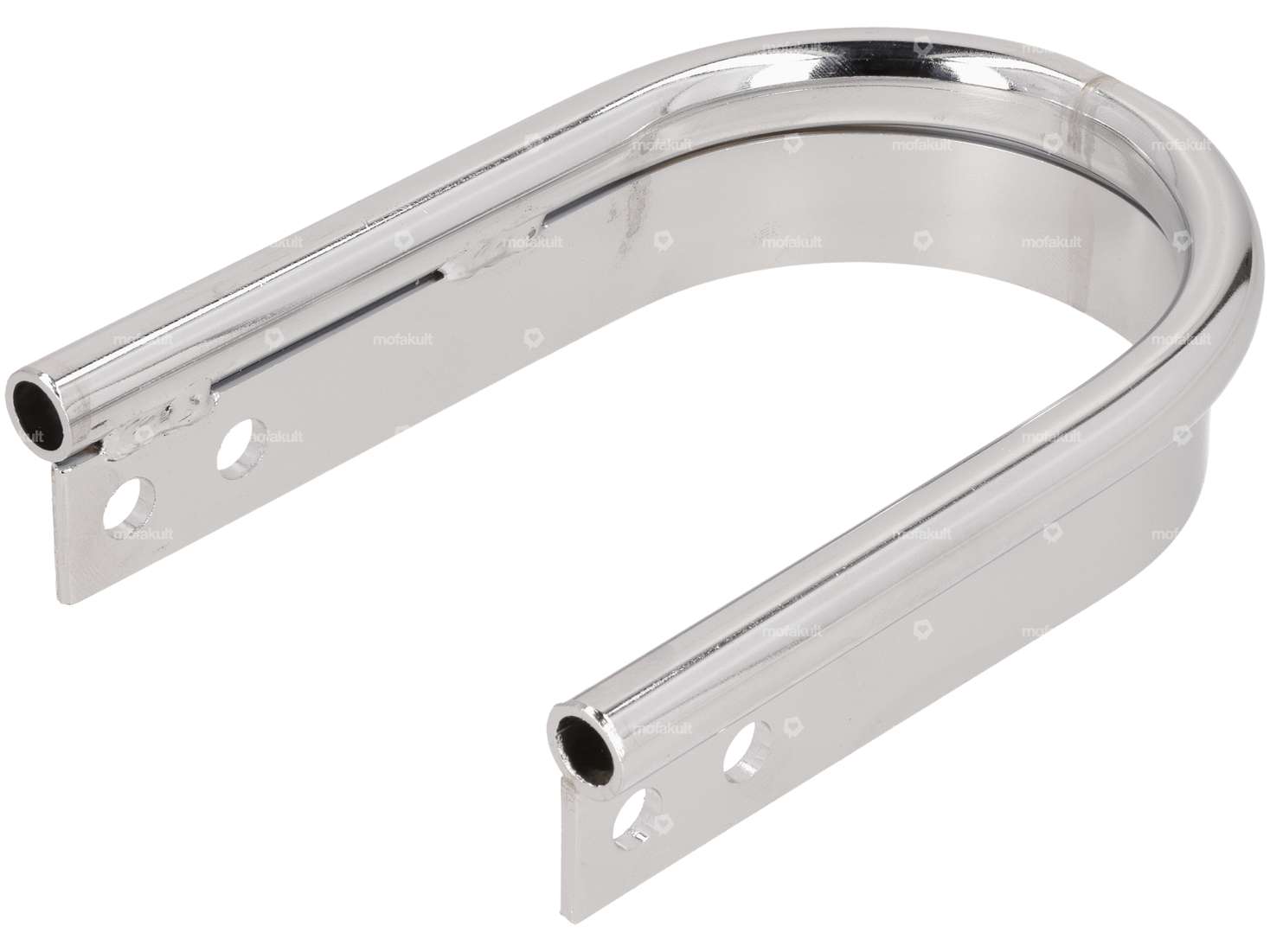

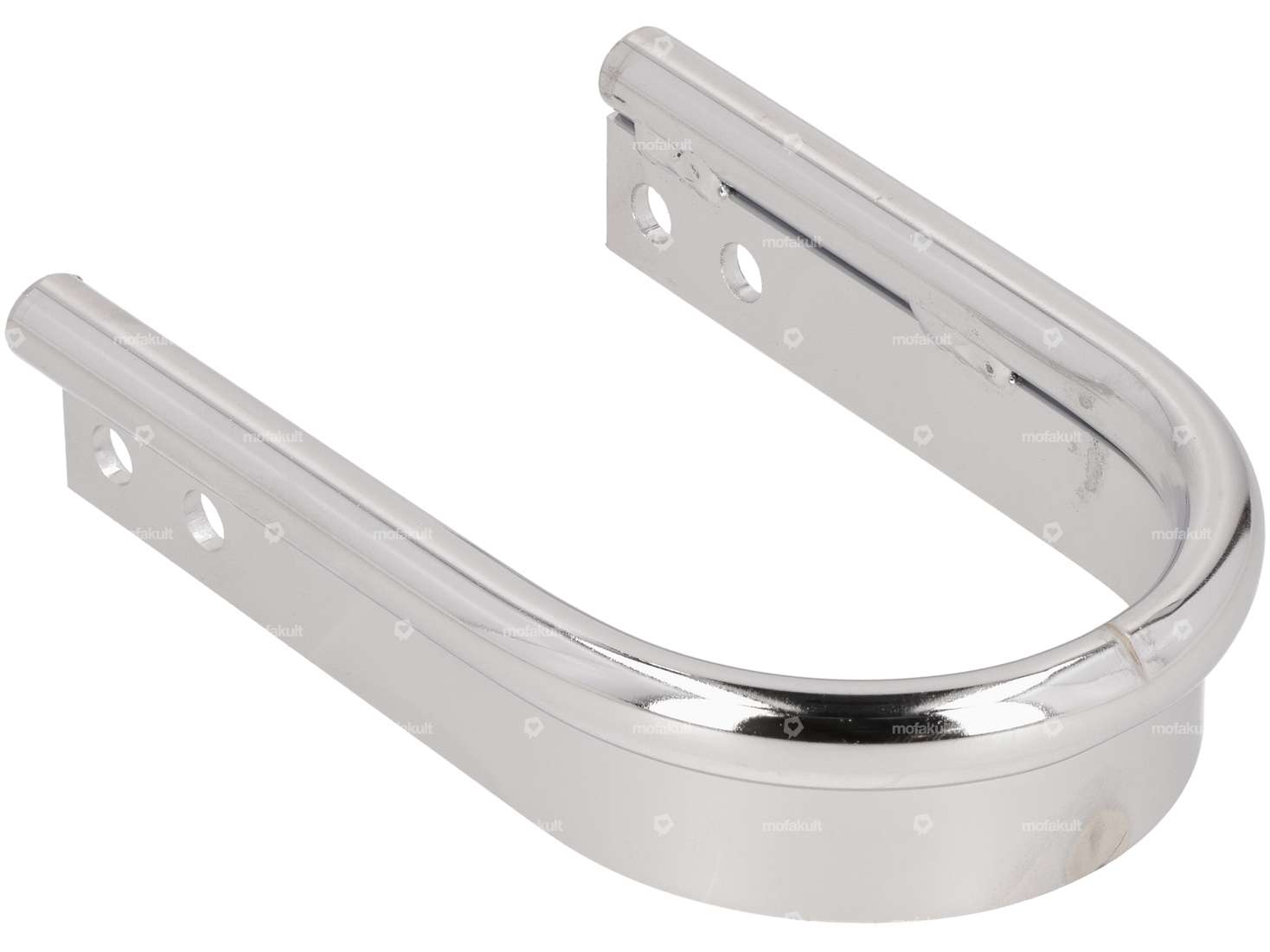

Tube bend to increase the stability of the fork.
Fits the hydraulic EBR Puch telescopic fork and the Sachs Staco fork.
Total height of arch: 144 mm
Width (outer edges of flat bar): 89 mm
Hole spacing of lateral holes: 19 mm
Hole diameter: 7.2 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Color | Chrome |
| Surface | chrome-plated |
| Ø mounting hole | 7.2 mm |
| Mounting type | Nuts & bolts |
| Number of fixing points | 4 pcs |
| Total length | 144 mm |
| Hole spacing | 19 mm |
| Wide intake | 89 mm |
| Puch |
| Sachs |
| Pony / Cilo (Beta 521 & 512) |
