For: Puch

17353

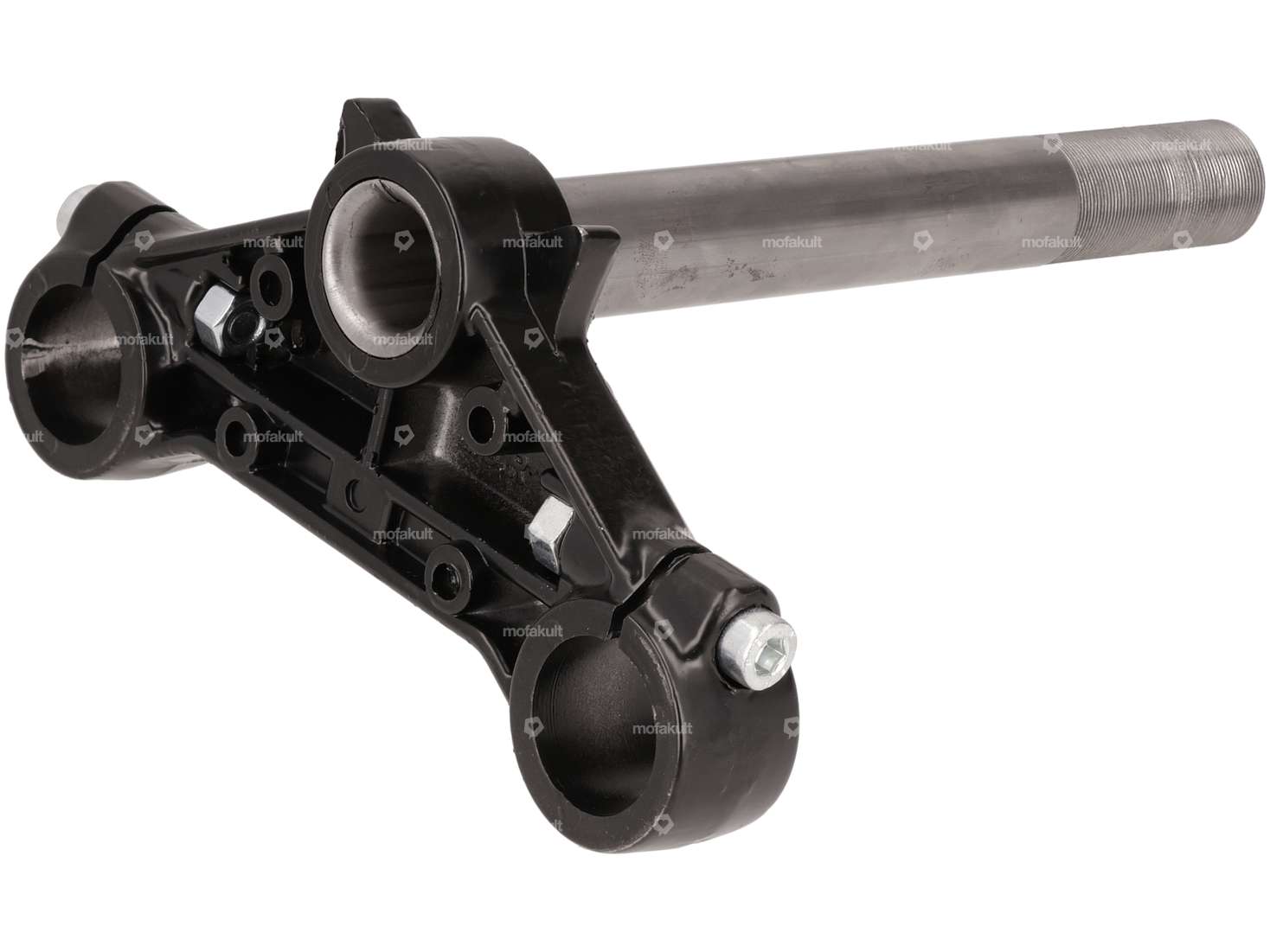

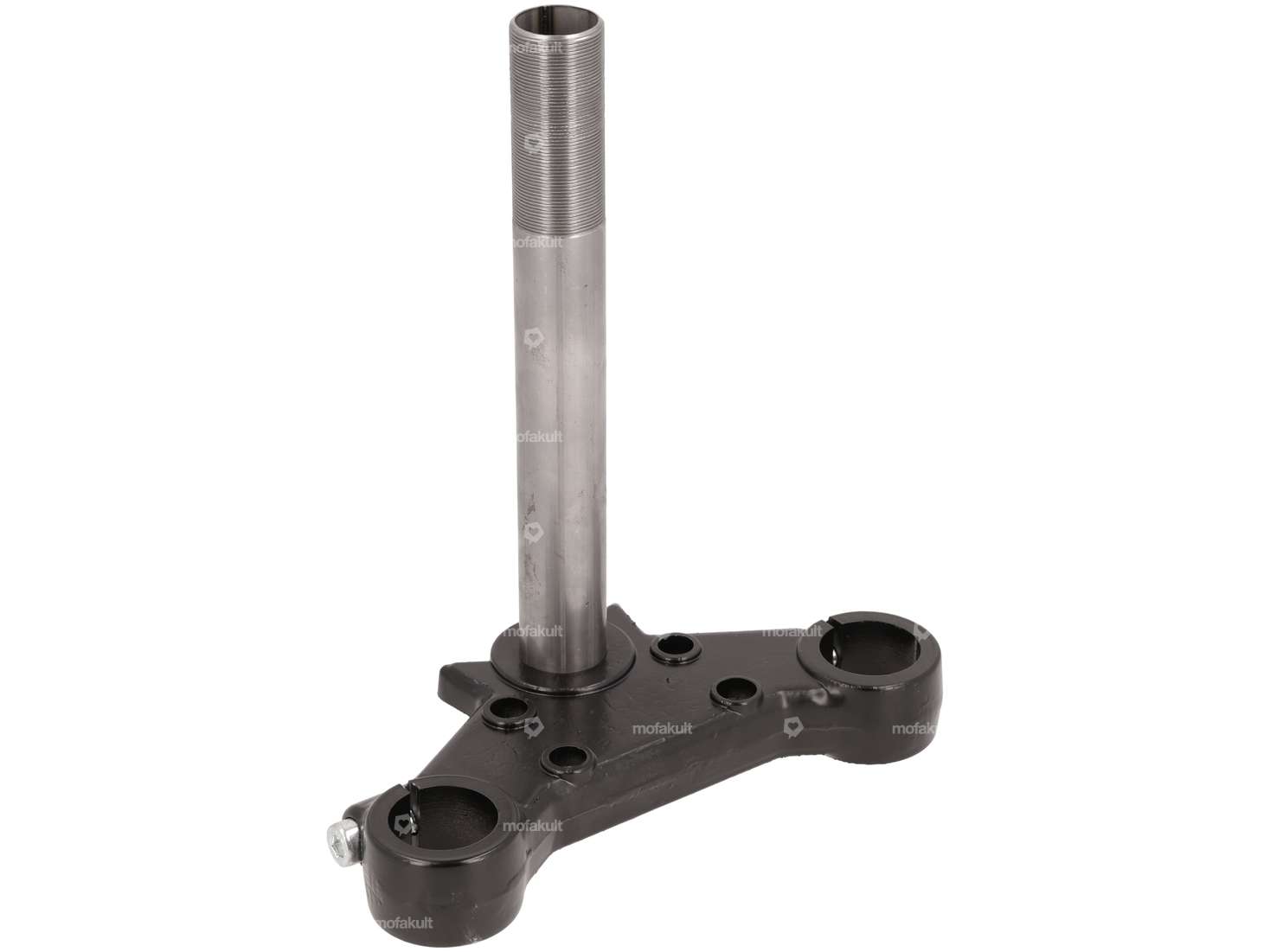

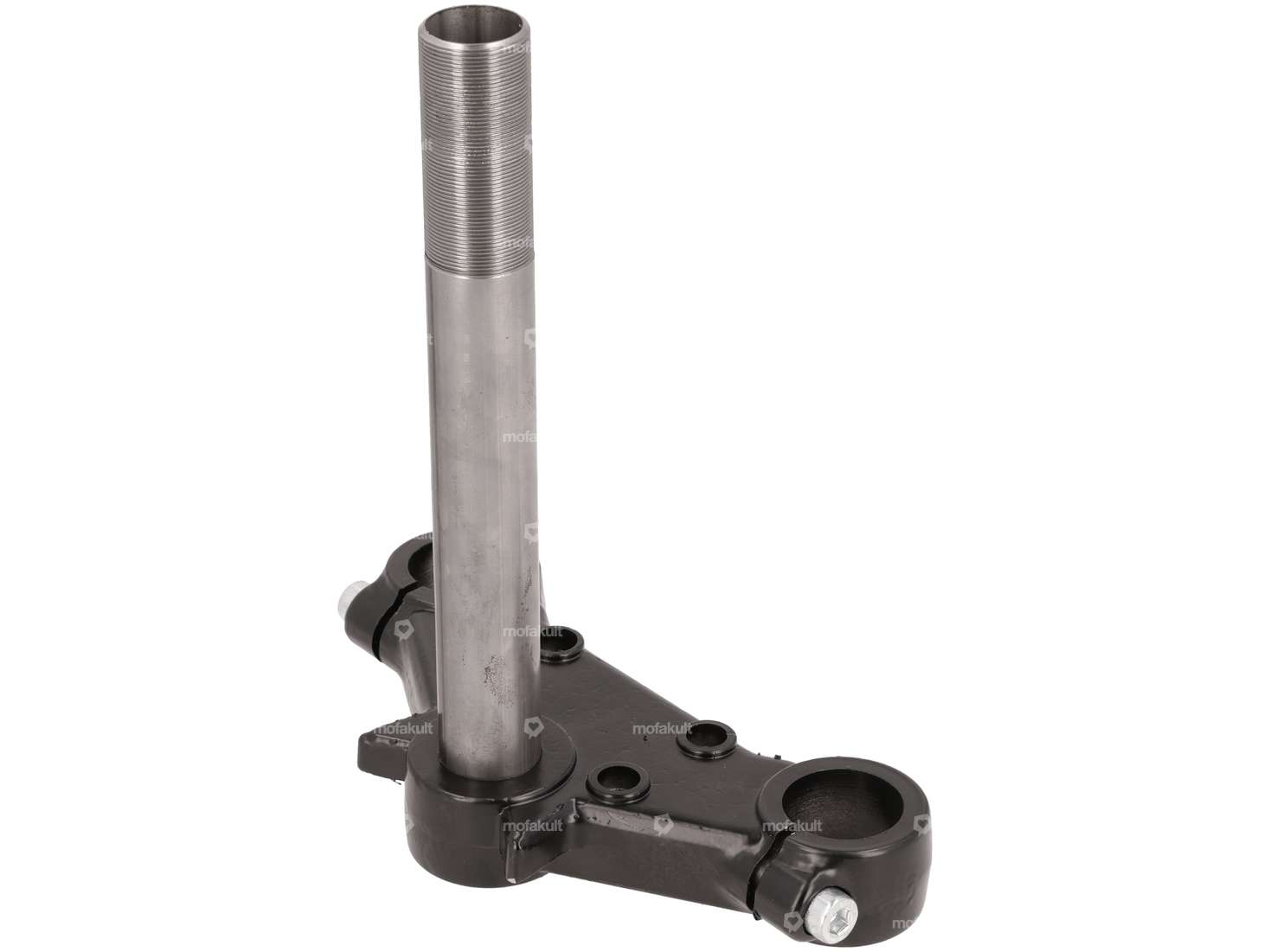

EBR lower triple tree Harry (Ø 30 mm spars) black | Puch

EUR 80.20

Incl. 21% VAT.

Product description

Lower fork plate suitable for EBR Harry telescopic forks. Not suitable for hydraulic EBR and Staco forks, as these have Ø28 mm stanchions.

Ø fork legs (will be clamped): 30.3 mm
Head tube length: 19.5 cm
Head tube thread: M26x1
Thread length: 5.5 cm

Made of cast aluminum, painted black.

Branded product from the Italian manufacturer EBR.

.
ManufacturerEWC
MaterialAluminum
Surfacevarnished
Thread typeMF26x1 (fine pitch thread)
Colorblack
Ø spars30 mm
Thread length55 mm
