Dell'Orto 18 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 153.90

Incl. 21% VAT.

Description

18 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main jet size: 85
Side jet size (idle jet): 50
Choked jet size: 55
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 130 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter18 mm
Total length71.5 mm
Width62 mm
Height125 mm
ManufacturerDell'Orto
Component group CarburetorCarburetor complete
MaterialAluminum
Colorblack
Carburetor typePHBG AS
Ø Internal connection24 mm
Mounting typePlug connection clamped
Ø without reducing sleeve26 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm, 5.3 mm
Mixed oil connectionNo
Area of applicationTuning
Vacuum connectionNo
Choke controlHand choke
Choke nozzle size55
Nozzle threadM5x0.8 (standard thread)
Nozzle block262AN
Nozzle size85
CamouflagedNo
Size of secondary nozzle50

Accessories & related products

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

For: Puch

10659

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Material: Aluminum · Camouflaged: No · Surface: polished · Color: Chrome · Area of application: Tuning · Hole spacing inlet: 38 mm · Ø inside: 18.8 mm · Ø External connection: 23.9 mm · Total height: 57 mm · Number of fixing points: 2 pcs · Height flange center hole: 45 mm · Total length: 40 mm · Mounting type: Screws

EUR 21.20

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos · Cilo · Hercules

10703

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Nipple shape: Ball · Ø Stranded wire: 1.2 mm · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 1650 mm · Number of components: 1 pcs · Area of application: Standard

EUR 2.85

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10902

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92

EUR 24.80

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10903

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110

EUR 24.80

swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

17985

swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100

EUR 24.80

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
angle-right

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos

22000

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120

EUR 4.15

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm
undefined

Universal

23762

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm

Manufacturer: Dell'Orto · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Nozzle type: Choke nozzle · Drive: Slot · Nozzle size: 60

EUR 12.90

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)
undefined

Universal

25363

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)

Manufacturer: 66HEROES · Camouflaged: No · Area of application: Tuning · Color: black · Filter type: Grille · Ø outside: 60 mm · Ø Internal connection: 28 mm · Total length: 70 mm · Mounting type: Plug connection clamped

EUR 22.40

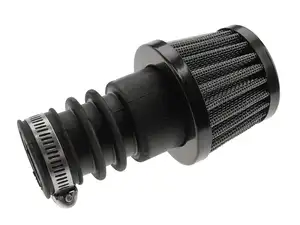

66HEROES Mushroom air filter grille 28 - 32 mm black
