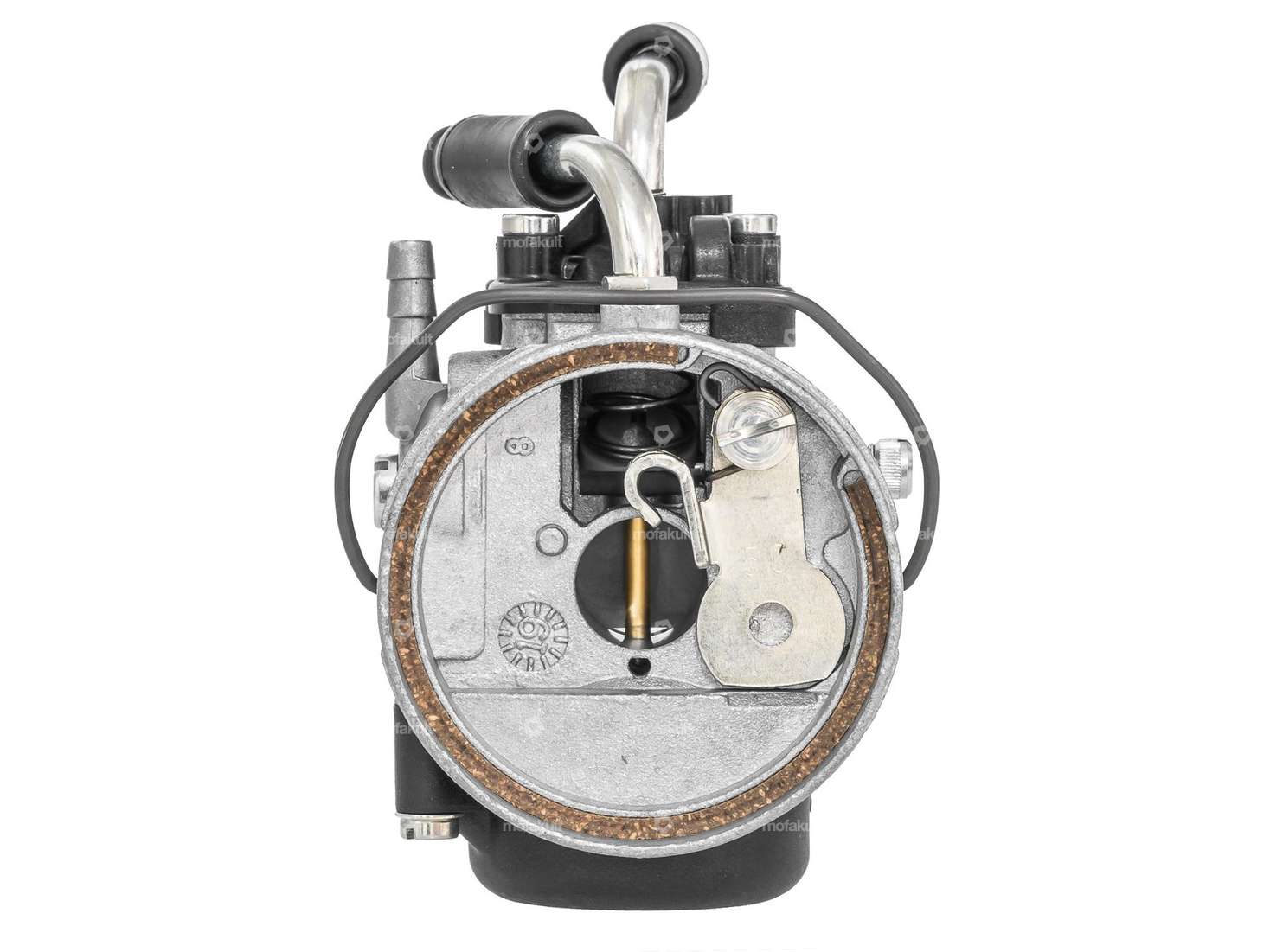

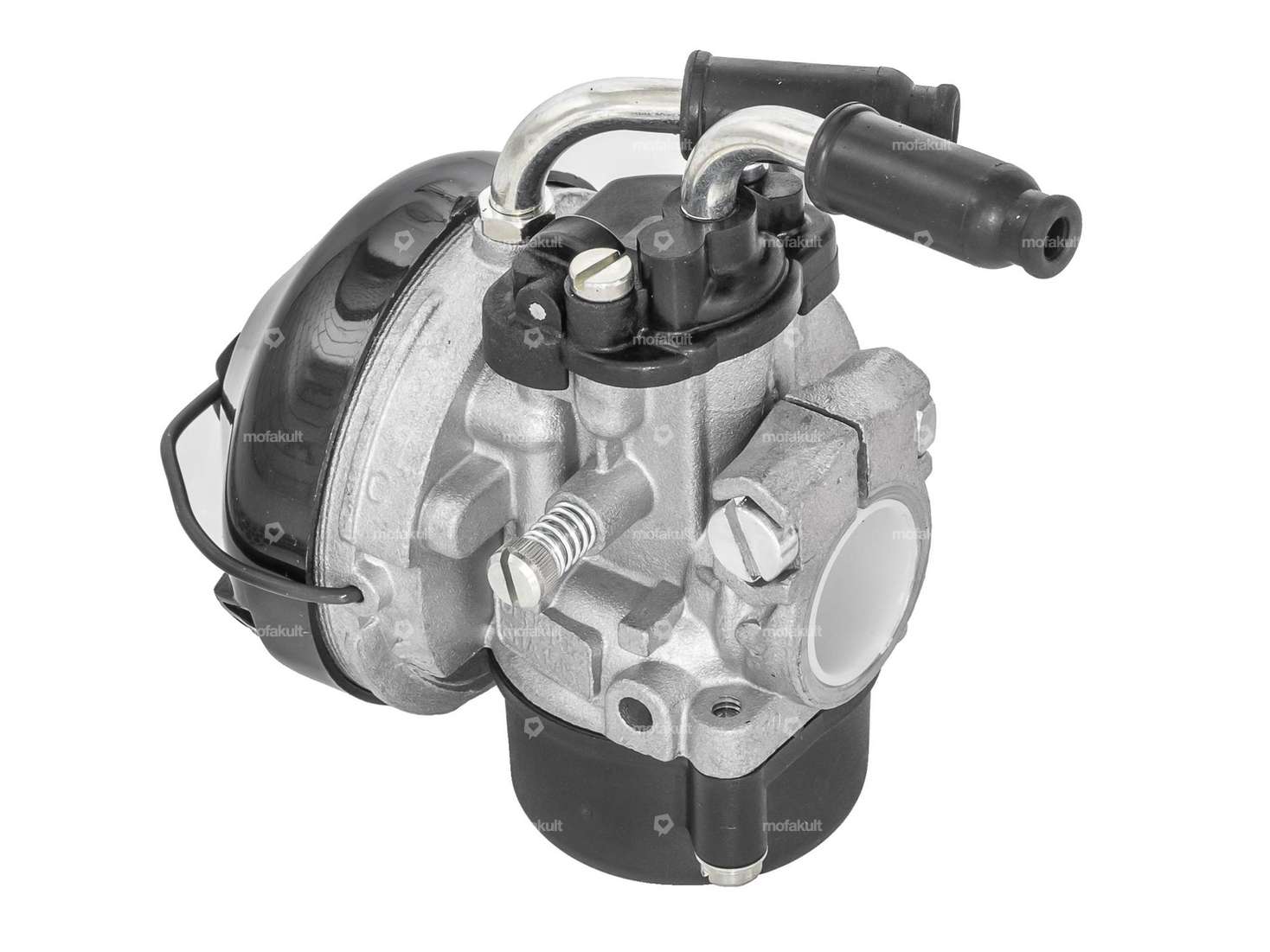

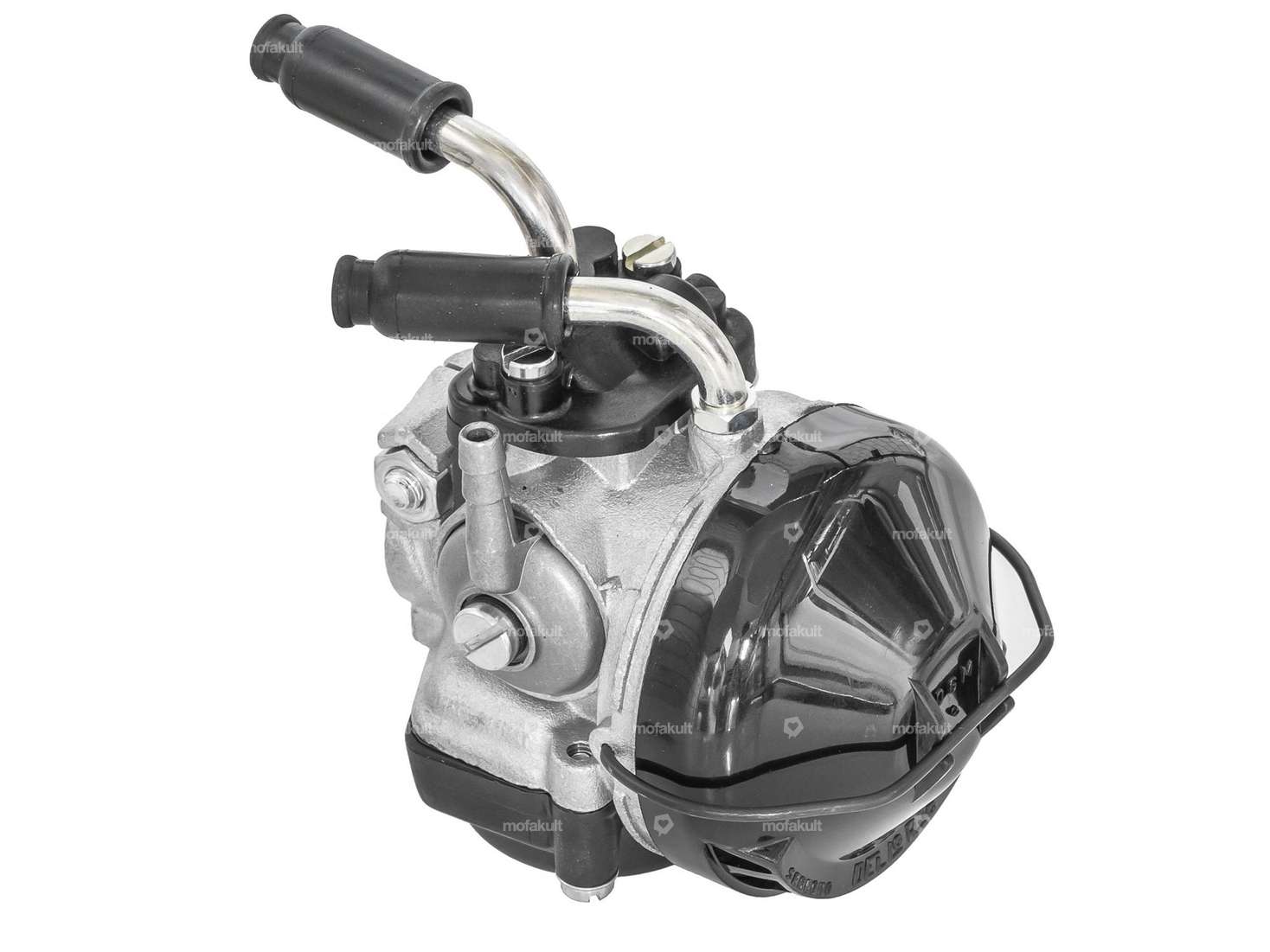

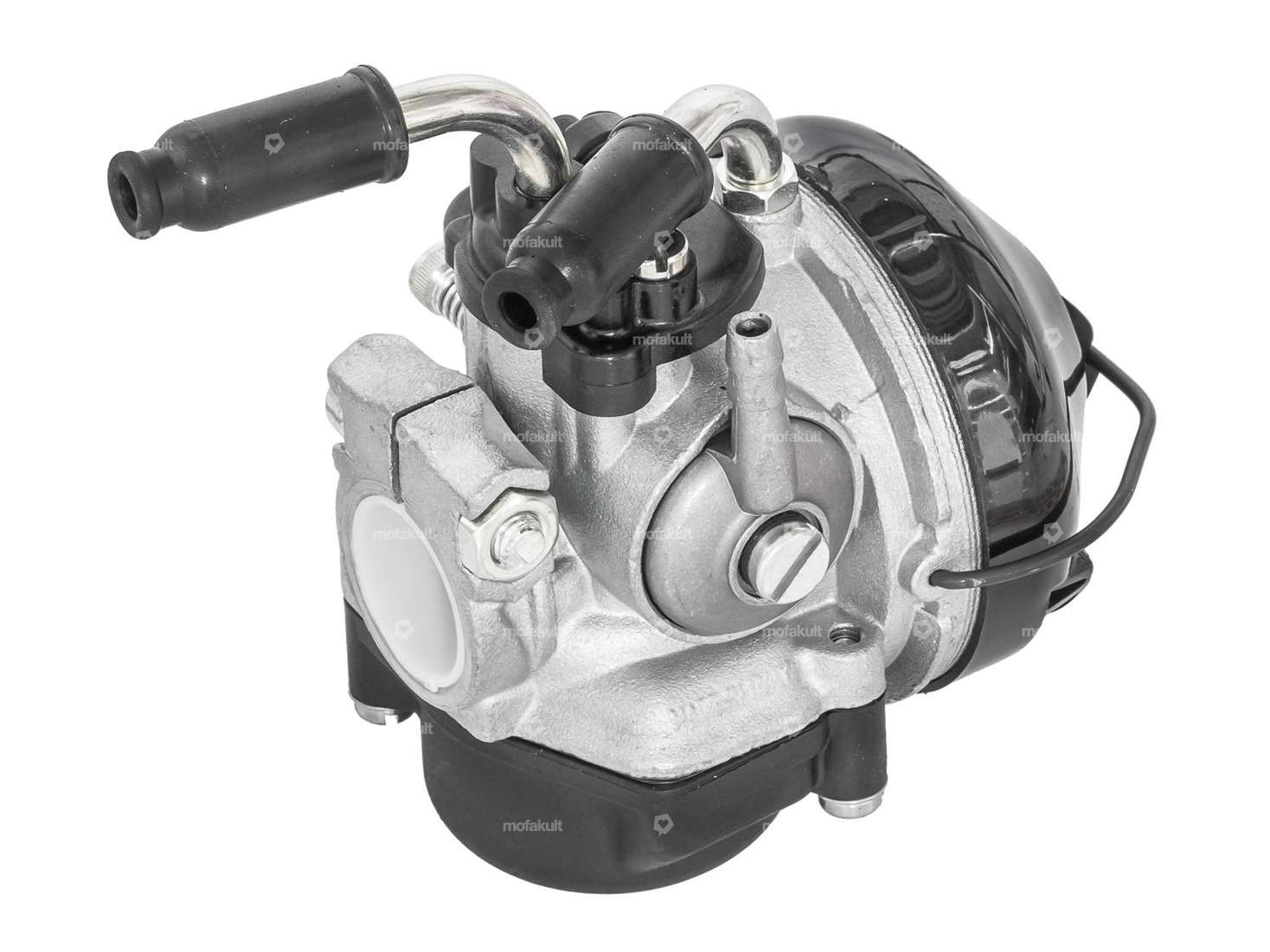

Dell'Orto 15/15 SHA carburetor cable choke

Home
| Motor
| Carburetor & intake system
| Carburetor
EUR 82.80

Incl. 21% VAT.

The Dell'Orto 15 / 15 C SHA racing carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

The integrated air filter screen can be easily removed for cleaning purposes.

The tuning carburetor has a cable-operated choke / start slide.

Carburetor type: SHA type 4 (SHA4)
Main thread size (M5): 68
Inlet connection diameter: 19 mm (resp. 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 15 mm
Ø passage on intake manifold side: 15 mm
Total height: 82 mm (without pipe bend)
Total length: 58 mm
Total width: 69 mm

For matching nozzles and alternative air filters, see accessories.

Quality product from the Italian manufacturer Dell'Orto.

Details

Width69 mm
ManufacturerDell'Orto
Component group CarburetorCarburetor complete
Area of applicationTuning
Nominal diameter15 mm
Carburetor typeSHA
Choke controlCable choke
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Ø without reducing sleeve21 mm
Ø Internal connection19 mm
Ø Inside entrance15 mm
Ø Output inside15 mm
Ø Air filter connection59 mm
Height82 mm
Total length58 mm
Mounting typePlug connection clamped
Nozzle size68

Suitable for the following models

Universal
Tomos
