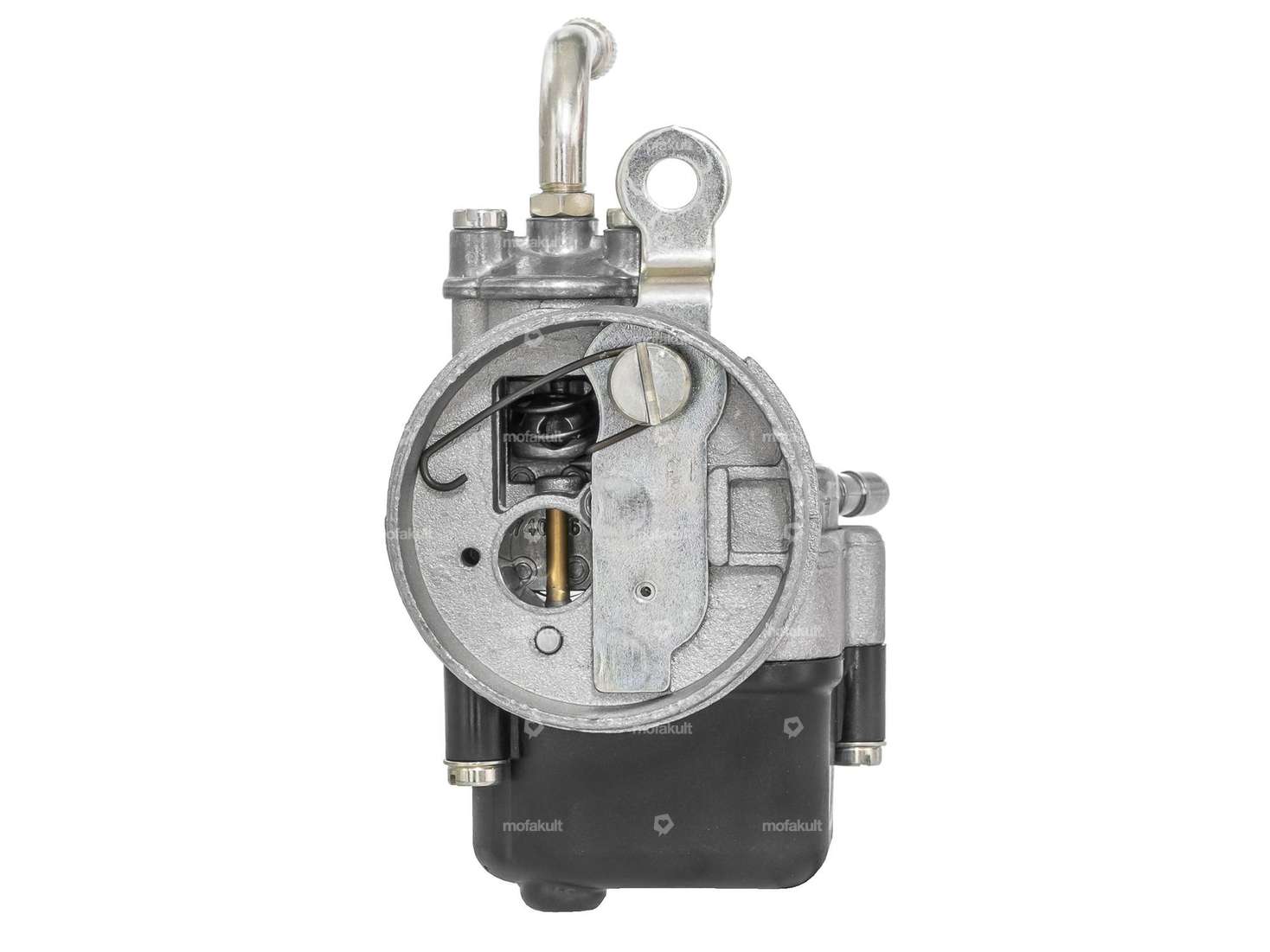

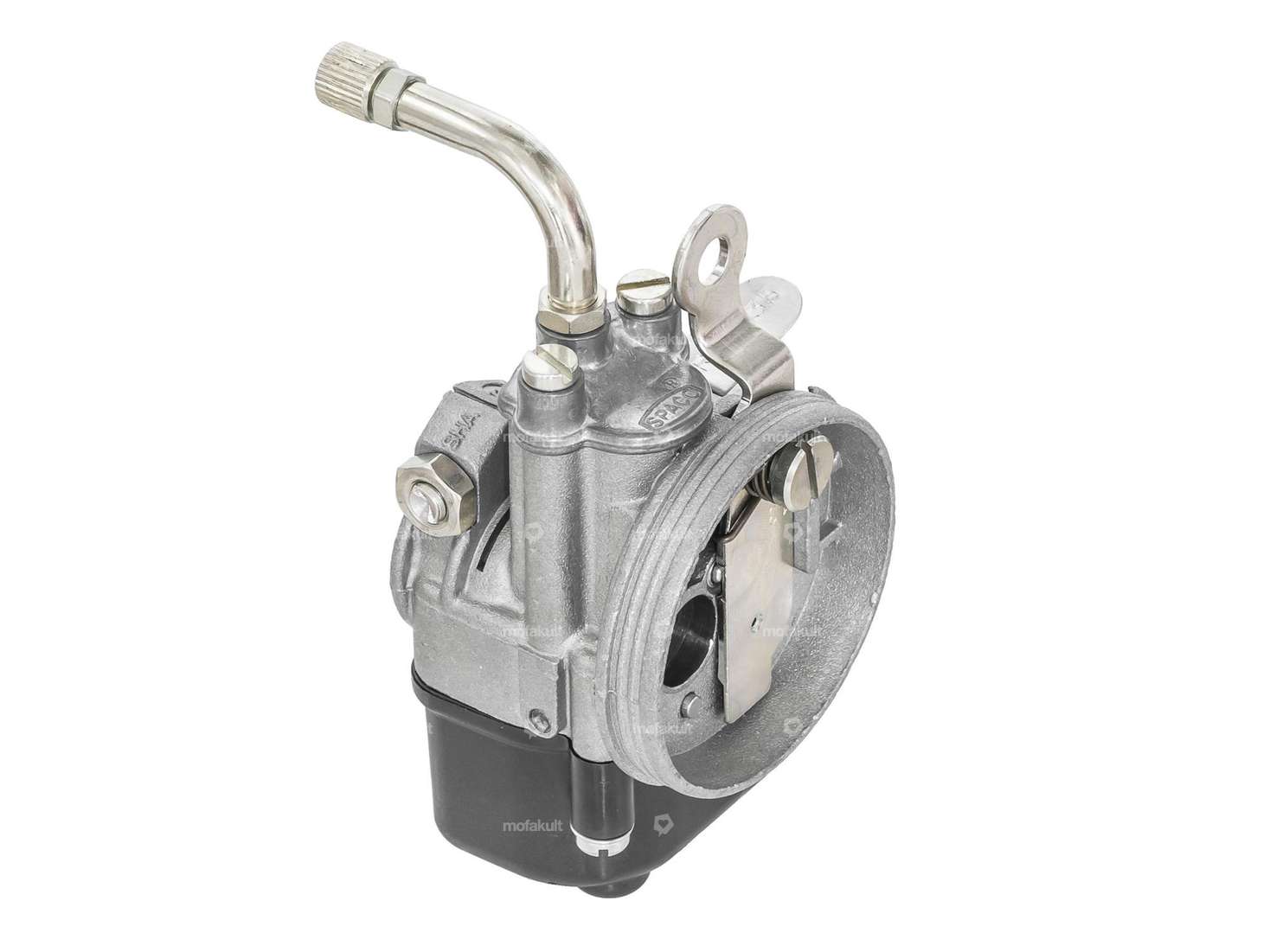

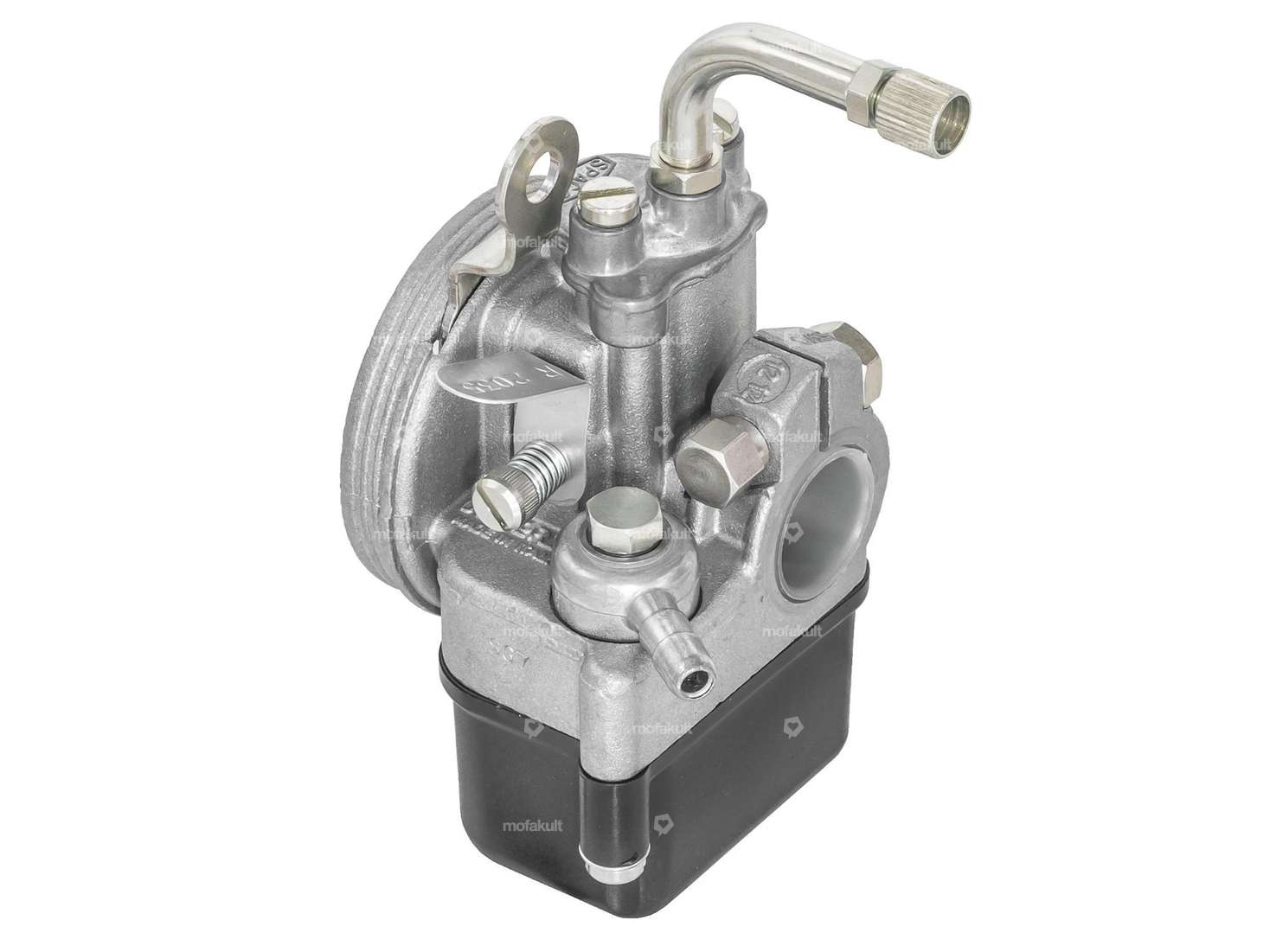

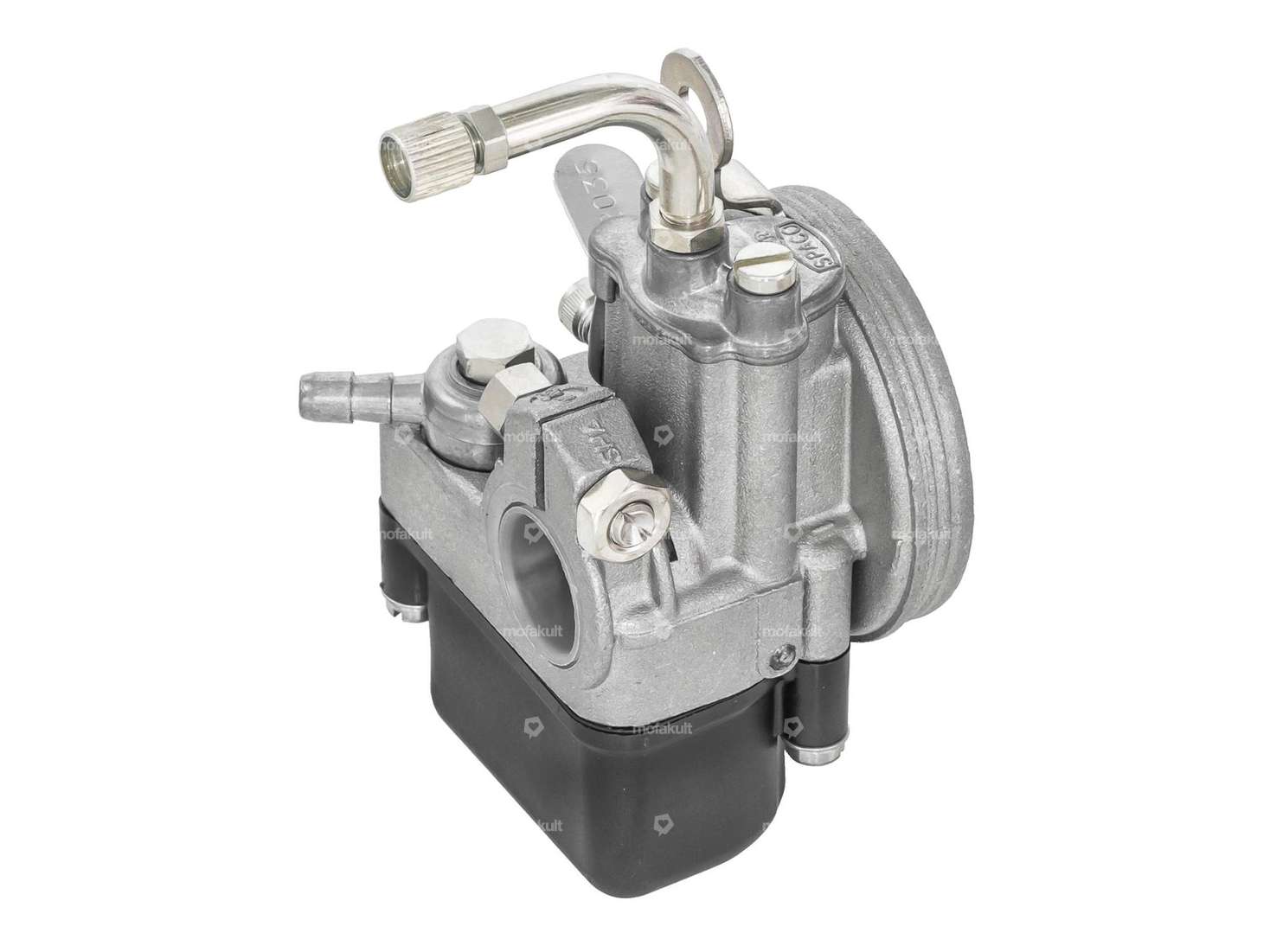

The Dell'Orto 12 / 12 SHA racing carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reduction sleeve)
Ø external air filter connection: 50.6 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 95 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
You can find matching nozzles and air filters in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
| Manufacturer | Dell'Orto |
| Mounting type | Plug connection clamped |
| Camouflaged | No |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Material | Aluminum |
| Carburetor type | SHA (Piaggio) |
| Color | black |
| Nominal diameter | 12 mm |
| Width | 60 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Height | 110 mm |
| Ø Air filter connection | 50.6 mm |
| Ø Internal connection | 16 mm |
| Ø fuel hose connection | 6 mm, 5.1 mm |
| Total length | 55 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Piaggio | Ciao - PX, C24 |
Ratings
Accessories & related products
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Total length: 8 mm · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70
EUR 25.00
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Plastic · Camouflaged: No · Area of application: Tuning · Ø outside: 53.2 mm · Filter type: Foam · Total length: 31.2 mm · Color: black · Height: 88.7 mm · Ø Internal connection: 51 mm · Width: 95 mm · Mounting type: Plug connection clamped
EUR 23.80
Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Ø outside: 51 mm · Total length: 26.5 mm · Manufacturer: Piaggio · Width: 94 mm · Material: Plastic · Area of application: Original · Area of application: Tuning · Color: black · Filter type: Grille · Height: 89 mm · Ø Internal connection: 49.7 mm · Mounting type: Plug connection clamped
EUR 19.00
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120 · Drive: Slot · Nozzle thread: M5x0.8 (standard thread)
EUR 4.20
swiing® revival nozzle set M5 (32 - 50) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50
EUR 25.00
Moped fans also bought
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Total length: 8 mm · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70
EUR 25.00
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Mounting type: Welded lug · Ø outside: 14 mm · Ø Internal connection: 22 mm · Ø Silencer: 70 mm · Total length: 690 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped
EUR 89.50
Not in stock
SITO exhaust Ø 20 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Mounting type: Welded lug · Ø Internal connection: 22.5 mm · Ø Silencer: 65 mm · Total length: 605 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 20 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped
EUR 77.50
Polini air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Camouflaged: No · Material: Plastic · Filter type: Foam · Color: black · Total length: 29 mm · Ø Internal connection: 50.6 mm · Height: 94.7 mm · Width: 98 mm · Ø outside: 53 mm · Mounting type: Plug connection clamped · Area of application: Tuning
EUR 17.80
Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Ø outside: 51 mm · Total length: 26.5 mm · Manufacturer: Piaggio · Width: 94 mm · Material: Plastic · Area of application: Original · Area of application: Tuning · Color: black · Filter type: Grille · Height: 89 mm · Ø Internal connection: 49.7 mm · Mounting type: Plug connection clamped
EUR 19.00

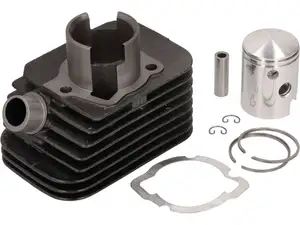

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
