Breaker | Solex 2200, 3800, 5800

EFFE screw-in capacitor | Solex 2200, 3800, 5800

Manufacturer: EFFE · Capacity: 0.32 µF · Mounting type: Tab for screwing · Connection type: Thread for screwing · Height: 31 mm · Ø mounting hole: 4.7 mm · Ø outside: 18 mm · Area of application: Original · Area of application: Standard · Thread type: M3x0.5 (standard thread) · SEV OEM number: 435 20 405 · SEV OEM number: 435 20 414 · Solex OEM number: 11 191 00 000

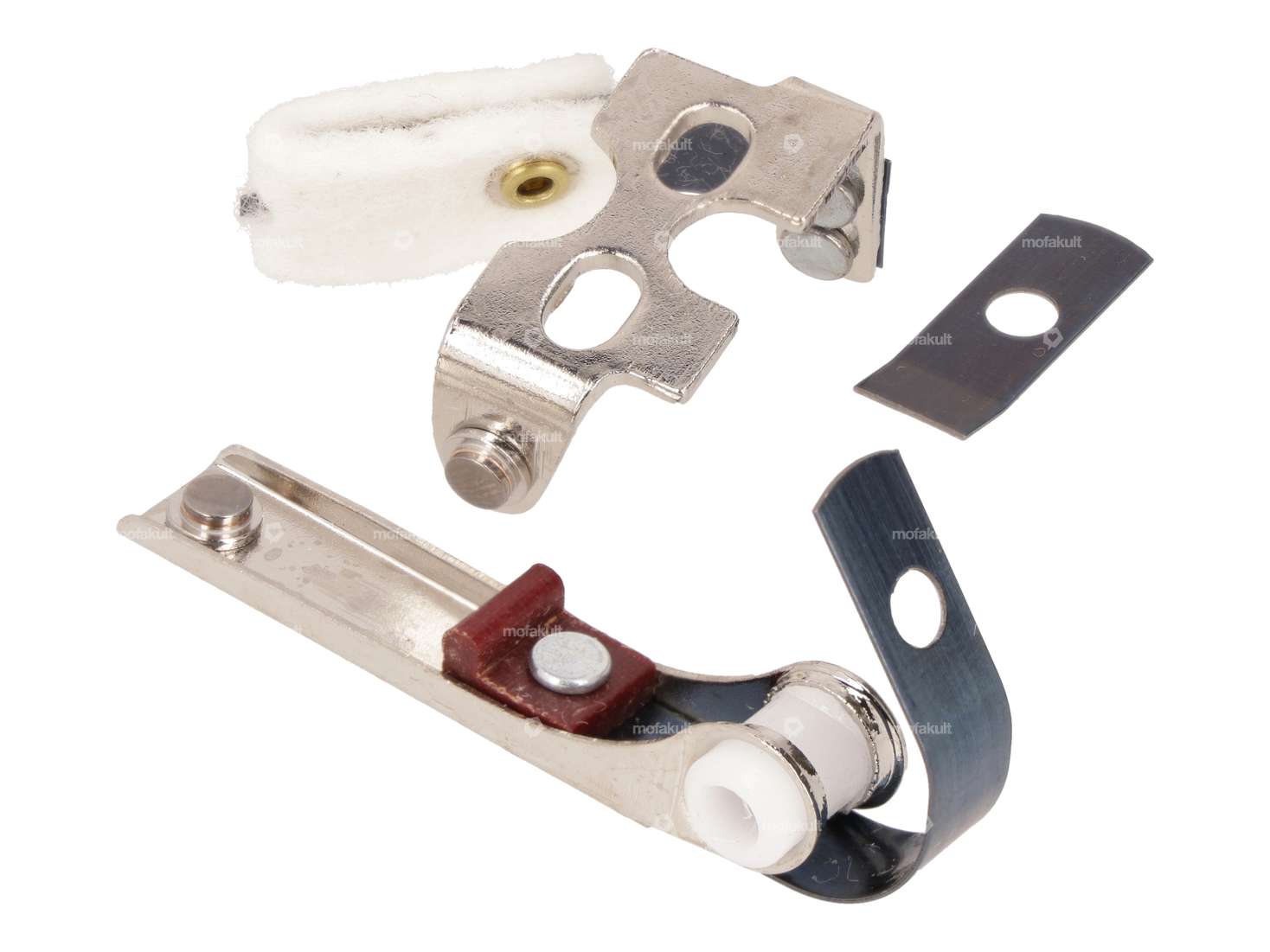

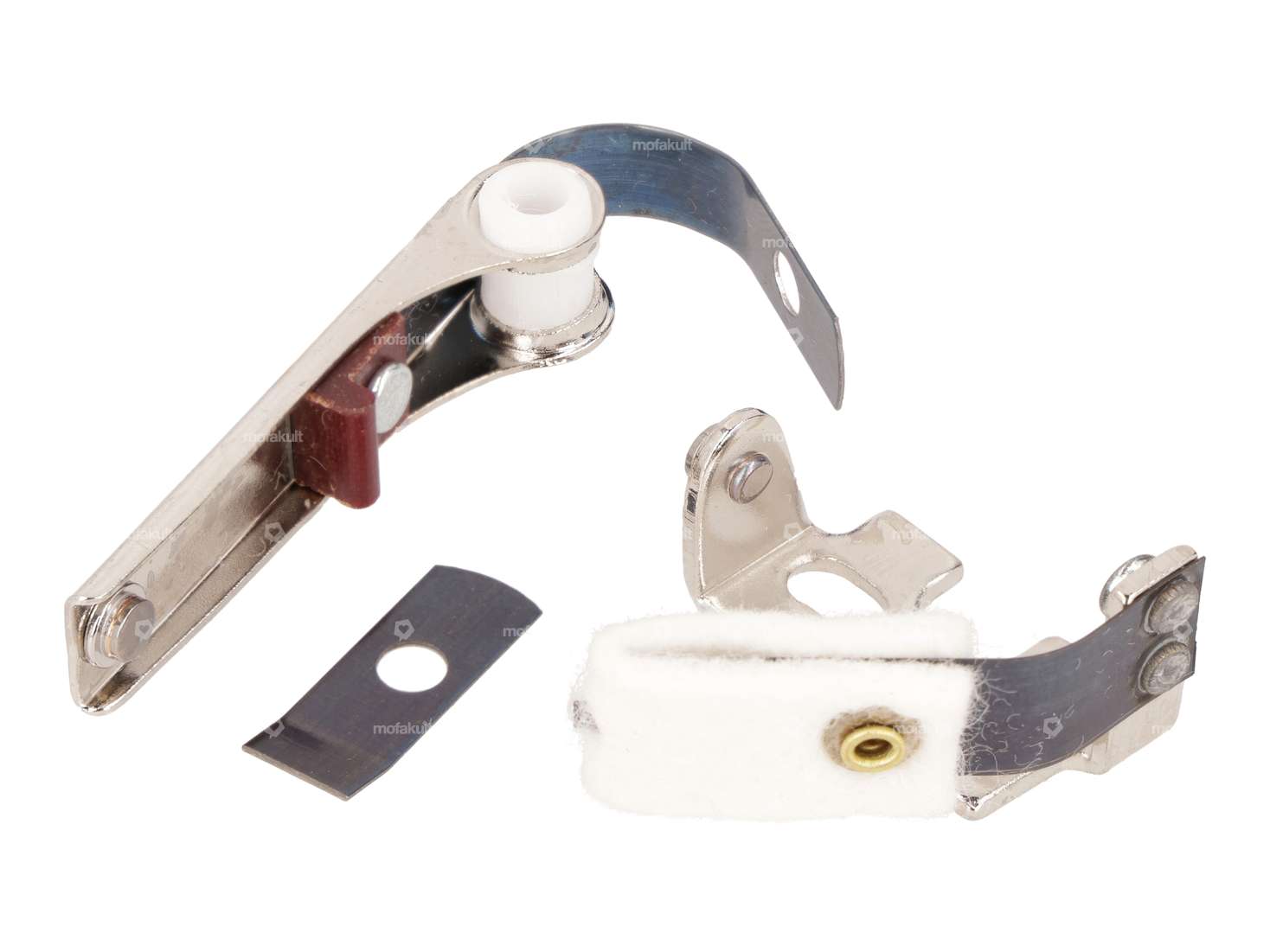

EFFE Breaker | Solex 2200, 3800, 5800

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø axle: 4 mm · Ø mounting hole: 4 mm · Area of application: Original · Area of application: Standard · Number of fixing points: 3 pcs · SEV OEM number: 77718 · SEV OEM number: 77823 · SEV OEM number: 998225 · Solex OEM number: 11 947 00 000

Capacitor for screwing | Solex 2000, 3800, 5800

Ø mounting hole: 4.7 mm · Mounting type: Tab for screwing · Connection type: Thread for screwing · Height: 31 mm · Thread type: M3x0.5 (standard thread) · Ø outside: 19 mm · Area of application: Original · Area of application: Standard · SEV OEM number: 435 20 405 · SEV OEM number: 435 20 414 · Solex OEM number: 11 191 00 000

Breaker | Solex 45, 330, 660, 1010, 1400

Material: Steel · Ø axle: 4 mm · Ø mounting hole: 4 mm · Cable available: No · Number of fixing points: 3 pcs · Area of application: Original · Area of application: Standard

BOSCH Breaker Grease Tube 45 ml

Manufacturer: BOSCH · Area of application: Chemistry · Area of application: Fat · Contents [ml]: 45 ml · Hazard warning: Harmful to aquatic organisms (with long-term effects)

Electronic ignition | Solex 2200 - 5000

Direction of rotation: right · Mounting type: Screws · Area of application: Tuning

Capacitor with cable | Solex 2200, 3800, 5800

Capacity: 0.22 µF · Ø outside: 18 mm · Height: 30.5 mm · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø mounting hole: 4.6 mm · Area of application: Standard · SEV OEM number: 35 20 414 · SEV OEM number: 435 20 405 · Solex OEM number: 11 191 00 000

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 50 mm · Mounting type: Union nut

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Place of use: Crankshaft · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Width: 7 mm · Ø inside: 17 mm · Ø outside: 33 mm

NSK 6201 ball bearing 12/32/10

Material: Steel · Surface: blank · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Stock number: 6201 · Bearing type: Shoulder bearing · Width: 10 mm · Ø inside: 12 mm · Ø outside: 32 mm · Area of application: Standard · Ball bearing closed: No

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Material: NBR · Place of use: Pinion shaft · Surface: coated · Temperature resistance (min.): -30 - 100 °C · Manufacturer: Sachs · Width: 3.5 mm · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Area of application: Standard · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

Ring air filter Solex

Surface: galvanized (blue) · Material: Steel · Height: 6.7 mm · Ø inside: 50 mm · Ø outside: 56 mm

EFFE Breaker | Solex 2200, 3800, 5800

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø axle: 4 mm · Ø mounting hole: 4 mm · Area of application: Original · Area of application: Standard · Number of fixing points: 3 pcs · SEV OEM number: 77718 · SEV OEM number: 77823 · SEV OEM number: 998225 · Solex OEM number: 11 947 00 000

Membrane Standard | Solex

Manufacturer: Made in Italy · Material: Rubber · Component group Carburetor: Adjusting screws, float, etc. · Color: black

Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Crankshaft stroke: 44 mm · Connecting rod length center-center: 86 mm · Total length of crankpin on clutch side: 97 mm · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Thread length: 7 mm · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Weight: 964 g · Number of gears: 2 pcs

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

2025 "Original" moped calendar

Manufacturer: Moped calendar · Material: Paper · Width: 600 mm · Height: 420 mm · DIN format: A2 · Vintage: 2025
