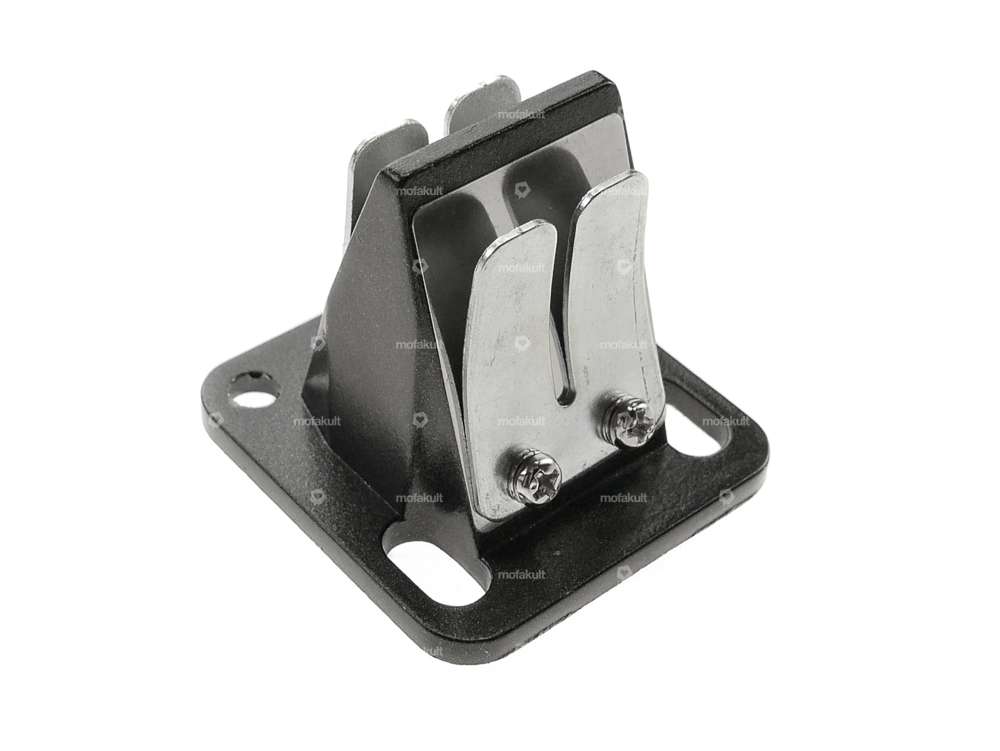

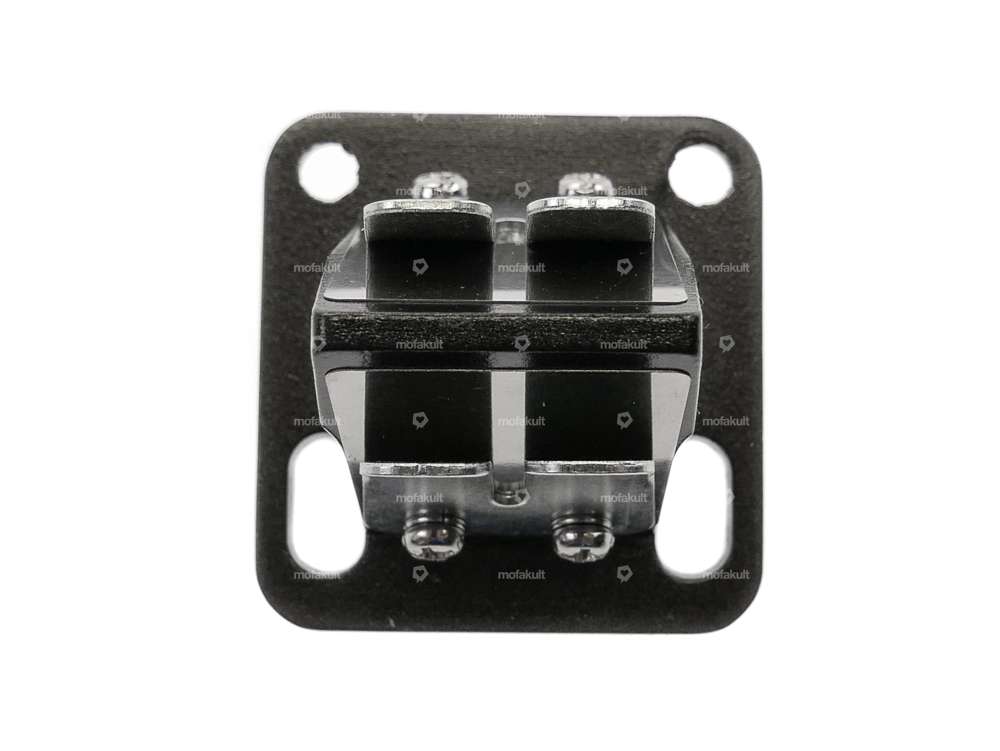

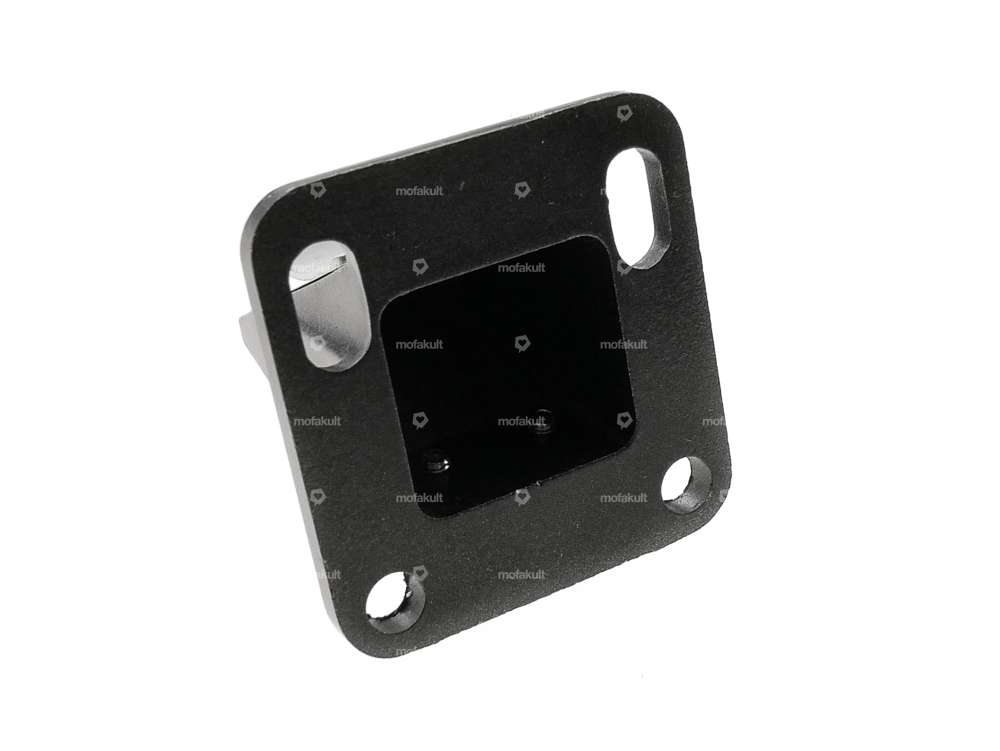

Athena 2-folding diaphragm Puch / Sachs

Athena 45 mm cylinder kit incl. diaphragm | Puch

Manufacturer: Athena · Camouflaged: No · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Hole spacing inlet: 31.5 mm · Ø cylinder neck: 47.8 mm · Ø Inlet inside: 20.5 mm · Ø outlet inside: 24 mm · Ø piston pin (B): 12 mm · Inlet window: 22 x 27.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 42 mm · Number of fixing points: 4 pcs · Decompressor: No · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Outlet type: straight · Thread outlet: M6x1 (standard thread)

Athena 38 mm cylinder kit incl. diaphragm | Puch

Manufacturer: Athena · Camouflaged: No · Material: Aluminum · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Surface: sandblasted · Number of fixing points: 4 pcs · Thread inlet: M5x0.8 (standard thread) · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Tuning

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508

Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Ø outlet inside: 19.4 mm · Number of fixing points: 4 pcs · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 50 mm · Decompressor: M10x1.5 · Ø piston pin (B): 12 mm · Hole pattern [mm]: 56/60 x 56 · Outlet type: clamped · Outlet type: straight · Thread outlet: M8x1.25 (standard thread) · Area of application: Tuning · Hole spacing inlet: 32.5 mm

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm

Cable set cut with adjusting screws | Puch Maxi

Manufacturer: Made in Germany · Material: Brass · Material: Steel · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Outer shell length: 1120 mm · Outer shell length: 1150 mm · Outer shell length: 1740 mm · Color: black · Total length: 1200 mm · Total length: 1250 mm · Total length: 1450 mm · Total length: 1830 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 98 g

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Mounting type: Screws · Thickness: 0.5 mm · Hole pattern [mm]: 33 x 32 mm · Number of fixing points: 4 pcs

DMP 45 mm cylinder kit incl. diaphragm | Puch

Manufacturer: DMP · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Ø mounting hole: 6.7 mm · Ø inside: 22 mm · Thickness: 2 mm · Place of use: Outlet · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm

swiing® ingenious piston 45 mm | Puch

Manufacturer: swiing® ingenious parts · Nominal diameter: 45 mm · Ø outside piston (A): 44.95 mm · Compression height (C): 22.4 mm · Curvature (D): 4.6 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Thick piston ring: 1.9 mm · Piston weight: 91 g

Athena piston 38 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 76 g

Freewheel 20 teeth

Chain pitch: 1/2" x 1/8" · Material: Steel · Thread type: FG34.8 (1.37" 24G) · Number of teeth: 20 pcs

NGK LB01F Spark plug cap / 1 kΩ suppressed

Manufacturer: NGK · Material: Hard plastic · Color: black · Ø cable: 7 mm · Ø cable: 8 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector
