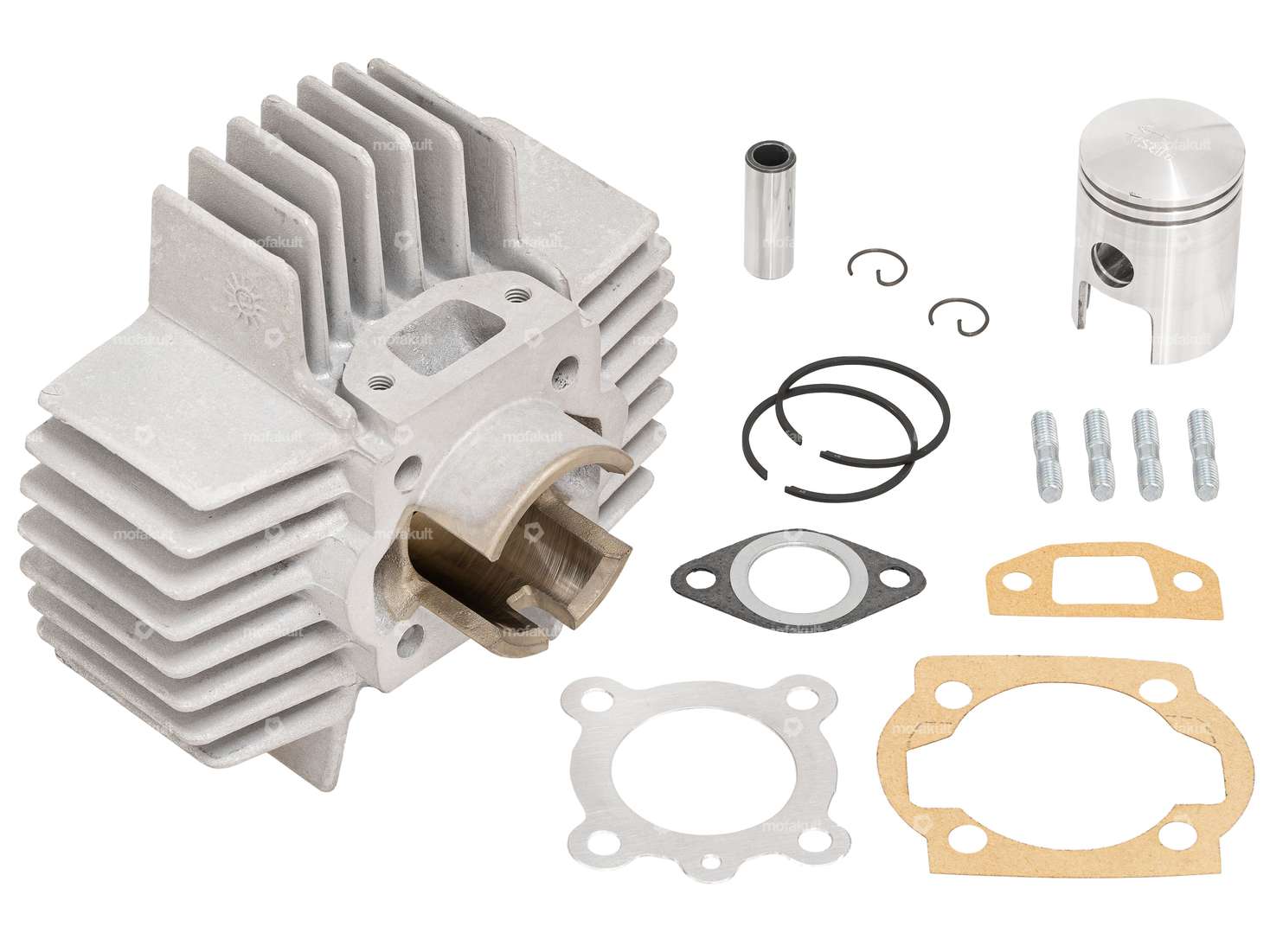

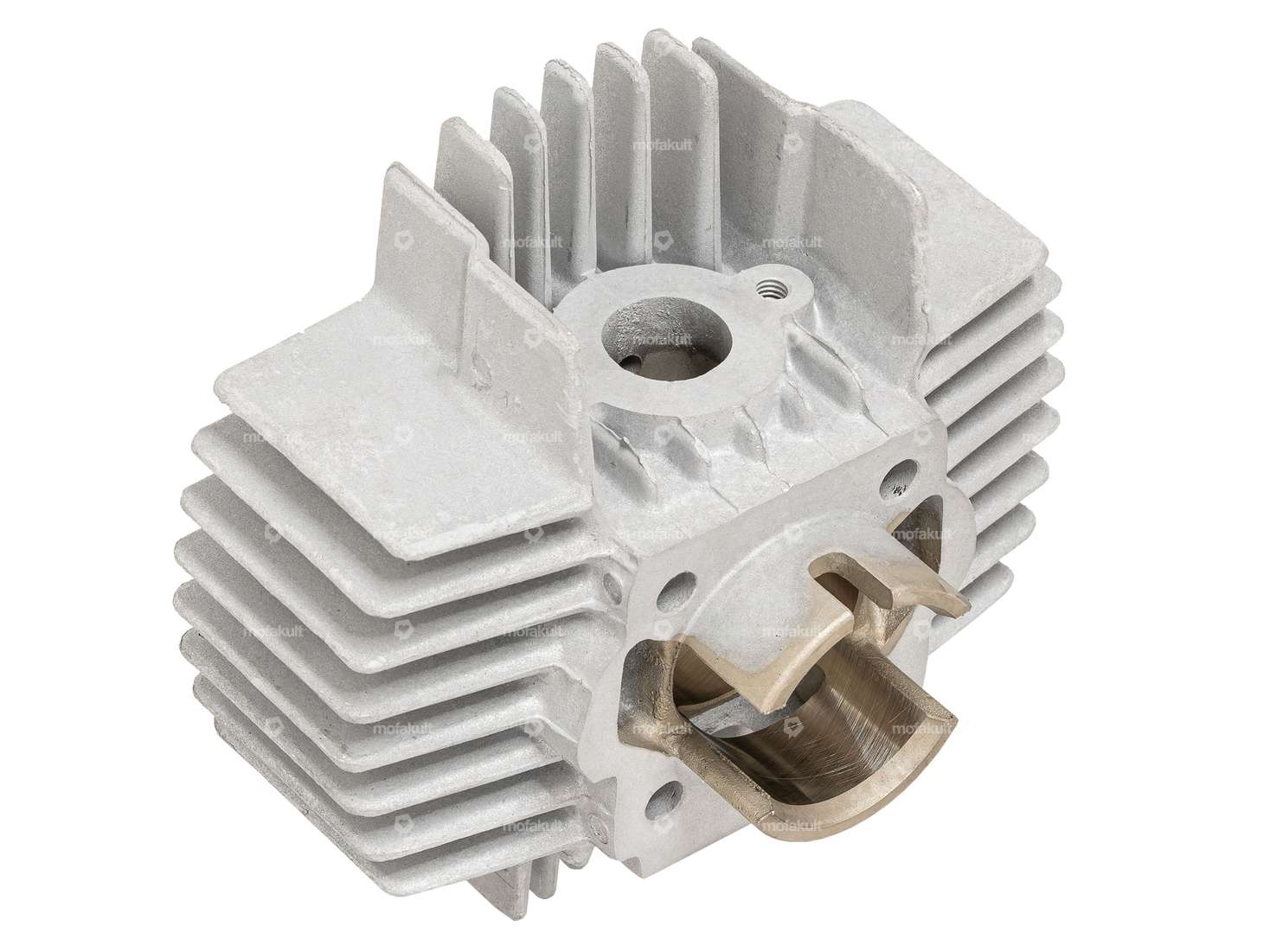

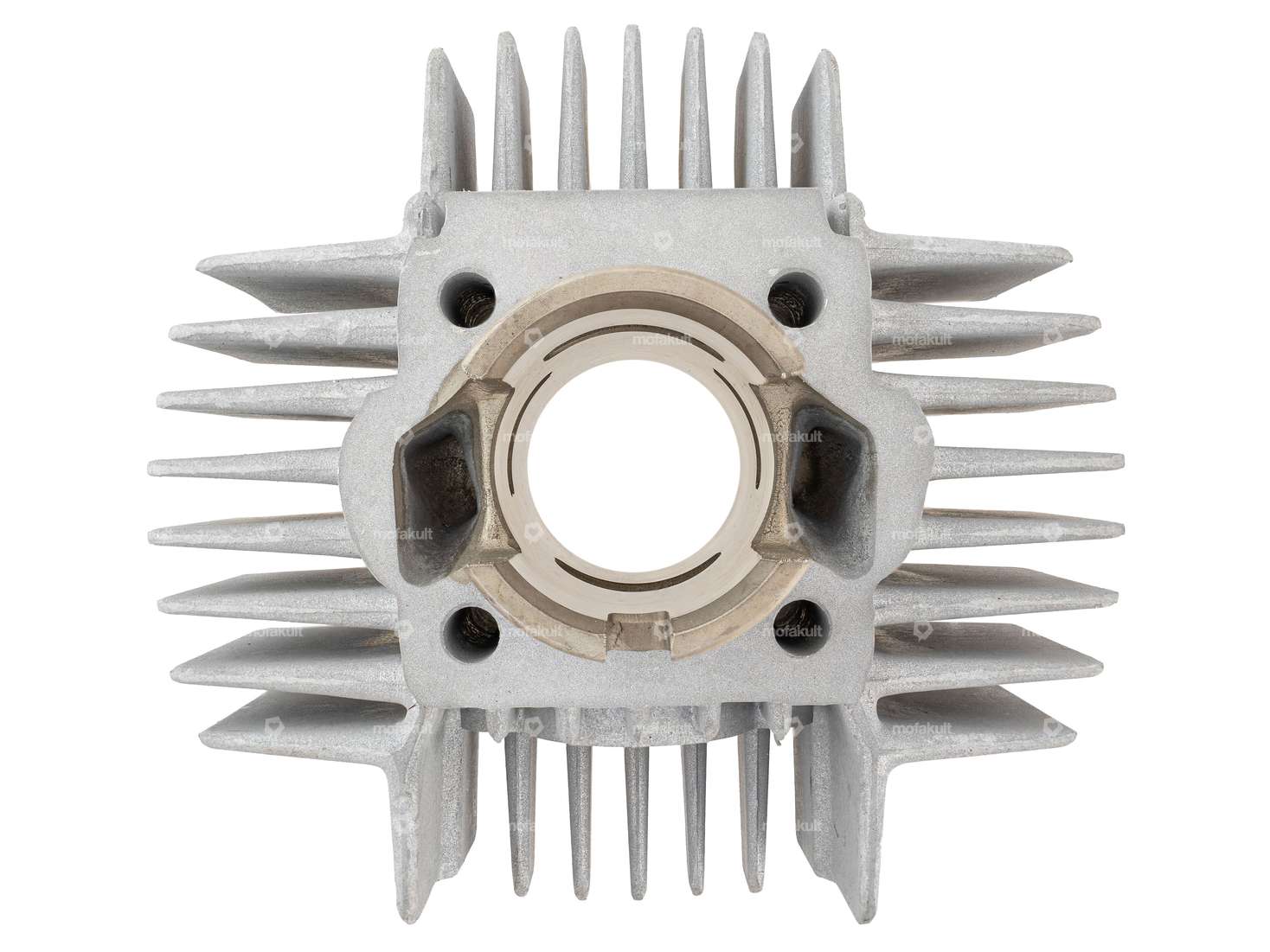

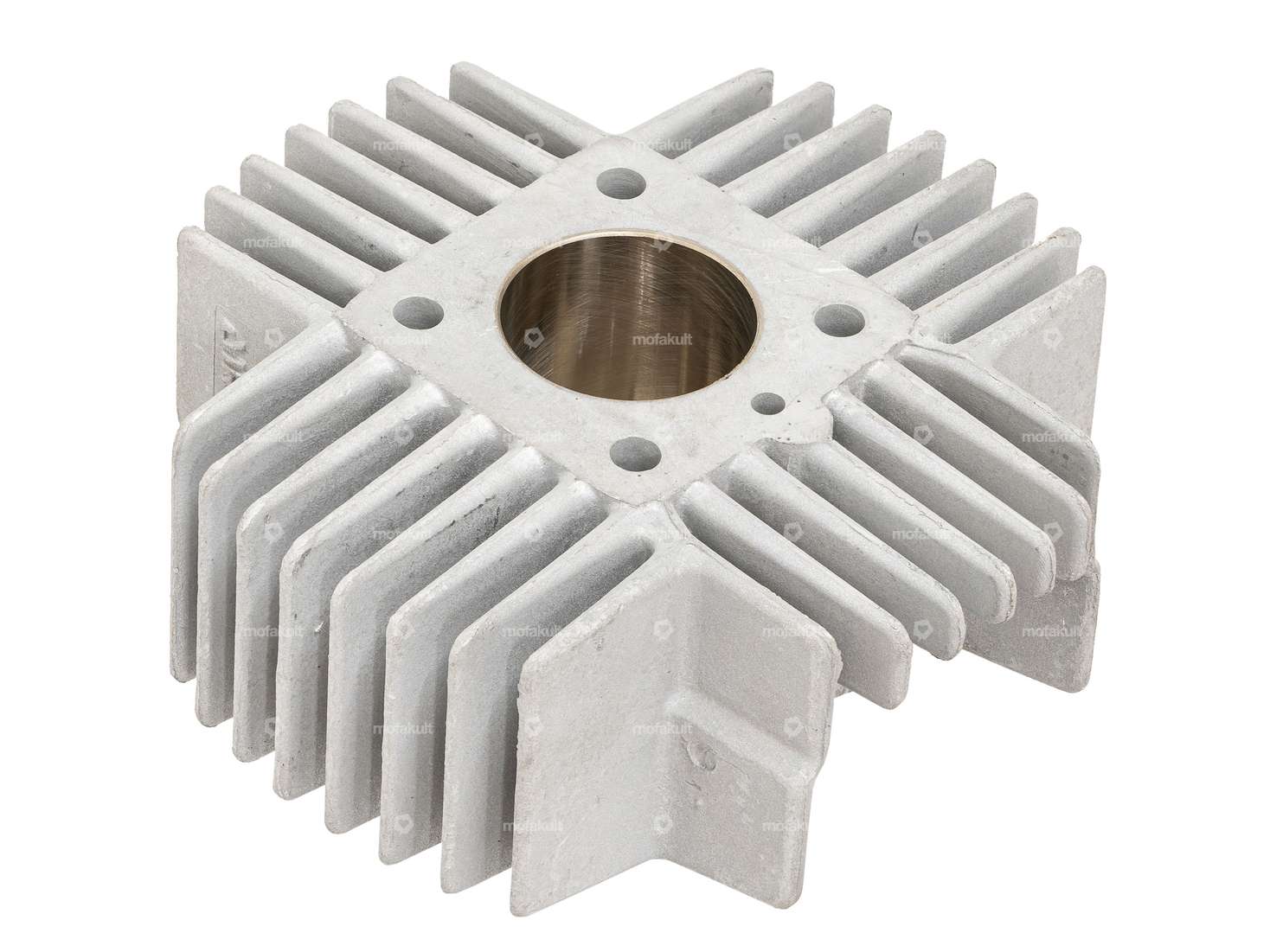

Airsal 38 mm cylinder kit (large ribs) fast version | Puch

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Ø cylinder: 38 mm · Surface: sandblasted · Total length: 135 mm · Number of fixing points: 4 pcs · Width: 125 mm · Height: 55 mm · Candle thread: short · Decompressor: No · Hole pattern [mm]: 44 x 44 · Area of application: Standard

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Diameter: 5.95 mm · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

Airsal piston 38 mm | Puch

Manufacturer: Airsal · Ø outside piston (A): 37.95 mm · Compression height (C): 22.3 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm · Ø piston pin (B): 12 mm

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Airsal gasket set 38 mm | Puch

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Tuning

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Airsal piston ring 38x1.5 mm hard chrome-plated | Puch

Manufacturer: Airsal · Surface: hard chrome plated · Nominal diameter: 38 mm · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Color: silver · Ø mounting frame: 31 mm · Surface: galvanized (blue) · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread) · Ø outside: 41 mm

GPO chain tensioner | Puch Maxi S

Manufacturer: GPO · Material: Plastic · Material: Steel · Number of teeth: 10 pcs · Color: black · Color: silver · Surface: galvanized (blue) · Total length: 175 mm · Ø outside sprocket: 36 mm · Number of fixing points: 1 pcs · Thread type: M6x1 (standard thread)

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Ø cylinder: 38 mm · Surface: sandblasted · Total length: 135 mm · Number of fixing points: 4 pcs · Width: 125 mm · Height: 55 mm · Candle thread: short · Decompressor: No · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Diameter: 5.95 mm · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Surface: galvanized (blue) · Nipple length: 5 mm · Area of application: Standard

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Cable set cut black high handlebars (1A quality) | Puch Maxi

Manufacturer: Made in Germany · Material: Steel · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Quantity: 4 pcs · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Color: black · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 1600 mm · Total length: 1650 mm · Total length: 1850 mm · Total length: 2200 mm

swiing® revival 12 mm carburetor "original" | Puch

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Color: gray · Total length: 65 mm · Nozzle size: 52 · Ø Inside entrance: 12 mm · Width: 50 mm · Ø Output inside: 12 mm · Height: 108 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Mounting type: Plug connection clamped · Choke control: Hand choke · Area of application: Standard · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0
